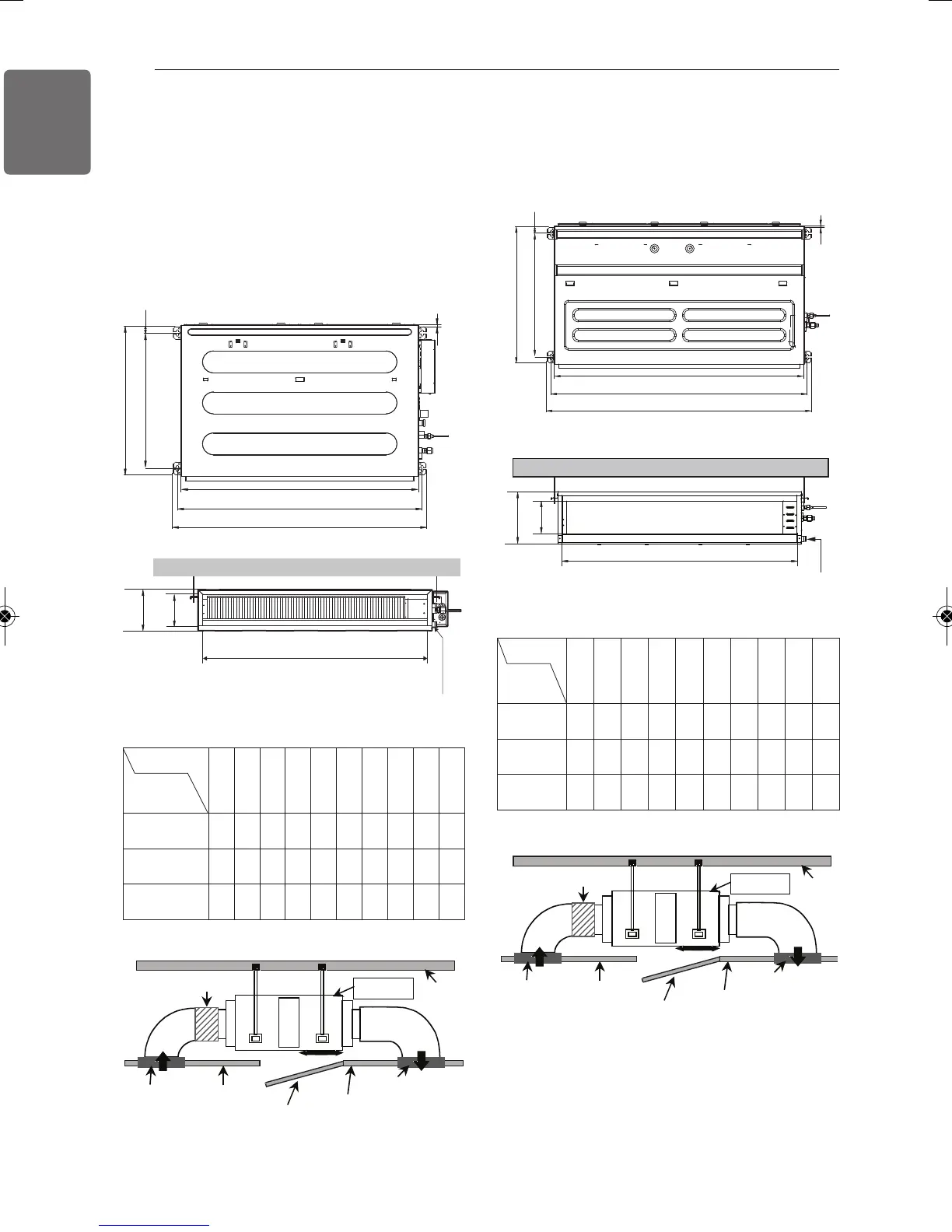

THE INDOOR UNIT INSTALLATION
Position of suspension Bolt
- Apply a joint-canvas between the unit and
duct to absorb unnecessary vibration.
- Apply a filter Accessory at air return hole.
Ceiling Concealed Duct – Low Static
Ceiling Concealed Duct – Mid Static
THE INDOOR UNIT INSTALLATION
C
E
G
D
F
I
A
J
B
H
Drainage hole
C
E
G
D
A
J
B
Drainage hole
F
I
H
Inspection Port
Indoor Unit
Ceiling
Canvas Duct
Air Intake Port
Ceiling Board
Ceiling Board
Air Discharge Port
Discharge
Flexible Duct
Intake
Duct
Inspection Port
Indoor Unit
Ceiling
Canvas Duct
Air Intake Port
Ceiling Board
Ceiling Board
Air Discharge Port
Discharge
Flexible Duct
Intake
Duct
Dim ension
Capacity
(kBtu/h
)
A B C D E F G H I J
9 733 772 628 700 36 190 20 660 155 700
12/18 933 972 628 700 36 190 20 860 155 900
24 1133 1172 628 700 36 190 20 1060 155 1100
(Unit: mm)
Dimension
Capacity
(kBtu/h)
A B C D E F G H I J
18 / 24 / 30 933.4 971.6 619.2 700 30 270 15.2 858 201.4 900
36 / 42 1283.4 1321.6 619.2 689.6 30 270 15.2 1208 201.4 1250
48 / 60 1283.4 1321.6 619.2 689.6 30 360 15.2 1208 291.4 1250
(Unit: mm)
