DRYER
DISPLAY PWB

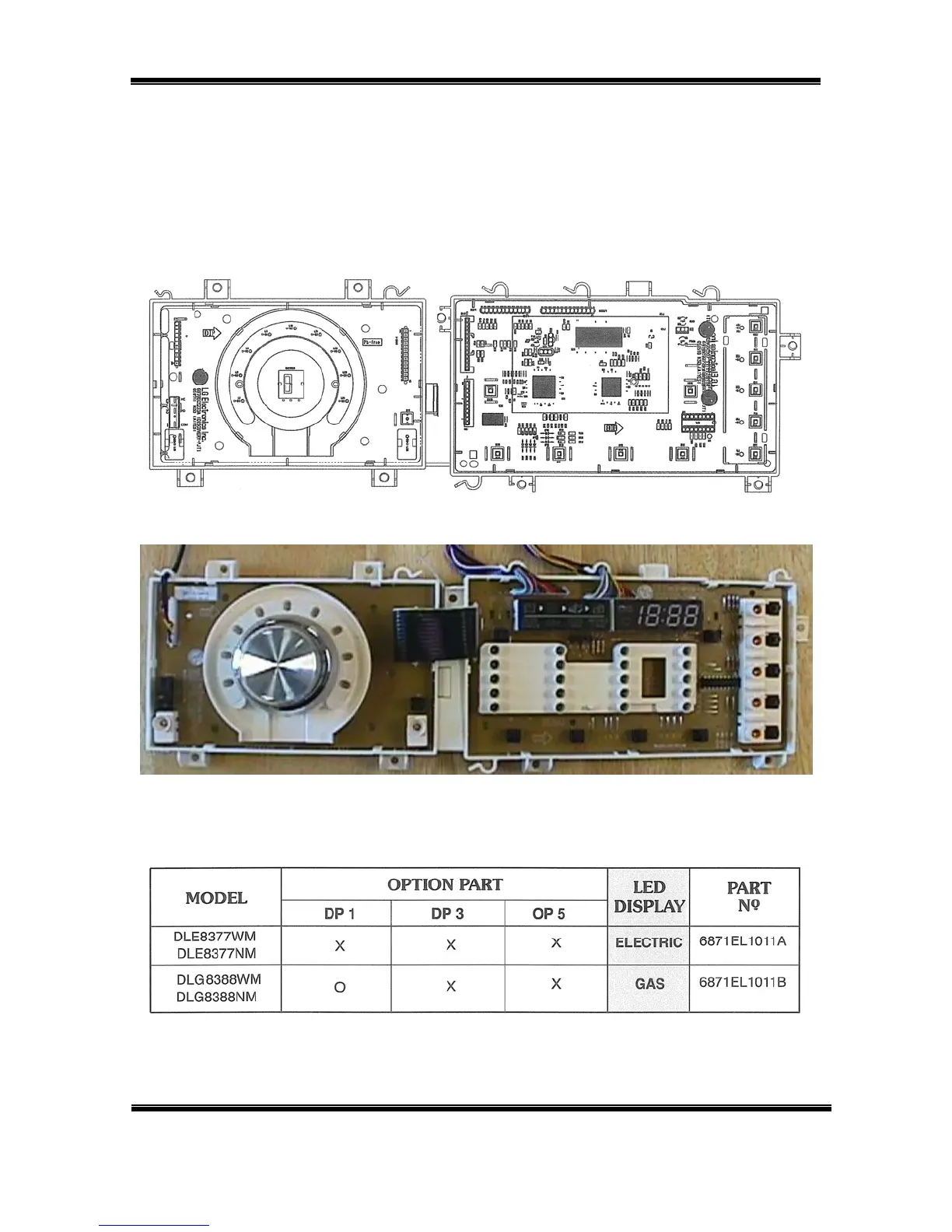

The display board is actually two boards connected by a ribbon cable. One board
holds the selector knob and cycle indicator LEDs. The other holds the LCD
display and adjustment buttons to override the pre-set cycle selections.
The DLE7177WM board is shown below. Other models vary slightly.
The gas and electric models have a different display board.
DLE8377xM/DLG8388xM
DLE7177WM/DLE7188WM Page 26 of 60 TRAINING MANUAL
