DRYER
DRUM LAMP
The drum light can usually be changed without a major disassembly, unless the
bulb is frozen in the socket. If the bulb can’t be changed using this procedure,
you’ll have to remove the front cover and the lampholder to get to the socket.

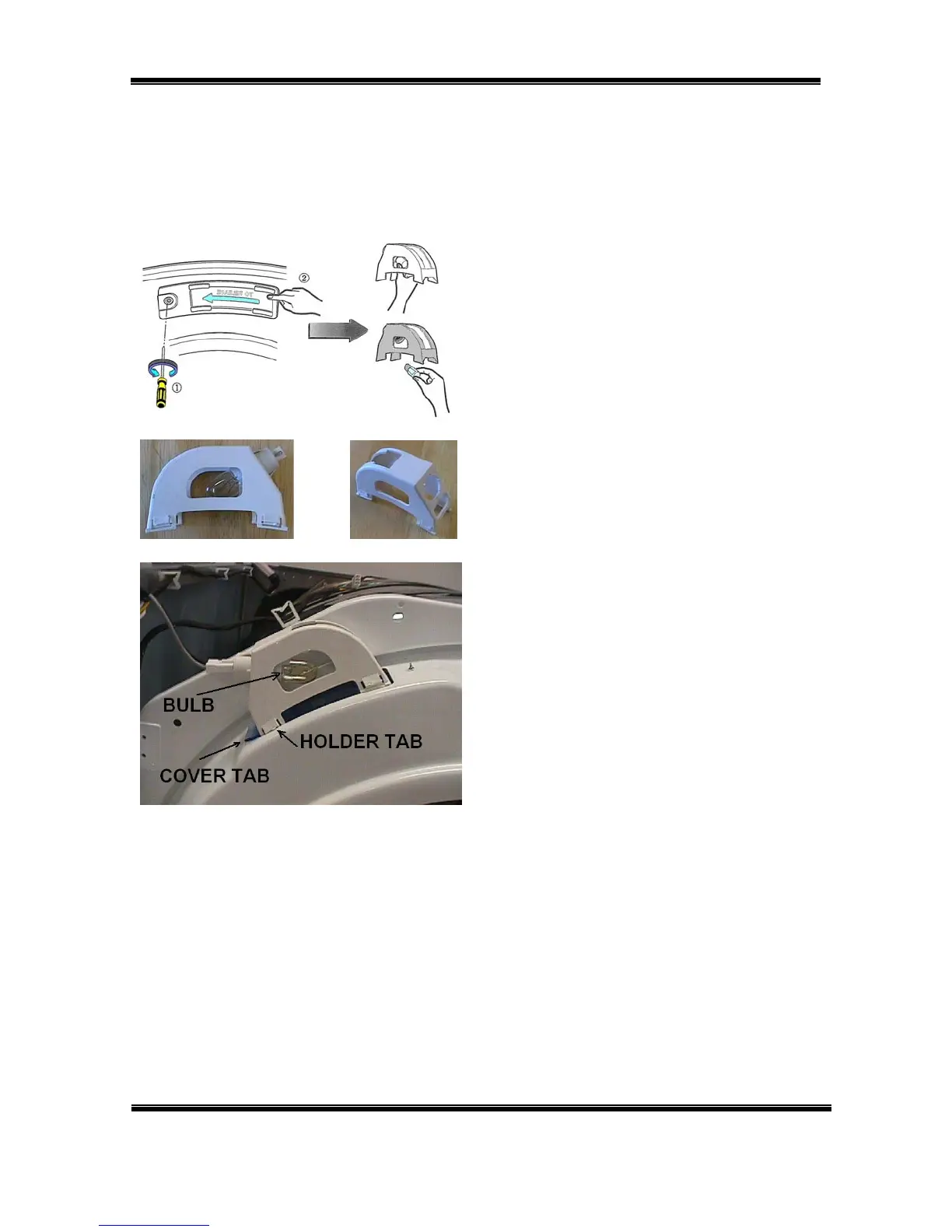

1. Open the door.
2. Hold the lamp shield in place
and remove the screw.
3. Slide the shield toward the
screw and remove it.
4. Unscrew the bulb and replace it
with a 15-watt, 120 V,
candelabra-base bulb.
5. Replace the shield and screw.
Notice the bulb holder has feet that
hold it in place and tabs to keep it
positioned properly.
The socket can be removed and
replaced by squeezing the tabs and
pulling the bulb and socket into the
housing. Press it back into place after
changing the bulb.
DLE8377xM/DLG8388xM
DLE7177WM/DLE7188WM Page 47 of 60 TRAINING MANUAL
