DRYER

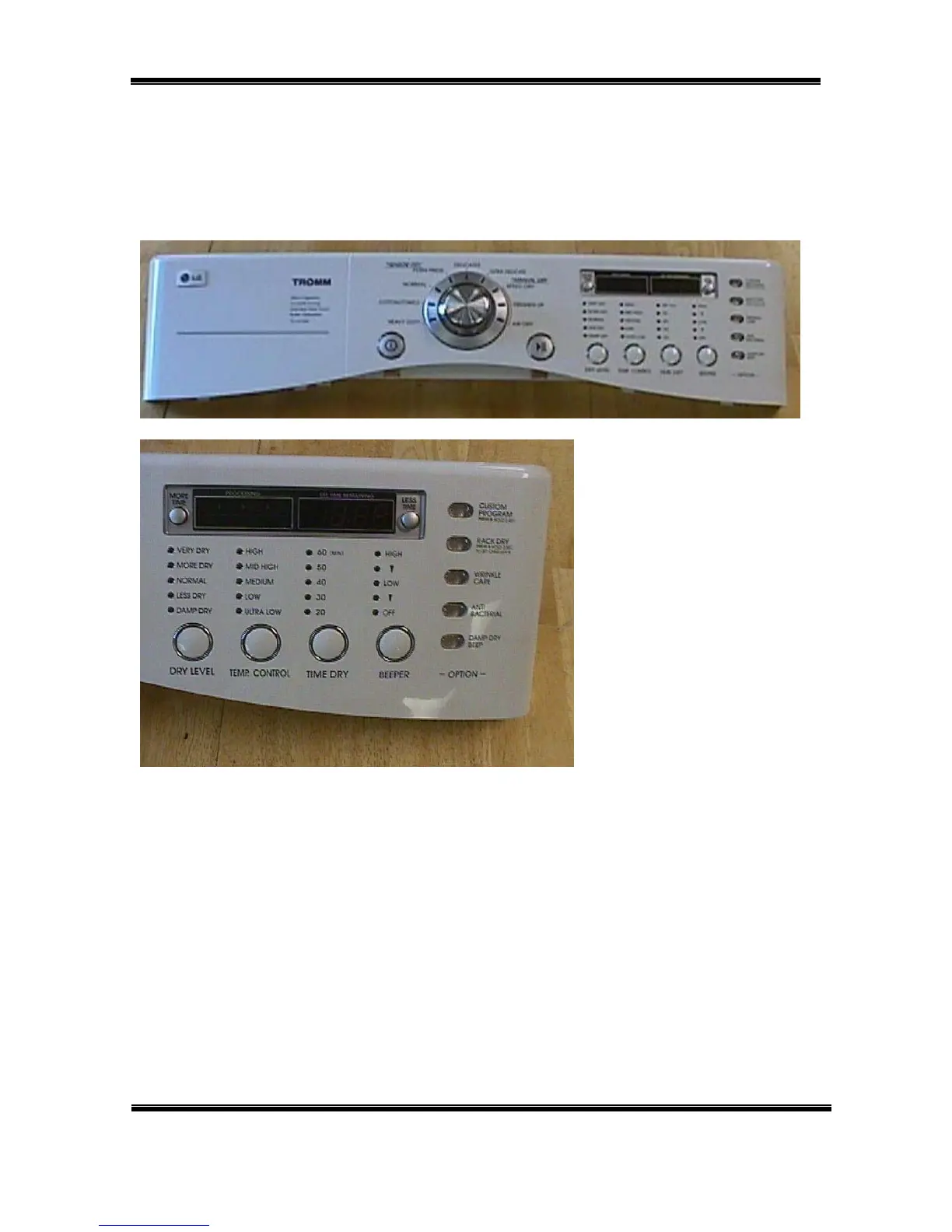

Models DLE7177WM and DLG7188WM use the LED indicator panel instead of
the newer LCD. The only difference is the type of display. The dryers function
identically. The main and display PCB (Printed Circuit Board) will carry a different
part number depending upon the type of display. Always order parts by model
number and serial number to ensure receiving the correct parts.
The drying cycle is shown
in the left window and the
time remaining is show in
the right. Feature
selections like DRY
LEVEL and BEEPER
volume are indicated by
LEDs on the panel.
The DISCOVERY line of dryers feature enhanced sensor drying. In addition to
the drying sensor in the tub near the filter, there is an additional sensor in the
exhaust stream to ensure the correct level of dryness is determined, from damp
dry to very dry. The dryer can also be set manually to dry at a particular heat
level and for a specified time.
DLE8377xM/DLG8388xM
DLE7177WM/DLE7188WM Page 7 of 60 TRAINING MANUAL
