3-20
Copyright © 2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

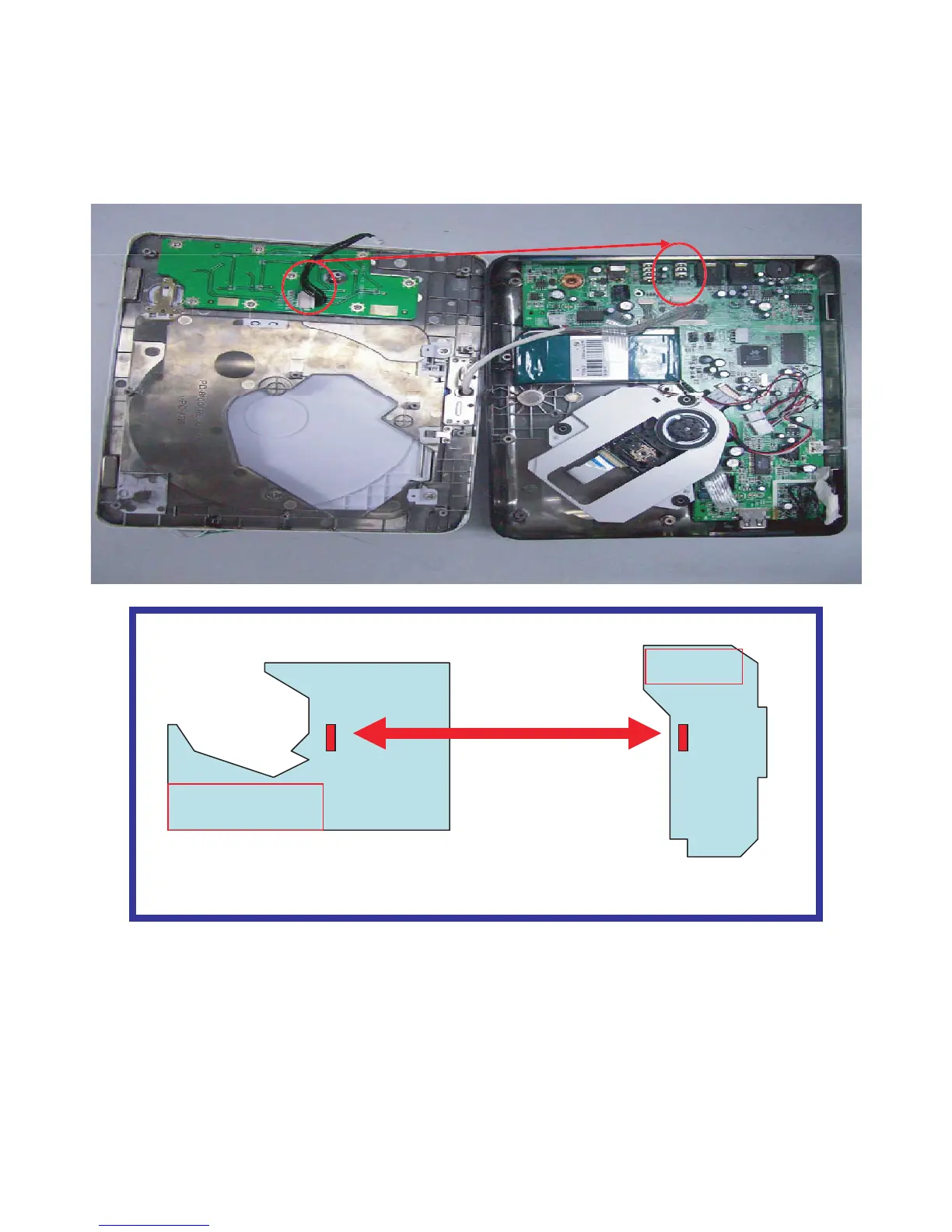

2. WIRING CONNECTION DIAGRAM-2
(MAIN PCB <---> KEY PCB)
kekey Py PCB
MAIMAIN PCBCB
