LG L1718S User Manual

10

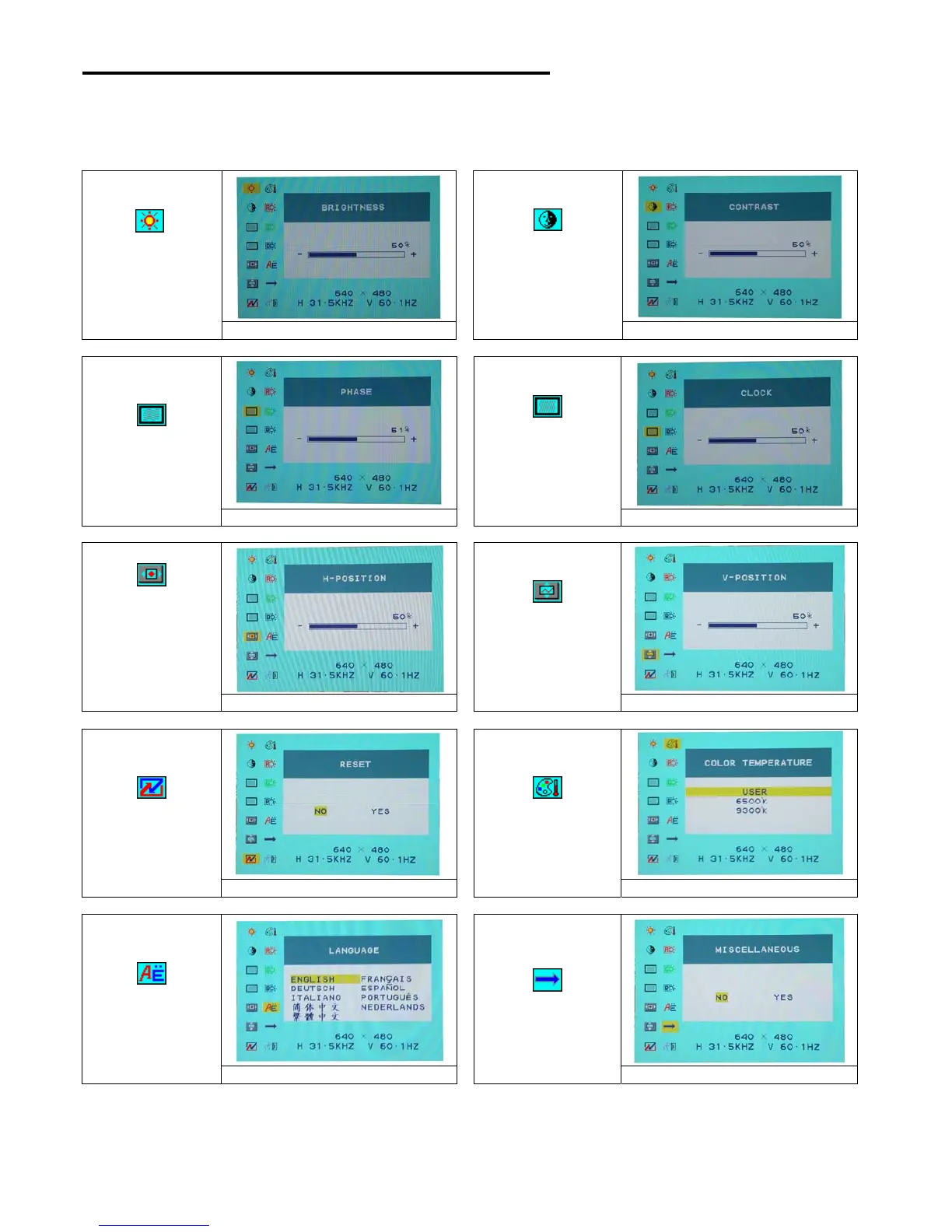

OSD (On-Screen Display) Menu Mode
Option select
1. Press the OSD button to access menu.
2. Using Auto Tune for left adjustment.
3. Press OSD again for right adjustment.
Brightness:
Adjust the
brightness of the
display.
Main menu brightness adjust
Contrast：
Adjust the
difference between
light and dark area.
Main menu contrast adjust
Phase：
Adjust the phase
of pixel clock.
Main menu phase adjust
Clock：
Adjust the
frequency of the
pixel.
Main menu clock adjust
Horizontal
Position：
Adjust the
horizontal
position of the
display.
Main menu H position adjust
Vertical Position：
Adjust the vertical
position of
display.
Main menu V position adjust
Reset :
Recall the default
setting.
Main menu Reset
Color Temp :
Adjust the color
Temperature.
Main menu color temp. adjust
Language :
Language
support.
Main menu language adjust
Miscellaneous :

LG L1718S Specifications

Display

display type	17.0" Active Matrix TFT LCD Screen
display area	13.3" x 10.6" (338mm x 270mm)
display colors	16.2 Million
maximum resolution	1280 x 1024
pixel configuration	RGB Stripe Arrangement
surface treatment	Hard Coating 3H, Anti-Glare

View and Performance

brightness	300cd/m2
contrast ratio	700:1
response time	8ms
pixel pitch	0.264mm x 0.264mm
viewing angle	H: 160 Deg., V: 160 Deg.

Power

power requirements	90 ~ 264 Vac / 47.5 ~ 63 Hz
dpms power consumption on	35 Watts
dpms power consumption standby	1 Watts

Physical Characteristics

dimensions with base	14.8" x 7.1" x 14.9" (375mm x 180mm x 380mm)
weight set	8.2 lbs.
weight shipping	10.6 lbs.
tilt/swivel	Tilt: Forward 5° / Backward 20° (No Swivel)
vesa mounting compliance	75mm x 75mm Screw Spacing
