LG L1718S User Manual

5
Hardware Installation
Be carefully to your LCD monitor, it’s very exquisite but easy to broken. Turn off LCD’s and PC’s power before you
set it up. Follow our installation step by step.
Input
VGA Version

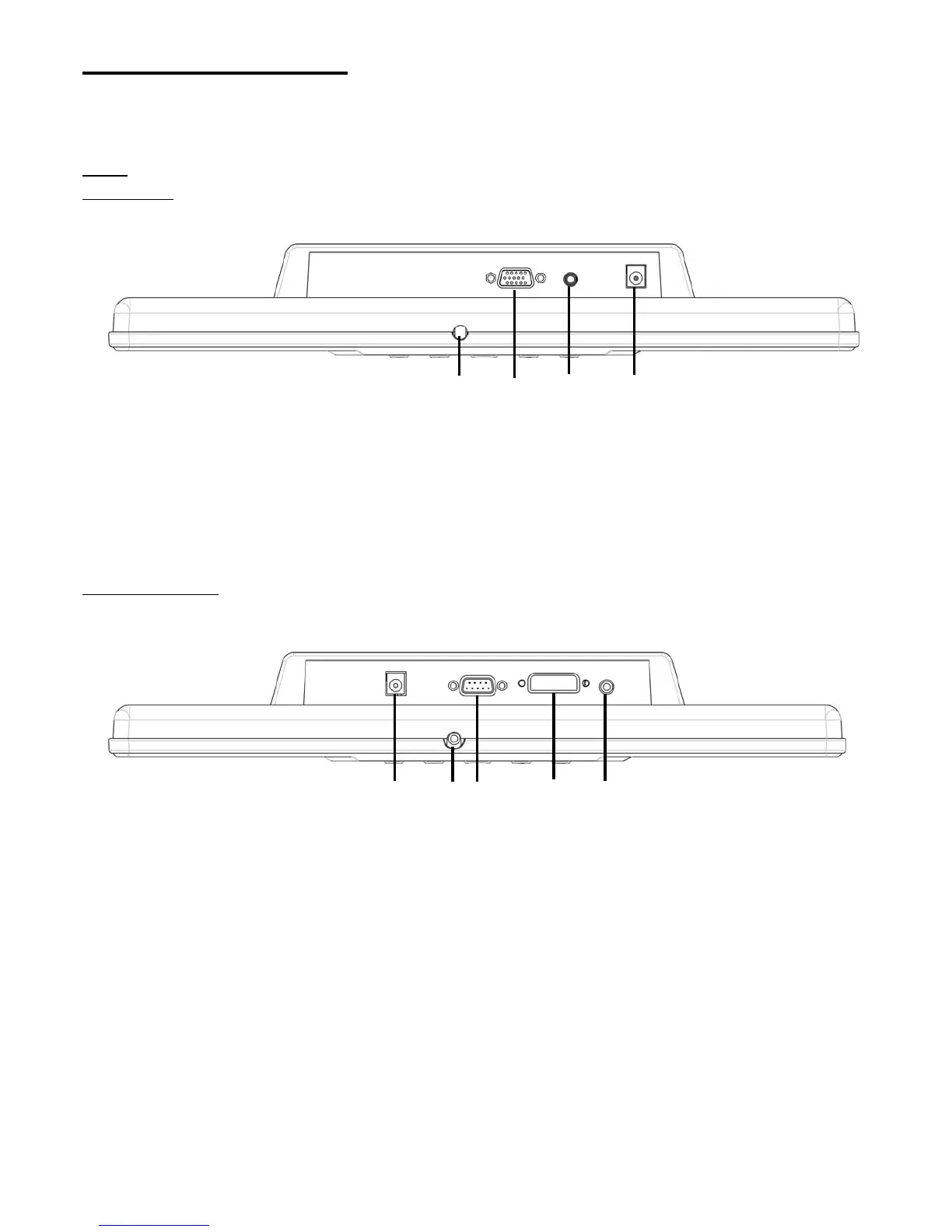

【1】DC port：This is for connecting the power cable.
【2】PC In : This can be connected with the D-Sub 15 pin signal Cable.
【3】LINE in：This can be connected to the audio-out connector of any sound resource.
【4】Earphone jack : This is for connecting the earphone.
VGA + DVI Version
【1】DC port：This is for connecting the power cable.
【2】PC In : This can be connected with the D-Sub 15 pin signal Cable.
【3】LINE in：This can be connected to the audio-out connector of any sound resource.
【4】Earphone jack : This is for connecting the earphone.
【5】DVI Port : This can be connected with the DVI signal Cable.
* DVI function is optional.
[1] [4] [2] [5] [3]
[4] [2] [3] [1]

LG L1718S Specifications

Display

display type	17.0" Active Matrix TFT LCD Screen
display area	13.3" x 10.6" (338mm x 270mm)
display colors	16.2 Million
maximum resolution	1280 x 1024
pixel configuration	RGB Stripe Arrangement
surface treatment	Hard Coating 3H, Anti-Glare

View and Performance

brightness	300cd/m2
contrast ratio	700:1
response time	8ms
pixel pitch	0.264mm x 0.264mm
viewing angle	H: 160 Deg., V: 160 Deg.

Power

power requirements	90 ~ 264 Vac / 47.5 ~ 63 Hz
dpms power consumption on	35 Watts
dpms power consumption standby	1 Watts

Physical Characteristics

dimensions with base	14.8" x 7.1" x 14.9" (375mm x 180mm x 380mm)
weight set	8.2 lbs.
weight shipping	10.6 lbs.
tilt/swivel	Tilt: Forward 5° / Backward 20° (No Swivel)
vesa mounting compliance	75mm x 75mm Screw Spacing
