LG LMXS28626 Series - Main PCB Replacement; Display PCB Replacement

- 1 0 -

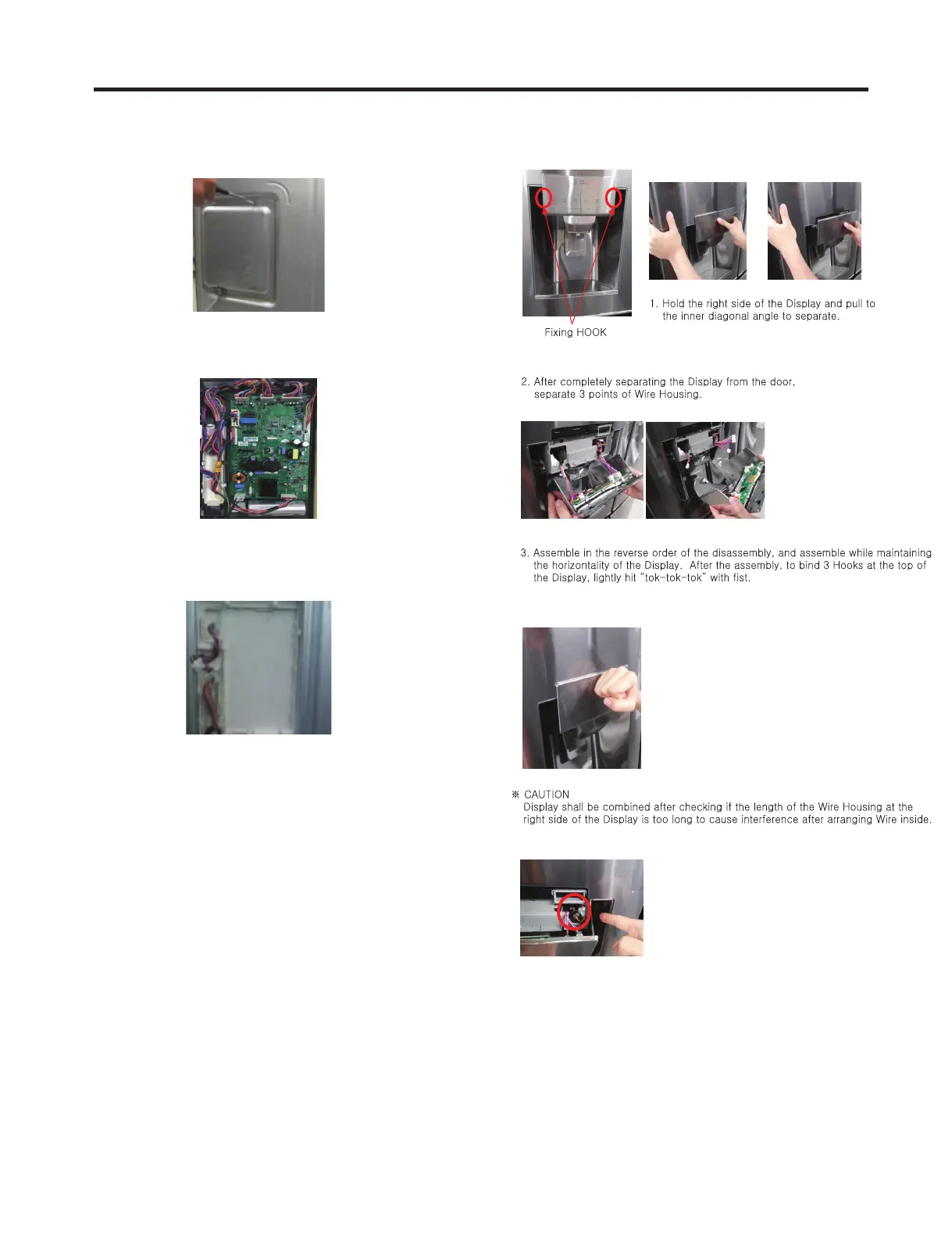

3-8 MAIN PWB
1) Loosen 3 screws on the PWB cover.
2) Remove the PWB cover
3) Disconnect wire harness and replace the main PWB in
the reverse order of removal.
3-9 DISPLAY PCB
Figure 20
Figure 21
Figure 22
