( P/N : EBR841464**)

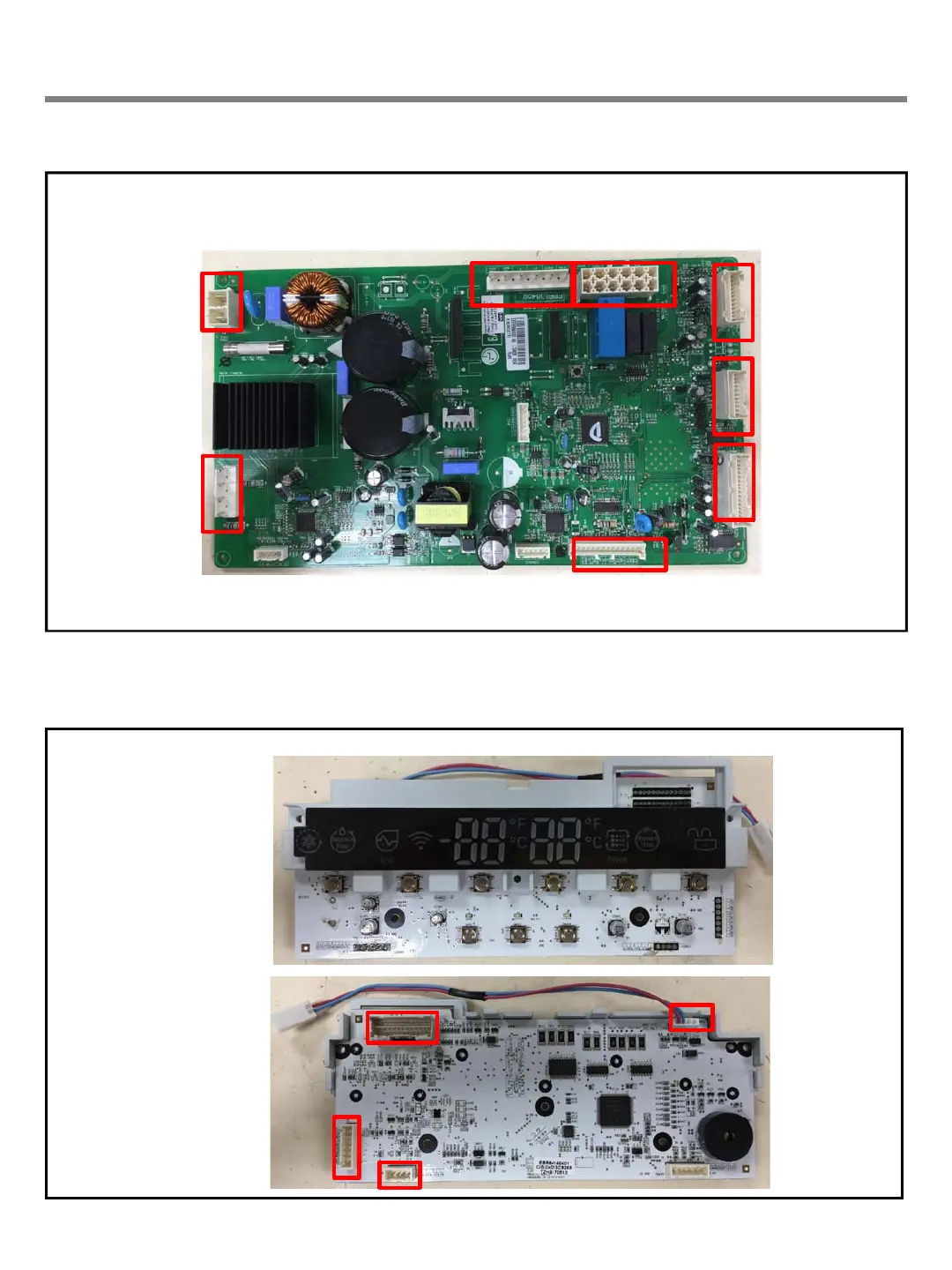

7. PCB Picture
7-1. Main PCB
7-2. Display PCB
( P/N : EBR838450**)
CON1
CON201
CON4
CON5
CON6
CON7
CON2 CON3
CON102
CON101
CON103
CON802
