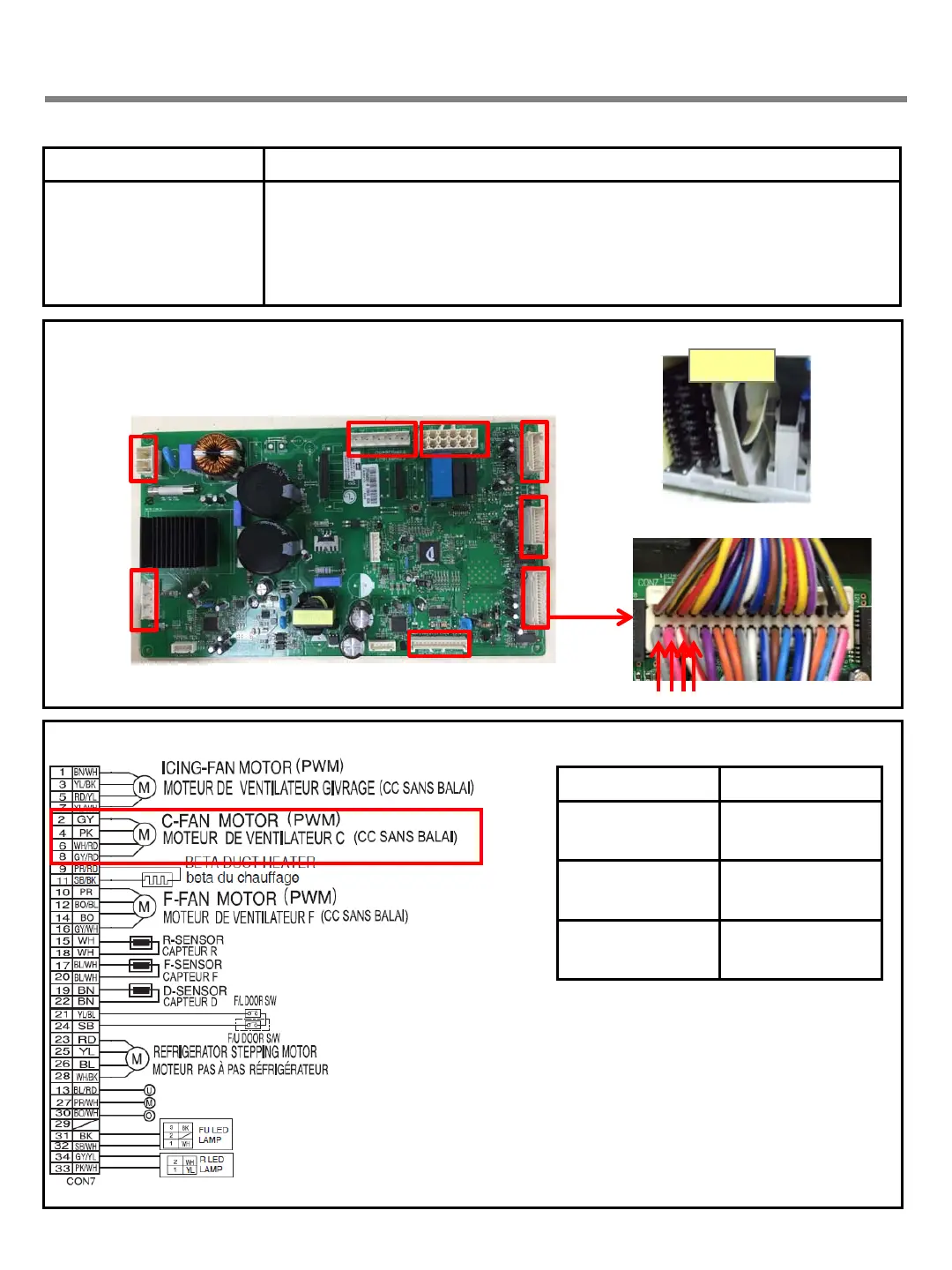

LG LMXS28626 Series - Condenser Fan Error (CF E) Troubleshooting

Symptom Check Point
1. CF E 1. Check the air flow
2. Check the Connector
3. Check the PCB Fan motor voltage
8-9. Condenser Fan Error (CF E)
Fan Motor
TEST MODE 1 Voltage [V]
CON7
4
th
pin ~ 6
th
pin
12V
CON7
8
th
pin ~ 6
th
pin
0V<Voltage<5V
CON7
2
nd
pin ~ 6
th
pin
0V<Voltage<5V
CON6
CON1
CON201
CON5
CON7
CON2 CON3
