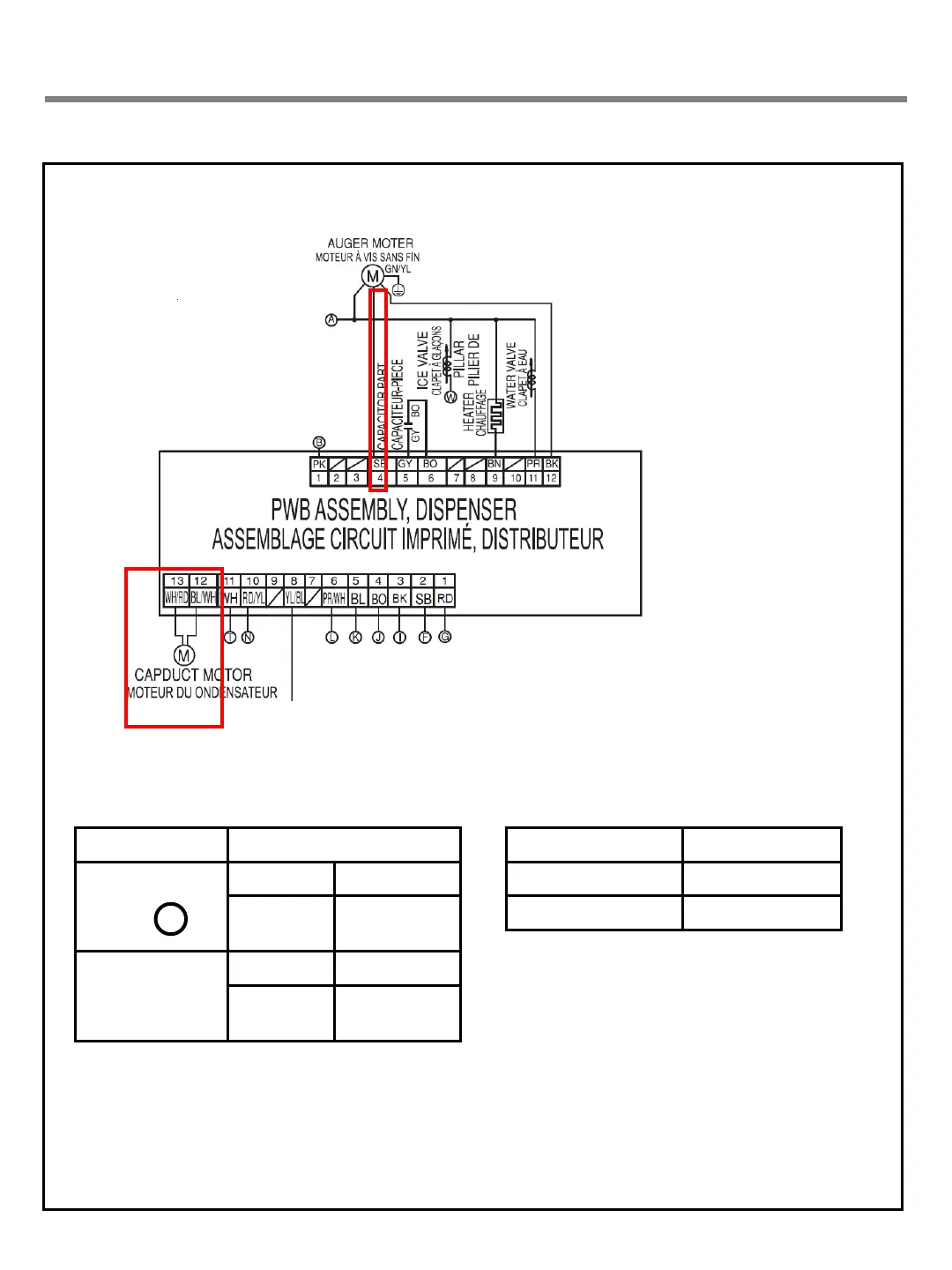

8-11. Cube mode doesn’t work
LEVER S/W Voltage [V]
CON2
4
th
pin ~ A
Pushing 112~115V
Not
Pushing
0~2V
CON1 3
rd
pin ~
13
th
pin
Pushing 9~12V
Not
Pushing
0~2V
Resistance [Ω]
Geared Motor 31.1 ~ 42.1
Dispenser Motor 9.9 ~ 12.1
