GENERAL INSTALLATION GUIDELINES
Mounting of Indoor Unit Installation Plate
Mounting Installation Plate to Wall (Mega 180HEV, 240HEV)
1. Confirm the position of screws between chassis and installation
plate (Figure 17).
2. Mount the installation plate horizontally by aligning the centerline
using a leveling tool (Figure 18).
3. Use provided screws when mounting the plating.
• If mounting the unit on concrete wall, use field supplied anchor
bolts.
4. Observe the left and right rear piping clearance when drilling into
the wall, as shown in Figure 18.
Refer to “Drilling Piping Hole in the Wall” on page 28 as
you follow procedure to install plate.
Unit: Inch
Ø
2
-19/32
Ø
2
-19/32
2 -11/16
2-3/16
Right rear
piping
Left rear
piping
Installation Plate
Measuring Tape
Measuring Tape
Hanger
Place a level on raised tab
Unit Outline
8-3/32
4-3/32
18
-3/32
22-
13/32
180HEV and
240HEV
Installation Plate
Chassis
Hook
Type "A" Screws

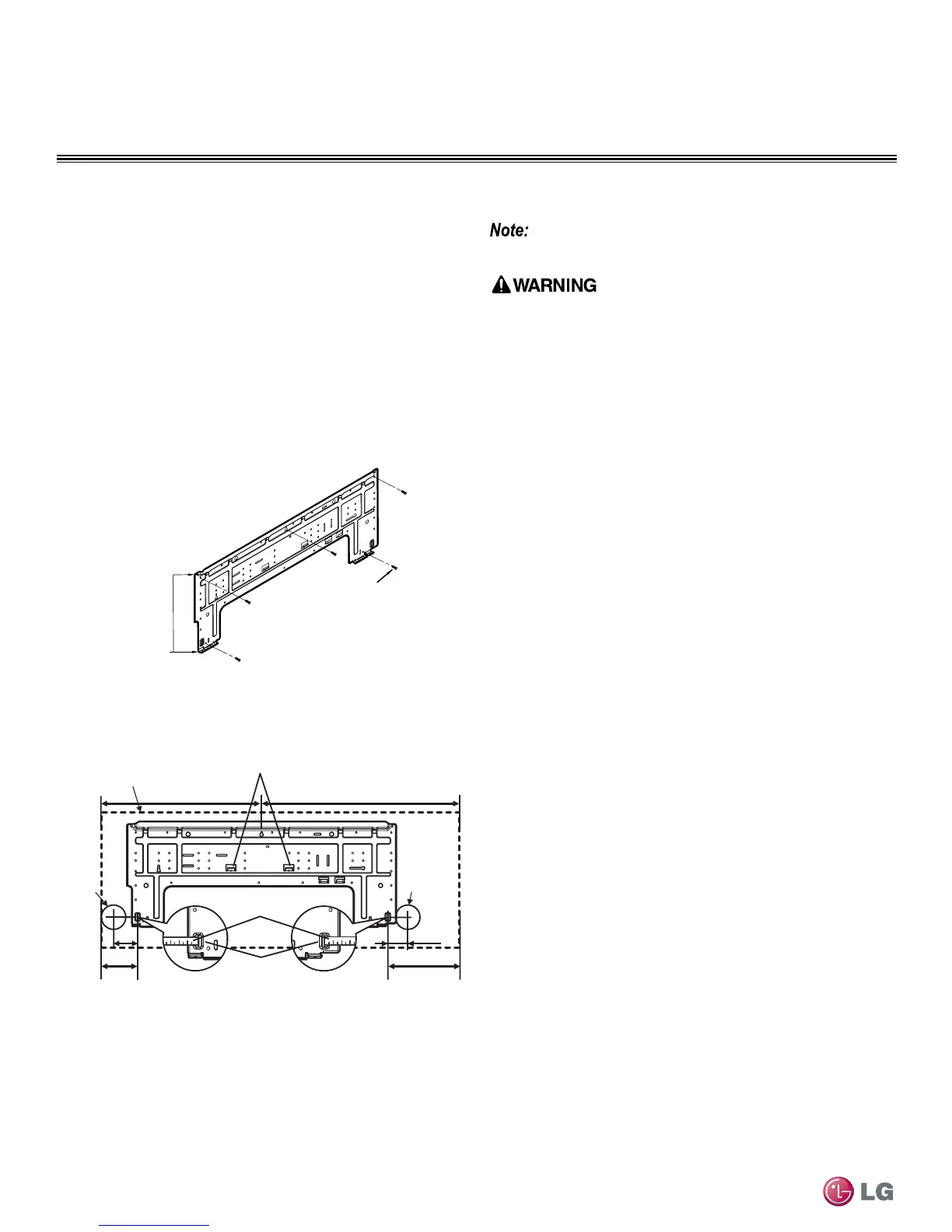

Figure 17: Installation Plate Showing Screw Locations
Figure 18: Installation Plate - 180HEV, 240HEV
Select location carefully. Unit should be anchored to a strong wall to pre-
vent unnecessary vibration.
• When choosing a location for the wall mount plate, be sure to take
into consideration routing of wiring for power outlets within the wall.
Contacting wiring can cause serious bodily injury, or death.
• Use caution when drilling holes through the walls for the purposes
of piping connections. Power wiring can cause serious bodily injury,
or death.
