LG LS360HV3 Installation Manual

75
Electrical Wiring
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
ELECTRICAL WIRING
Outdoor Unit Electrical Connections
Terminal Block Connection for HXV
See Figure 96 for specific terminal block wiring for all following
Single Zone outdoor unit models:
LSN090HXV
LSN120HXV

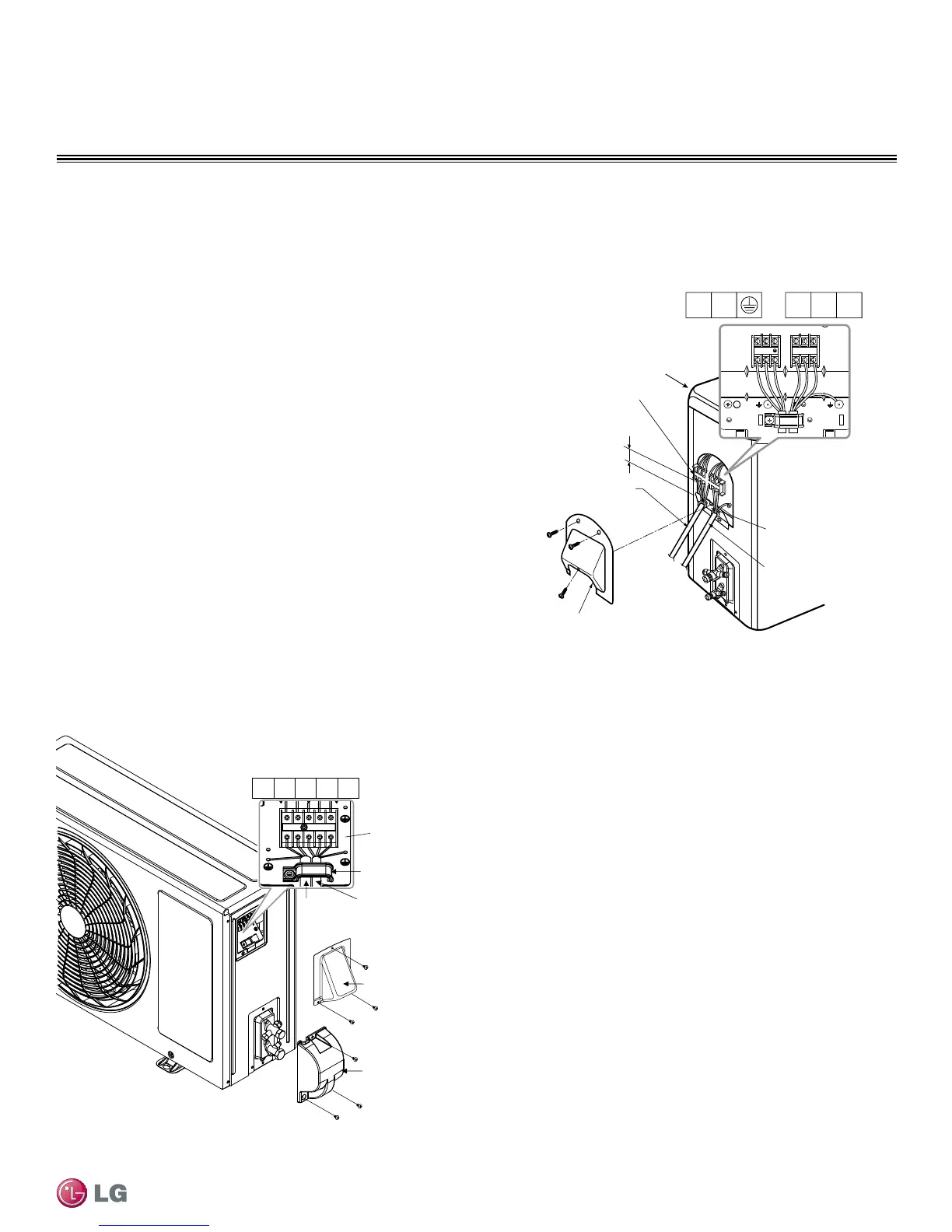

Figure 95: 240HEV Outdoor Unit - Electrical Connections
Figure 96: 090HXV, 120HXV Outdoor Unit - Electrical Connections
Terminal Block Connection for
240HEV
See Figure 95 for specific terminal block wiring for the following
Single Zone outdoor unit model:
LSU240HEV
Outdoor unit
Terminal block
Conduit Panel Cover
Over 0.2”
Conduit panel
Connecting
cable
Power supply
cord
1(L1) 2(L2) 3 1(L1) 2(L2)
1(L) 2(N) 3L N
1(L1)2(L2)
3
1(L1)2(L2)
240HEV
Tubing cover
Terminal Block
L
N
1(L)
2(N) 3
Power
connecting
cable
Power
cord
Cord clamp
Conduit panel
cover
090HXV, 120HXV
Connecting Outdoor Unit Electrical Wiring - Continued
