Electrical Wiring
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
ELECTRICAL WIRING
Terminal Block Connection for Mega 115V
090HXV, 120HXV
See Figure 88XX for specific terminal block wiring for all following Single
Zone models:
LSN090HXV
LSN120HXV

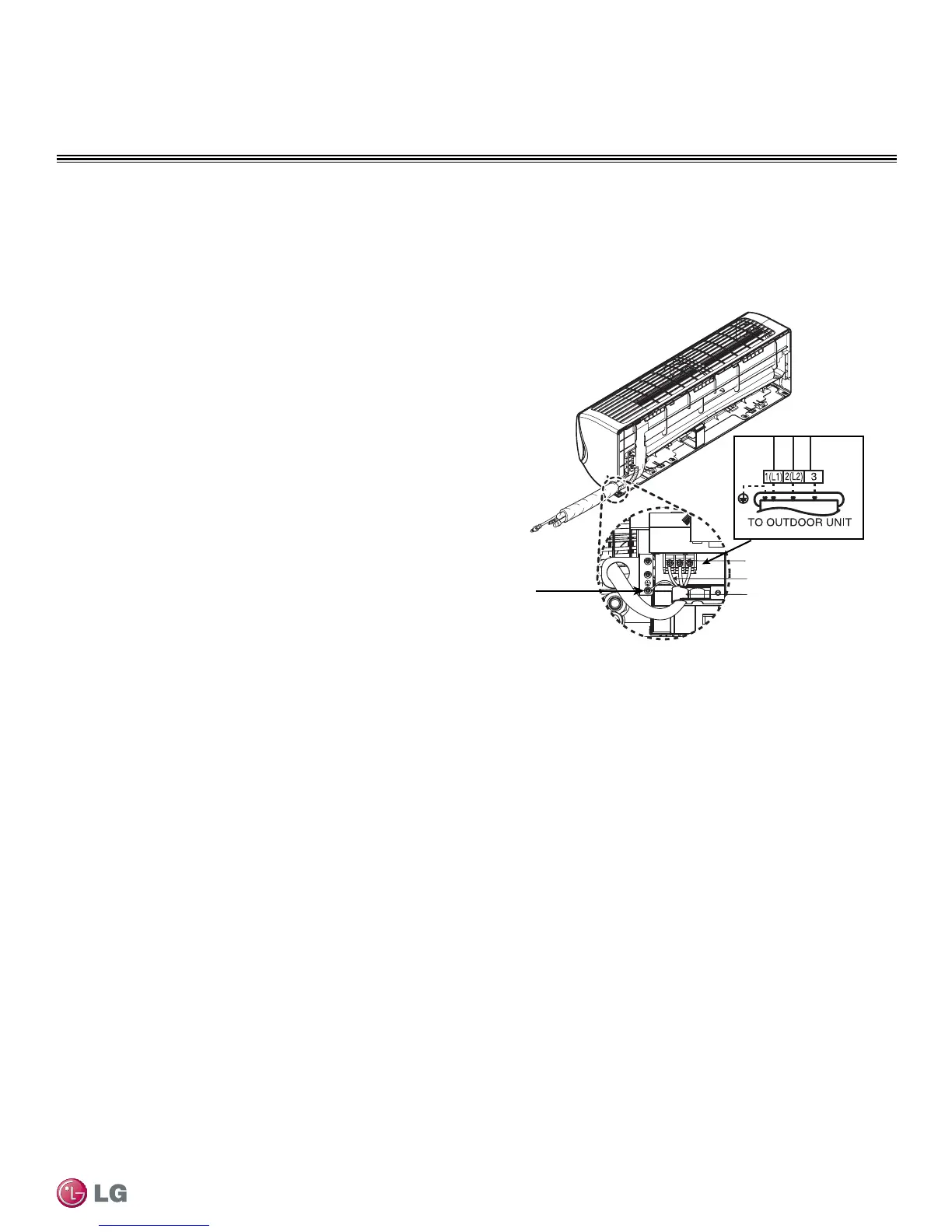

Indoor Unit Electrical Connections
Terminal Block
Terminal Block
Expanded View
Grounding
Cable
Connecting Cables
Cable Restrainer
090HXV, 120HXV
