LG LS360HV3 Installation Manual

73
Electrical Wiring
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
ELECTRICAL WIRING
Terminal Block Connection for
091HSV3, 121HSV3
See Figure 92 for specific terminal block wiring for all following
Single Zone outdoor unit models:
LSU091HSV3
LSU121HSV3
Outdoor Unit Electrical Connections
Terminal Block Connection for HV3
See Figure 91 for specific terminal block wiring for all following
Single Zone outdoor unit models:
LSU307HV3
LSU360HV3
Connecting Outdoor Unit Electrical Wiring - Continued
HV3 (All models)
181HSV3, 240HSV3
Electrical Connections
Outdoor Unit
Terminal Block
Over 0.2”
Conduit Panel
Connection/Communication
Cable (Leading to Indoor Unit)
Power Cord
Conduit Panel Cover
1(L1) 2(L2) 1(L1) 2(L2 )
3
HV3
181HSV3, 240HSV3

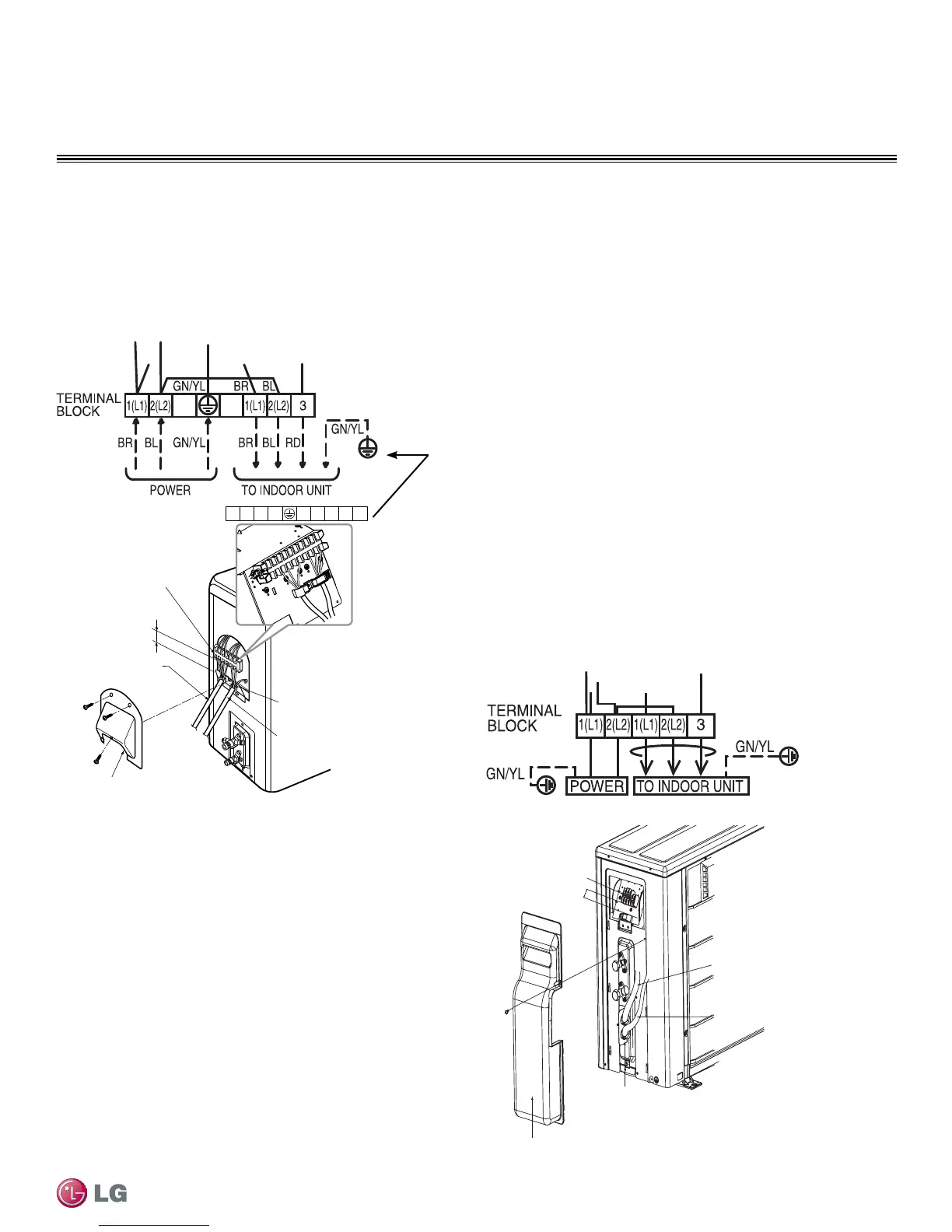

Figure 91: HV3 and 181HSV3, 240HSV3 Outdoor Unit - Electrical
Connections
Figure 92: 091HSV3, 121HSV3 Outdoor Unit - Electrical Connections
Terminal Block Connections for
181HSV3 and 240HSV3
See Figure 91 for 181HSV3 and 240HSV3 Single Zone terminal
block connections. The connections are identical to the HV3
outdoor units.
091HSV3, 121HSV3
Terminal Block
Connection/Communication
Cable (Leading to Indoor Unit)
Power Cord
Conduit Panel
Tubing Cover
Over
0.2"
091HSV3, 121HSV3
