96 | LIMITS / PLACEMENT

MULTI V 5 Outdoor Unit Engineering Manual

'XHWRRXUSROLF\RIFRQWLQXRXVSURGXFWLQQRYDWLRQVRPHVSHFL¿FDWLRQVPD\FKDQJHZLWKRXWQRWL¿FDWLRQ

/*(OHFWURQLFV86$,QF(QJOHZRRG&OLIIV1-$OOULJKWVUHVHUYHG³/*´LVDUHJLVWHUHGWUDGHPDUNRI/*&RUS

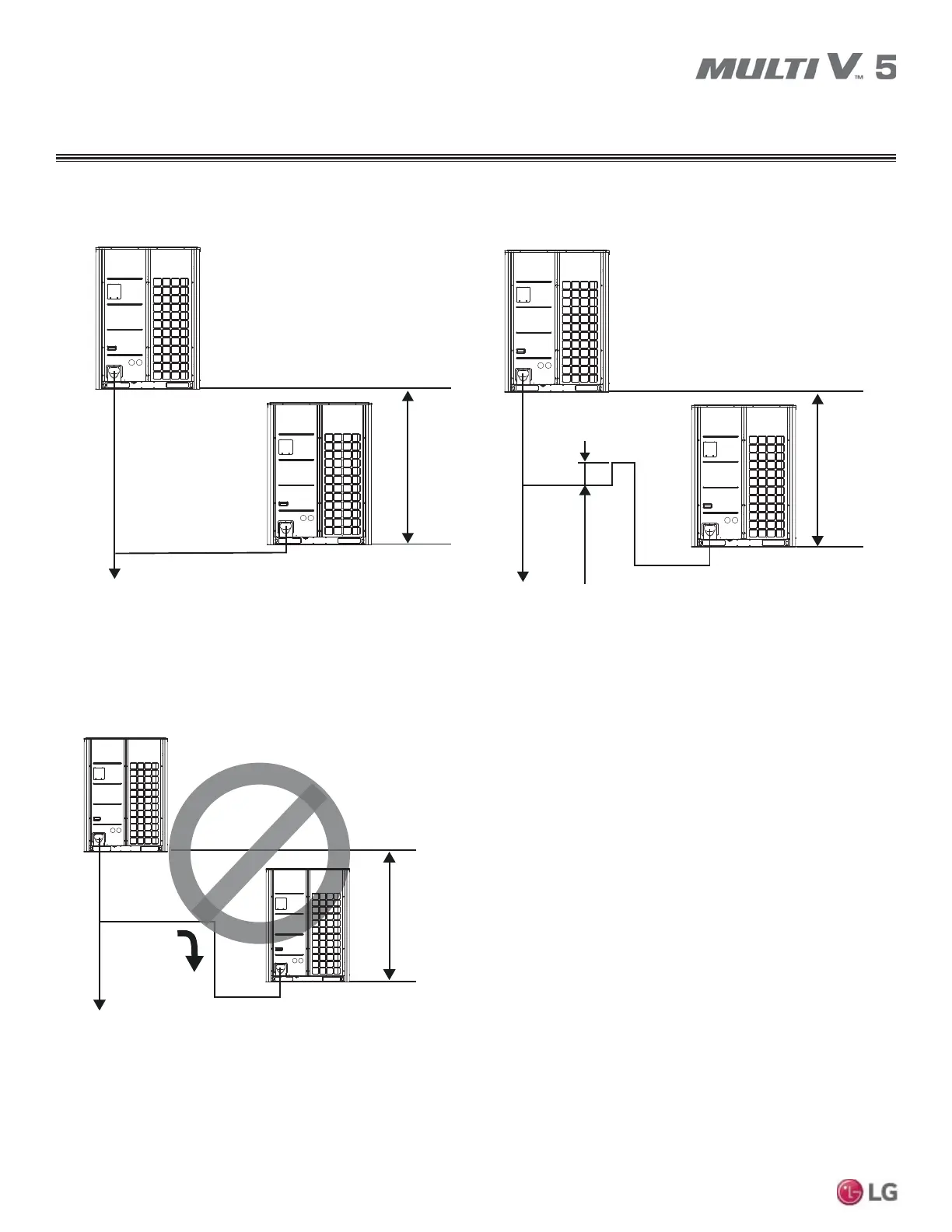

Height Differential for Separated Outdoor Units

Maximum allowable height differential (h) between two outdoor units is 16.4 feet.

KIHHW

7RLQGRRUXQLWV

2LO7UDS

LQFKHV

Example of an Incorrect Height Differential

To indoor units

REFRIGERANT PIPING FOR

SEPARATED OUTDOOR UNITS
