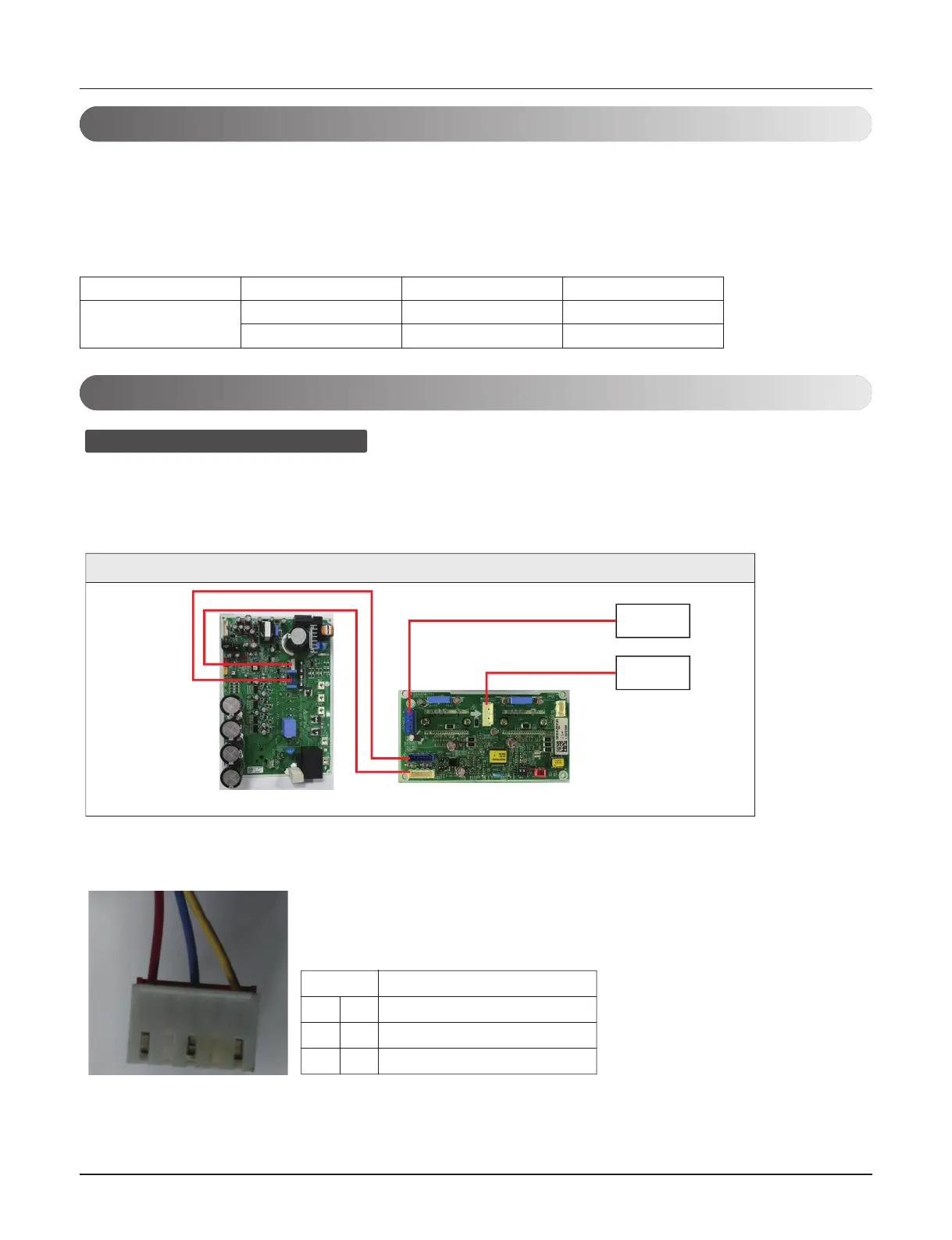

1. Check alien substance in the Fan.
2. Check the imprisonment of fan Ɗ Please turn Fan, if fan is turn, ok.
3. Check Motor Wire connection
(Motor Ǝ Motor PCB Ǝ Inverter or Main PCB)
4. Check the Motor. Refer to the below.
How to check the outdoor fan motor of BLDC
Tester
Normal resistance (±10%)
ڡ ڣ
ڣ ڥ
45 Ω
45 Ω
45 Ω
ڡڥ
Checking Outdoor Fan Lock
ڡڣڥ
Motor Wire Connection
Motor1
Inverter PCB Motor PCB
Motor2
Checking Method for Key Components
- 98 -
Copyright © 2020 LG Electronics Inc.
All rights reserved. Only training and service purposes.
2.8 Temperature Sensor
1) Outdoor temperature sensor : TH1
2) Discharge pipe(D-pipe) temperature sensor : TH2
1. Check the condition of installation and the contact of temperature sensor.
2. Check whether the connector contact of temperature sensor is normal.
3. Measure the resistance of temperature sensor.
3) Pipe temperature sensor : TH3
TH1 TH2 TH3
Resistance
10 kΩ±1 %(25 °C) 200 kΩ±1 %(25 °C) 5 kΩ±1 %(25 °C)
1.07 kΩ±3.3 %(85 °C) 28 kΩ±7.7 %(85 °C) 535 Ω±3.3 %(85 °C)
