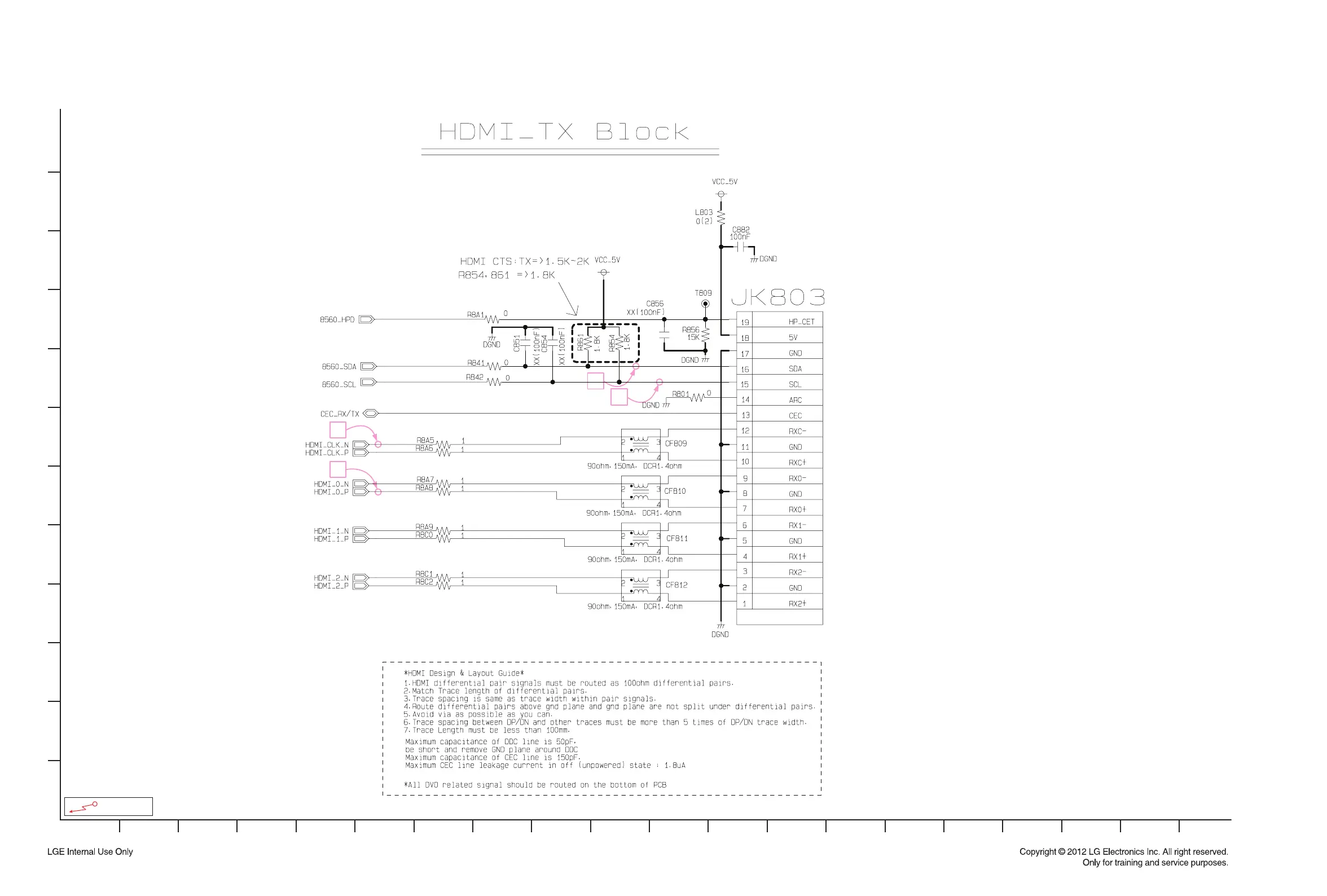

6. MAIN - HDMI CIRCUIT DIAGRAM
WAVEFORM
A
1
2
3
4
5
6
7
8
9
10
11
12
B C D E F G H I J K L M N O P Q R ST
HDMI
EAX64508371(#6), REV1.0(0)
2011. 12. 27
14
13
12
15
2-111 2-112
