LG SN4A - Optical

3-31
Copyright © 2021 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
15
14
OPTICAL JACK,96KHz
3.3VA
JK202
1
OUT
2
GND
3
VCC
R209
82
R202 100
C208
15pF
R201
560
DGND DGND
OPT_IN
OPT_DET
C207
1uF
C224
100pF
MPEG
MICOM
OPTICAL

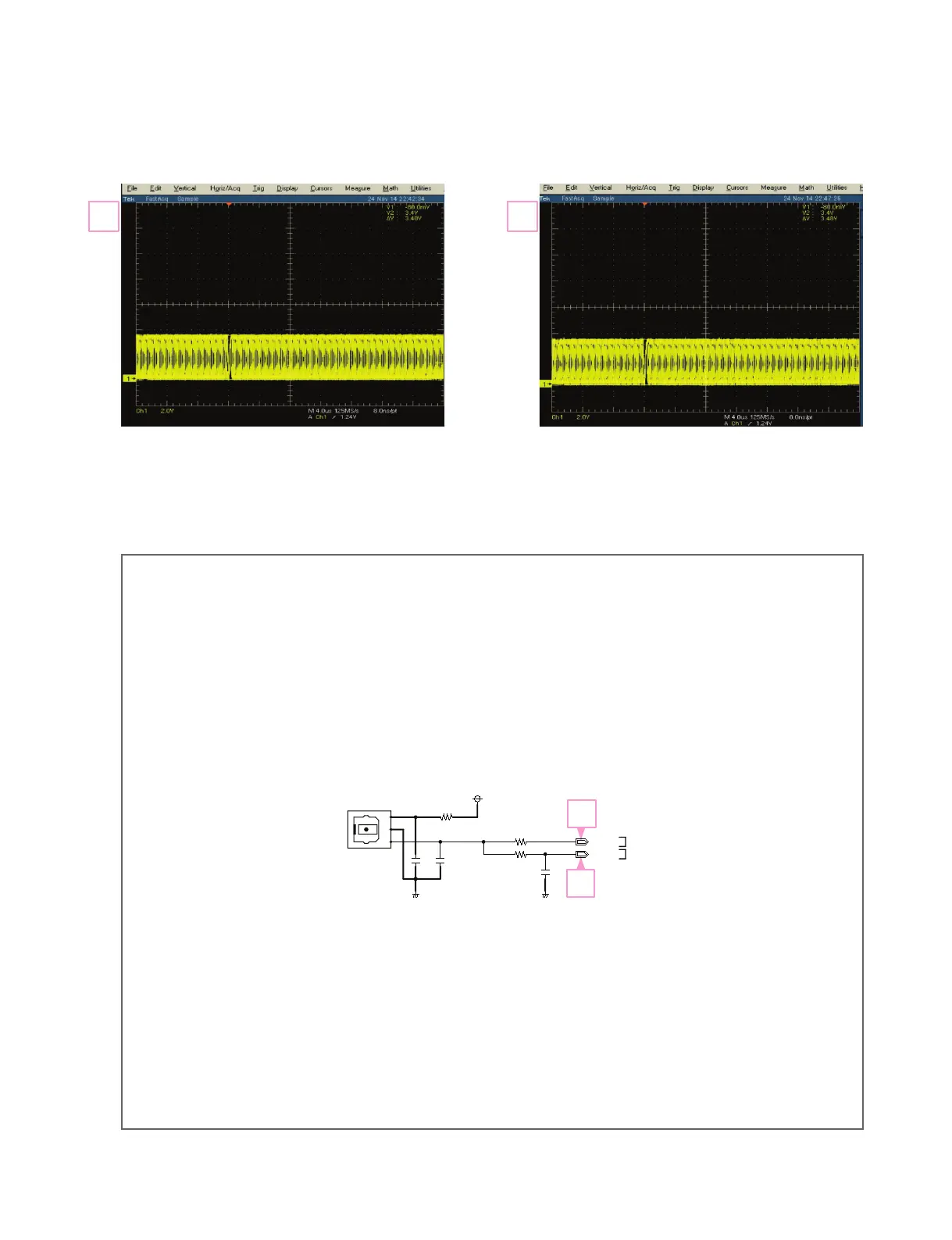

6. OPTICAL
FIG 6-1. OPT IN
14
FIG 6-2. OPT DET
15
