LG SN4A - WAVEFORMS OF MAJOR CHECK POINT

4-6
Copyright © 2021 LG Electronics Inc. All rights reserved.
Only for training and service purposes.

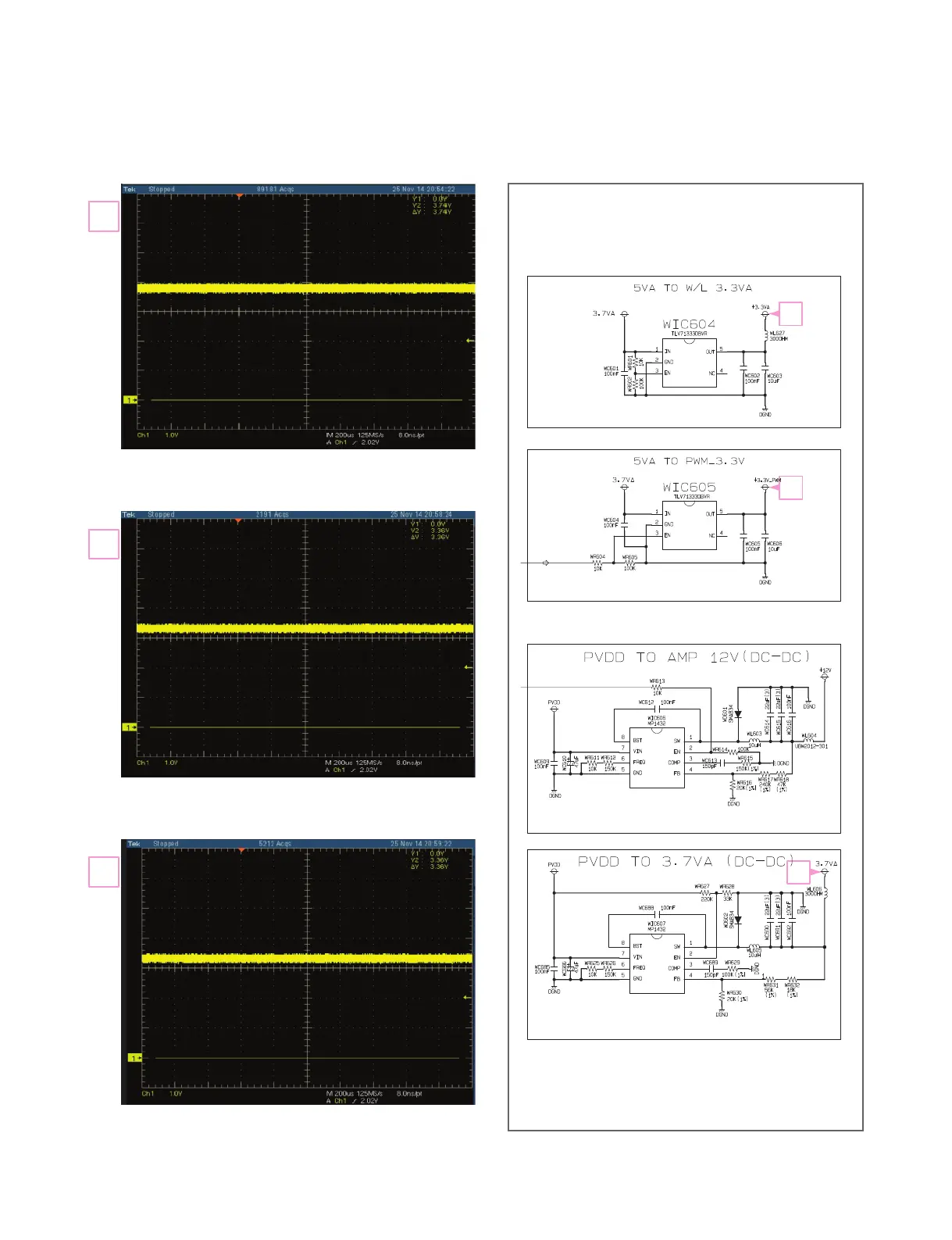

WAVEFORMS OF MAJOR CHECK POINT
1. VOLTAGE
FIG 1-1. WIC607 3.7 VA
1
FIG 1-2. PWM 3.3 V
2
FIG 1-3. Wireless 3.3 VA
3
3
2
1
