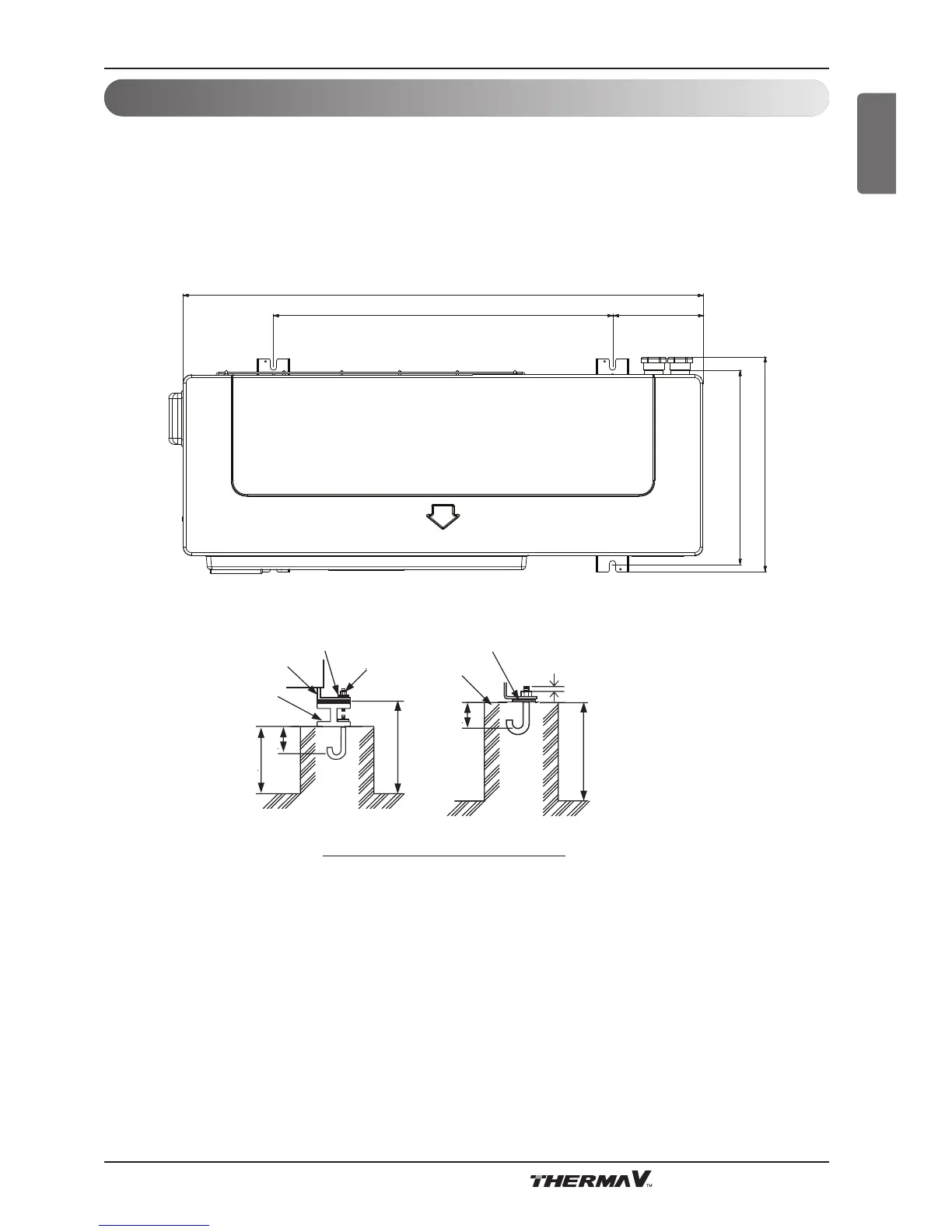

Foundation for Installation

[Unit:mm]

Foundation bolt executing method

200

Nut

200

Spring washer

Frame

Anti-vibration

materials

Four bolt are

required

3 thread ridges

H-Beam

Concrete

base

100

950

390

360

614 165

• Check the strength and level of the installation ground so that the unit will not cause any

operating vibration or noise after installation.

• Fix the unit securely by means of the foundation bolts. (Prepare 4sets of M12 foundation

bolts, nuts and washers each which are available on the market.)

• It is best to screw in the foundation bolts until their length are 20mm from the foundation

surface.

LG Therma V AHBW A0 Series Installation Manual
