LG Therma V AHBW A0 Series Installation Manual

Accessories Installation
Installation Manual 37
ENGLISH

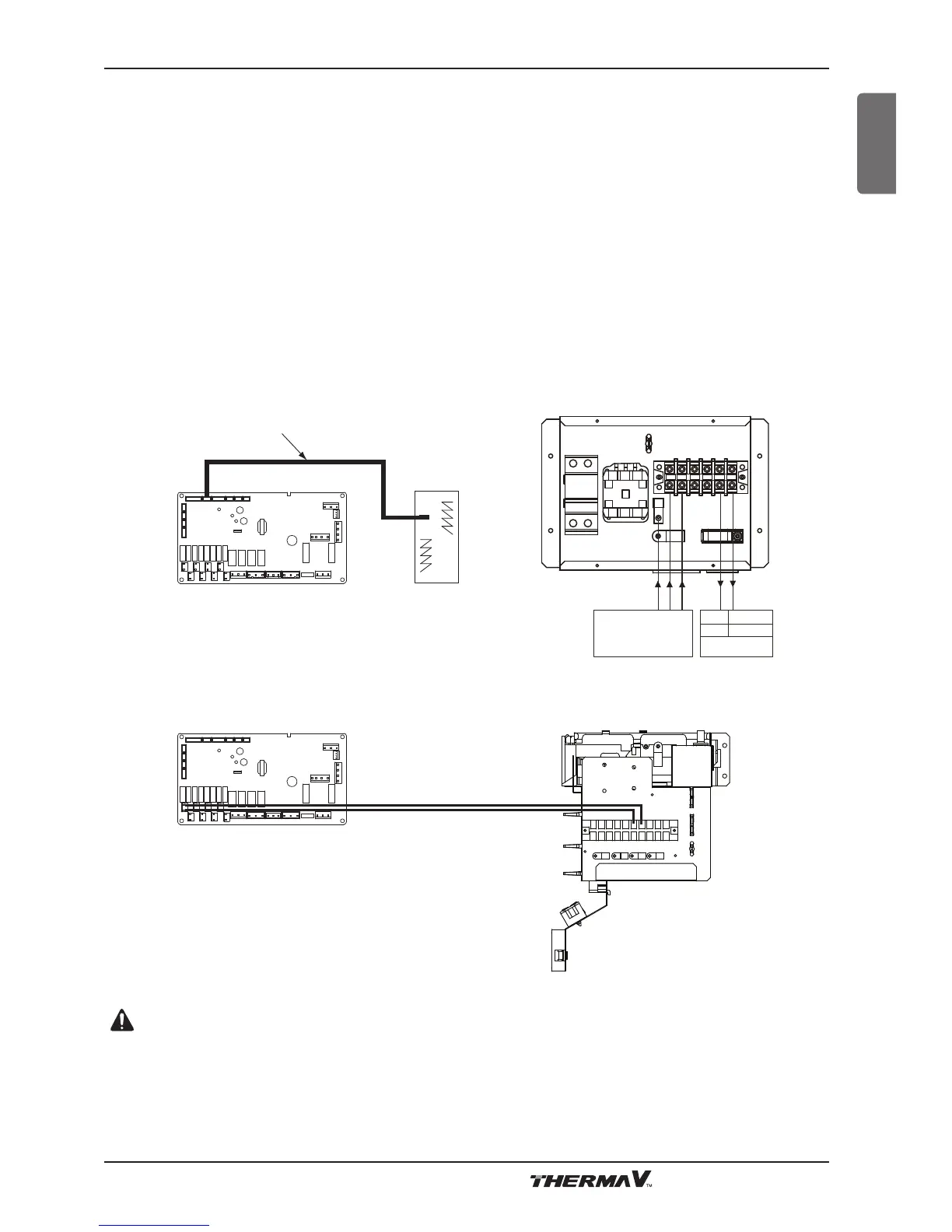

How to install sanitary water tank kit
Follow below procedures Step 1 ~ Step 5.
Step 1. Uncover the water tank kit and locate it on the wall.
Step 2. Connect the water tank kit to the main power like the below figure 2.
Step 3. Connect the water tank kit to the Main PCB like the below figure 2.
Step 4.
Connect power cord of sanitary tank heater. It is located inside of the tank. Refer to the next
page for more information.
Step 5. Find sanitary water tank sensor. Plug it to 'CN_TH4' (Red Connector) of the Main PCB. The
sensor should be mounted correctly to the sensor hole of sanitary water tank. Like below
figure. 1
Step 6. Connect the Main PCB to terminal block with wire(Part 4) like figure 3.
Sensor mounting
Insert sensor into sensor socket and bolt it tightly.
1 2 3 4 5 6
Main Power
220-240
67
BR
Main PCB
BL
Sanitary Water
Tank
Sanitary Water Tank Sensor
CN-TH4
CH-B/HEAT(A)
Fig. 1
Fig. 3
Fig. 2
CAUTION
