Installation Manual 29
Accessories Installation
ENGLISH
Installation of Remote Controller
The Heat Pump can interface to various accessories to extend its functionality and to improve user
convenience. In this chapter, accessories and how to connect to The Heat Pump is introduced.
See the ‘System Set-Up’ for a dip-switch settings and installer settings.
For accessories supported by your supplier, please refer to installation manual of each accessories.
Followings should be kept before installation
• Main power must be turned off during installing 3rd party accessories.
• 3rd party accessories should be comply with supported specification.
• Proper tools should be chosen for installation.
• Never do installation with wet hands.

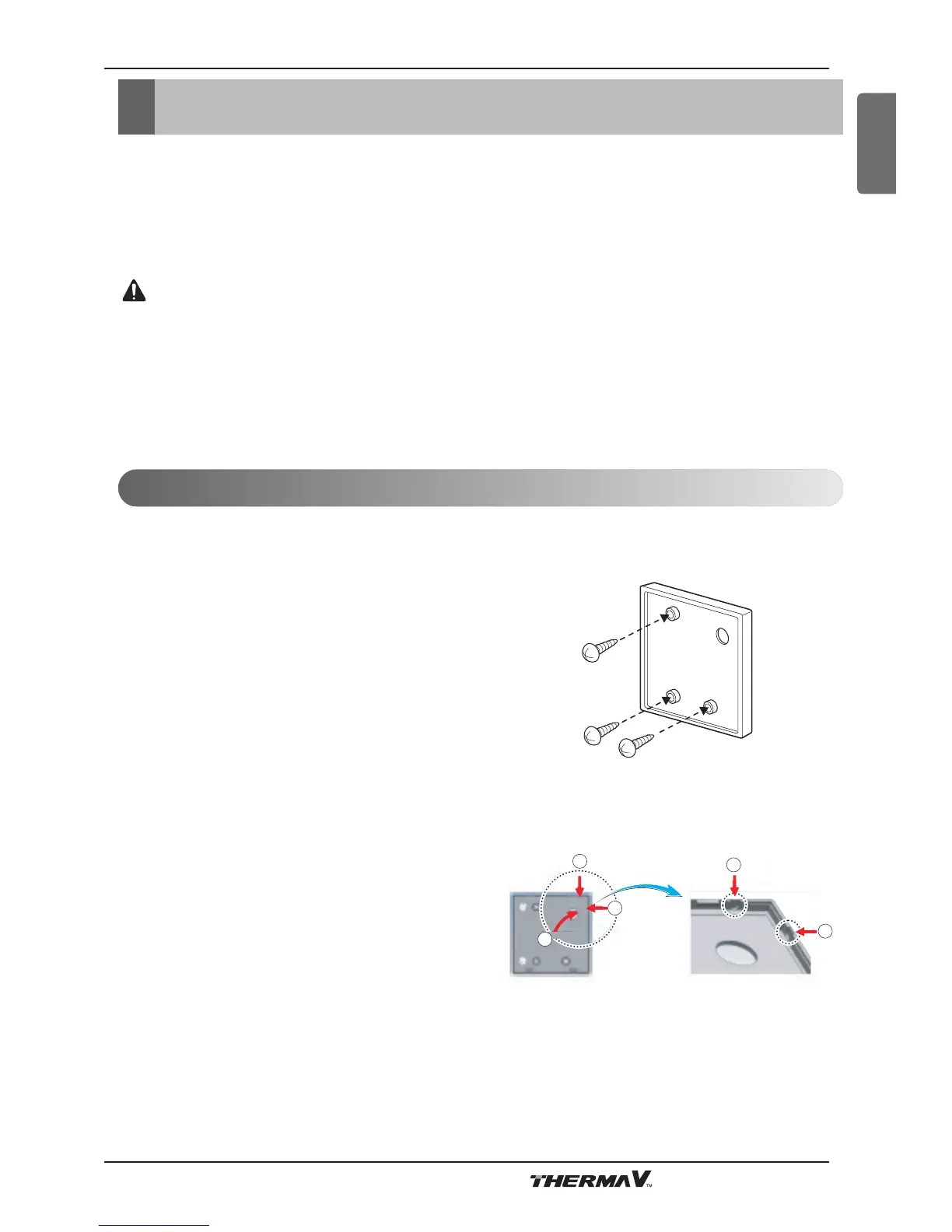

1. Please fix tightly using provided screw after
placing remote controller setup board on the
place where you like to setup.
- Please set it up not to bend because poor
setup could take place if setup board bends.
Please set up remote controller board fit to the
reclamation box if there is a reclamation box.
2. Can set up Wired remote controller cable
into three directions.
- Setup direction: the surface of wall
reclamation, upper, right
- If setting up remote controller cable into upper
and right side, please set up after removing
remote controller cable guide groove.
h
Remove guide groove with long nose.
①
Reclamation to the surface of the wall
②
Upper part guide groove
③
Right part guide groove
To Next Page
