General Information
8 Air-to-Water Heat Pump
With advanced inverter technology, is suitable for applications like under floor heating,
and hot water generation. By Interfacing to various accessories user can customize the range of the
application.
In this chapter, general information of is presented to identify the installation
procedure. Before beginning installation, read this chapter carefully and find helpful information on
installation.
Model name and related information
* : tested under Eurovent Heating condition (inlet Water temperature 30 °C ’ 35 °C at outdoor
ambient temperature 7 °C DB/ 6 °C WB)
Unit
Capacity
Power Source (Unit) Chassis
Heating (kW)* Cooling (kW)
AHBW036H0 3.0 - 220-240 V~ 50 Hz U4

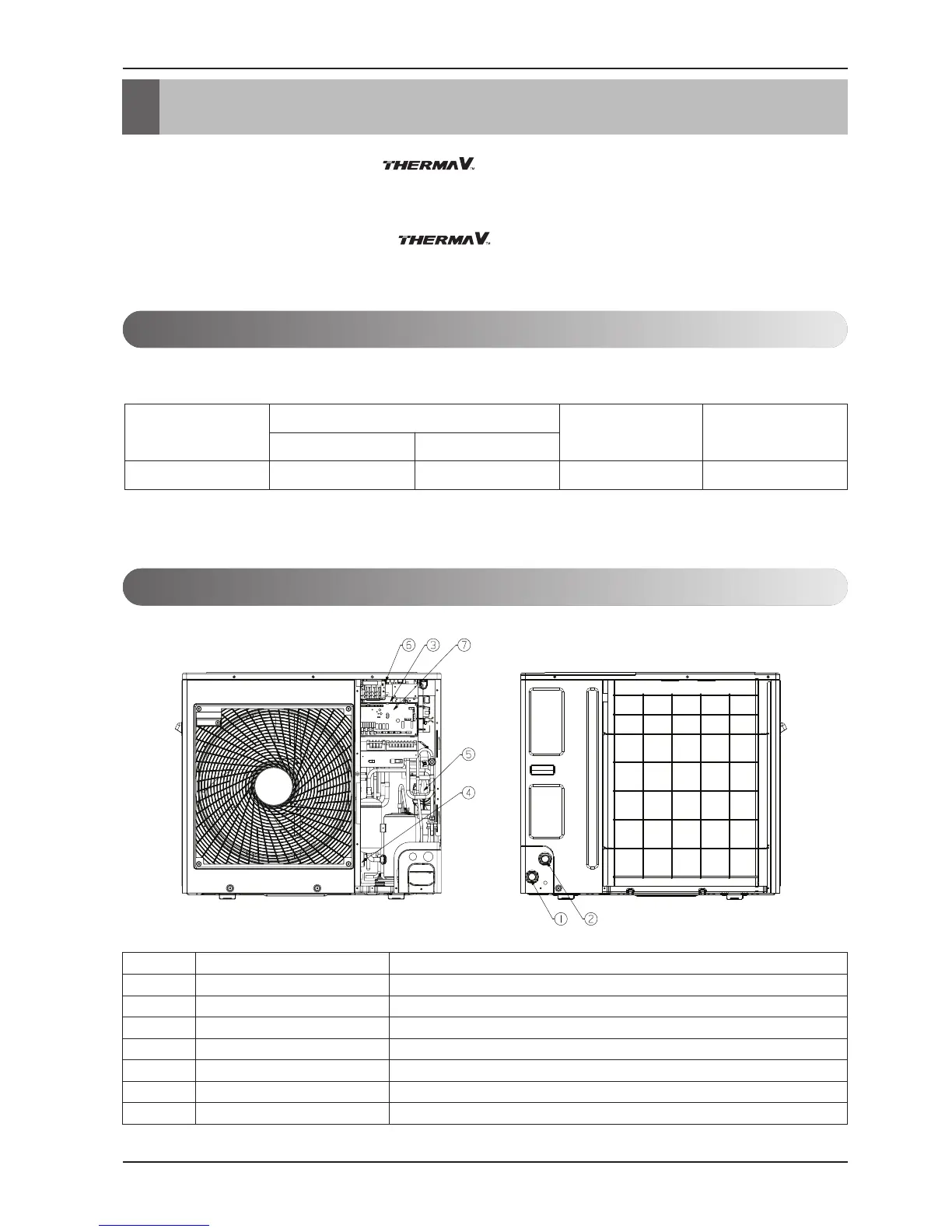

Components
Description
No Name Remarks
1 Entering water pipe PT 25.4mm(Female type)
2 Leaving water pipe PT 25.4mm(Female type)
3 Control box PCB and terminal blocks
4 Plate heat exchanger Heat exchange between refrigerant and water
5 Water pump Circulating the water
6
Inverter Main PCB
This PCB controls the cycle parts of the unit
7
Main PCB
This PCB controls the functioning of the unit
Model Information
