Installation
16 Air-to-Water Heat Pump

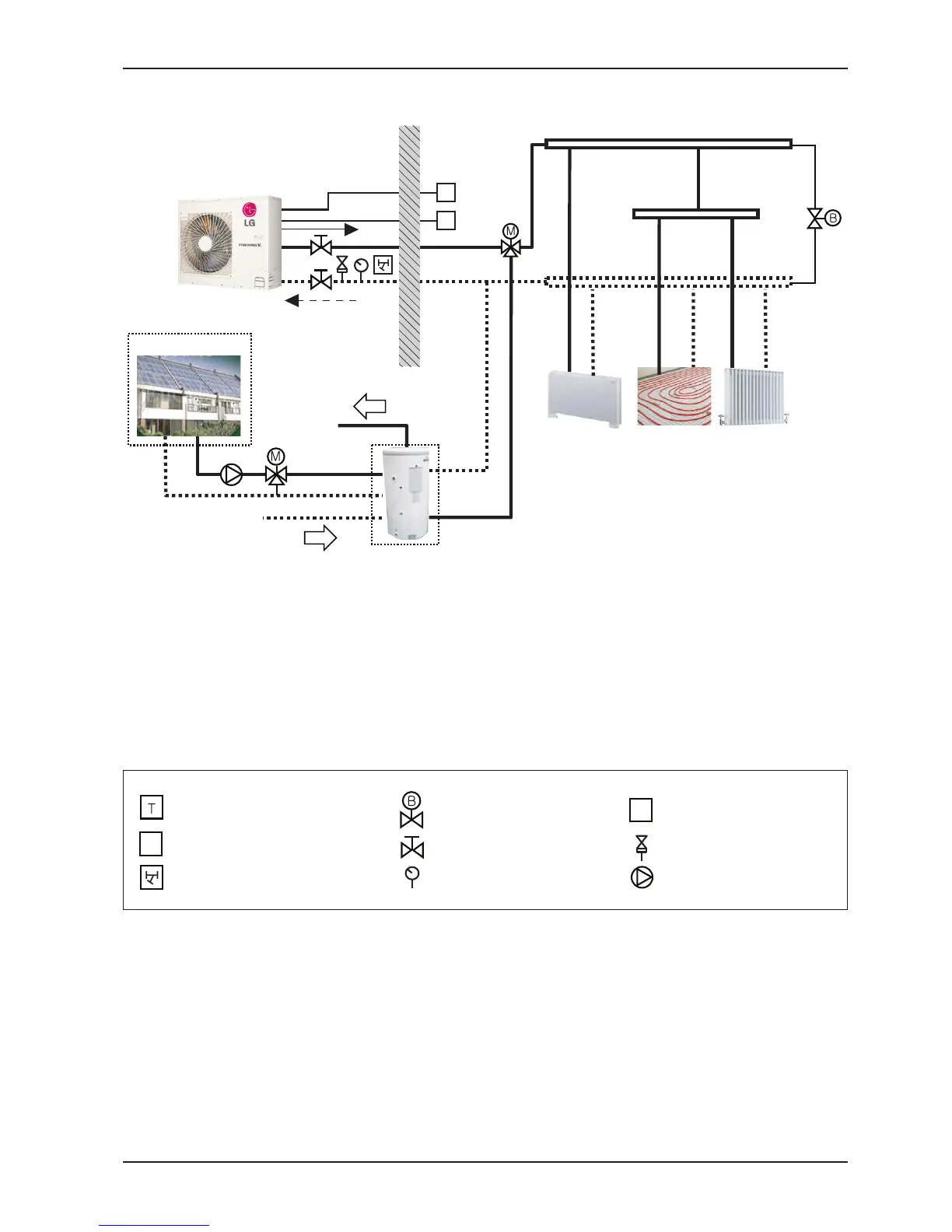

CASE 3: Connecting Solar thermal system
Solar heat source
Hot water
R
T
Outdoor Indoor
Floor heating loopFan coil unit
Sanitary
water
tank
City water
Radiator
Pressure gage(field supply)
Room thermostat(field supply)
By-pass valve(field supply)
Strainer (Field supply Mesh: 1mm X 1mm)
Remote controller
R
Air vent
Shut-off valve(field supply)
Pump(Field supply)
Relife valve(field supply)
A
Note:
• Sanitary water tank
- It should have additional indirect heat exchanger to utilize heat energy by solar thermal system.
• Pump
- Maximum power consumption of pump should be less than 0.25kW.
