Installation check listConguration
System Design ApplicationsIntroduction

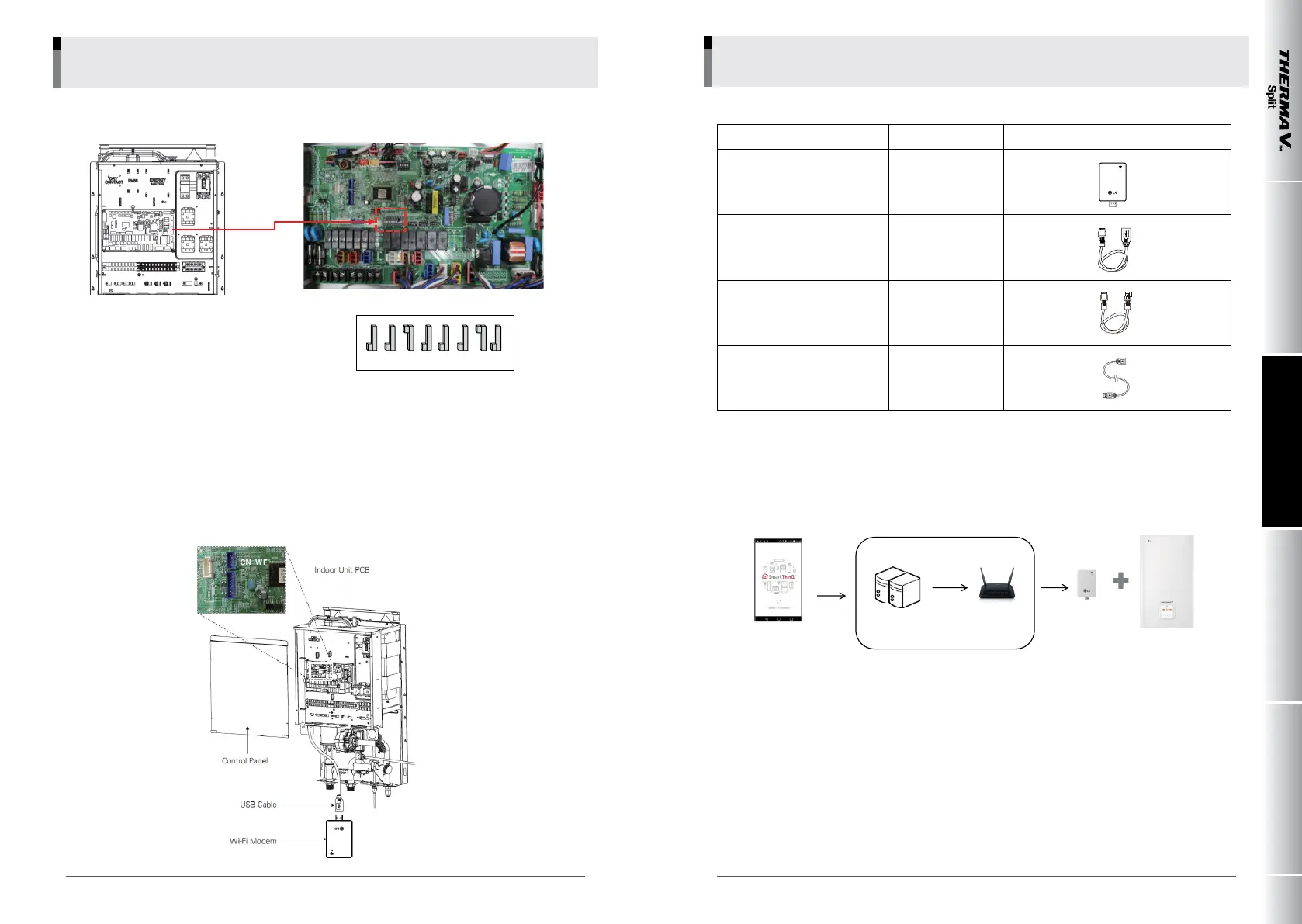

• Dip s/w Setting
OFF
ON
1 23 45678
• Wi- Installation
1. Check if the indoor unit and the power of the outdoor unit are turned off.
2. Open the front panel and the control box of the indoor unit.
3. Connect the USB cable to the indoor unit PCB (CN_WF).
4. Use an extension cable that reaches to the location where you want to install the Wi-Fi modem.
5. Connect the Wi-Fi modem to the USB cable.
6. Attach the Wi-Fi modem to a wall or ceiling near the router. (Use the included double-sided tape to
x it in place.)
Name Quantity Appearance
Wi-Fi Modem 1
USB Cable (60 cm) 1
Extension Cable (50 m) 1
USB Extension Cable (10 m) 1
USB Extension Cable (Sold Separately)
Model: PWYREW000
• Control conguration
ThinQ Server
SmartThinQ
App_Phone
Internet
User’s Router
Wi-Fi Modem
3G/4G,
Wi-Fi
Indoor unit
040 041
_ COMPREHENSIVE APPLICATION AND INSTALLATION MANUAL
LG Electronics

LG THERMA V Split Specifications

General

Refrigerant	R32
Energy Efficiency	A+++
Power Supply	220-240V, 50Hz
Sound Power Level	Varies by model
Noise Level (Outdoor)	45 dB - 55 dB
Indoor Unit Dimensions (WxHxD)	Varies by model
Outdoor Unit Dimensions (WxHxD)	Varies by model
Indoor Unit Weight	Varies by model
Outdoor Unit Weight	Varies by model
Air Flow (Indoor)	Varies by model
