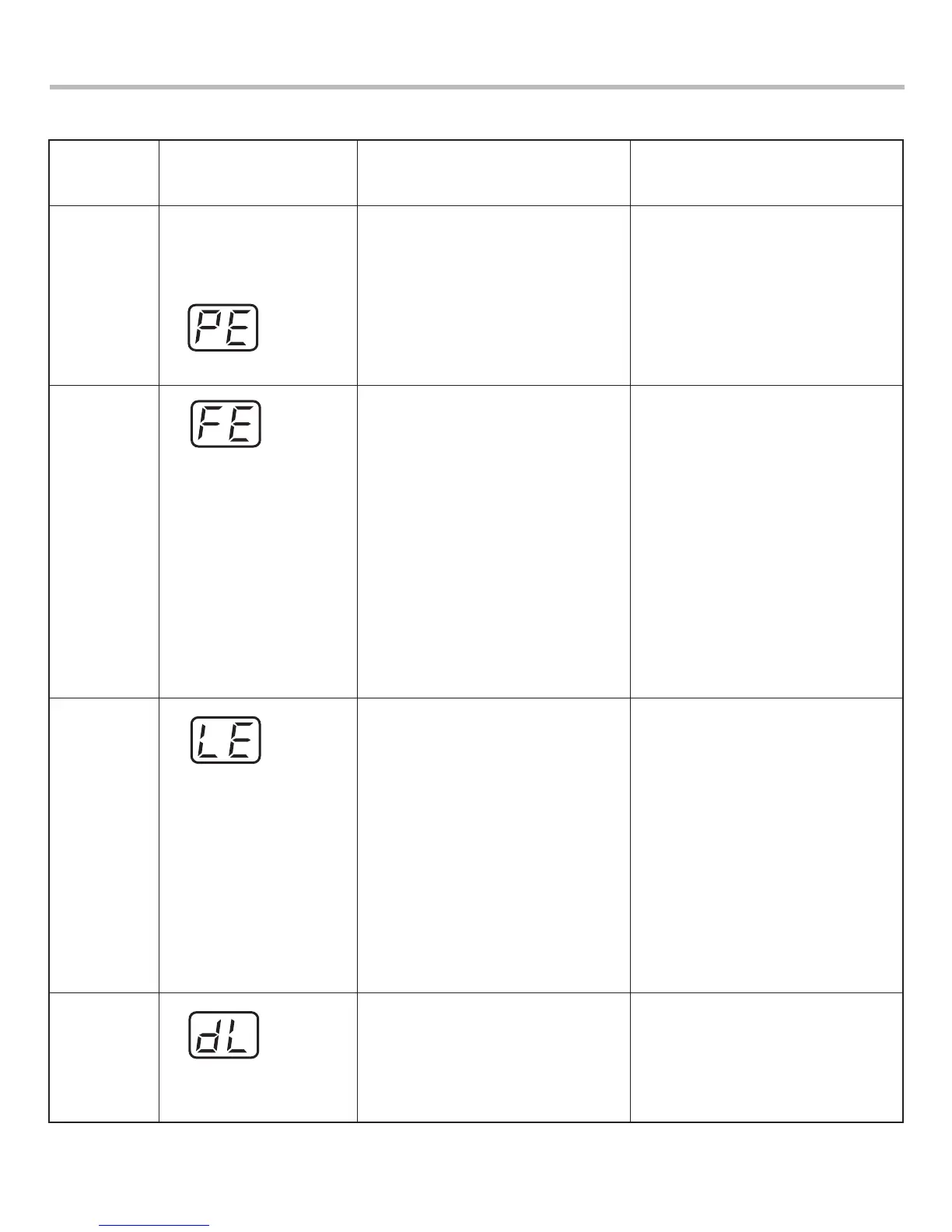

LG WT1201C Series Service Manual

32
ERROR
ERROR DECISION
BASIS
CAUSE FOR ERROR
OCCURRENCE
REMEDY
PRESSURE
SENSOR
OVER
FLOW
ERROR
MOTOR
ERROR
LID
LOCK
ERROR
· Pressure switch has a
bad connection or the
switch has failed.
· Check the connections at the
pressure switch and at the
BLUE 6-pin connector at the
main board.
· Check the pressure sensor
(21~23Ω ±10%) and
connection
· Check the valves to be sure
there is no input leakage. Then
check the drain hose and make
sure the drain pipe is between
0.9 ~ 1.2 m (36 and 48 inches)
above the floor.
· Check for blockages and leaks
in the air hose between the tub
and the pressure switch.
· Check and repair any air
leakages at the air hose
connector on the outer tub and
at any connecting parts.
· Check the connections at the hall
sensor and at the BLUE
6-pin connector on the main board.
· Check the connections at the
stator and at the yellow 3-pin or
BLUE 6-pin connector on the
main board. Test the stator to
determine it is not defective.
· Test hall sensor to determine it
is not defective.
· Turn the drum to verify the
bearings are not locked.
· Check the lid lock SW trying
locking
· Check the balance of the lid
· Reseat the connector.
· Replace the switch.
· Install the drain hose between
0.9 ~ 1.2 m (36 and 48 inches)
above the floor.
· Replace pressure sensor
switch
· Remove the foreign objects
in pressure sensor switch
air hose.
· Replace the stator if necessary.
· Replace the hall sensor if
necessary.
· Replace the bearings if
necessary.
· If trying, replace the Lid lock
SW or not trying replace the
Main PCB
· Replace the lid or se the
balance

LG WT1201C Series Specifications

General

Style	Top-Loading
Color	Chrome
Washer Capacity	4.3 cu ft
Dryer Capactity	-
Max Spin Speed	1100 RPM
Spin Speeds	Low
Spin Class	C
Number of Cycles	8
Cycle Selections	Mixed 40°
Wash	Quick Wash
Options	ColdMotion technology
Hours	Extra Power / Boost Option
Noise level
Temperature Selections	Cold
Energy Class	-
Annual Energy Consumption	-
Annual Water Consumption	-
Water Consumption Per Cycle	-
Voltage	120 V
Frequency	-
Current	10 A

Weight and Dimensions

Depth	28 3/8 in
Height	40 5/32 in
Width	27 in
Net Weight	134.2 lbs
