14 Chapter 3 Unpacking And Installation
Liebert.CRV Series Air Conditioner User Manual
3.3 Handling The Unit While Packaged
If possible, transport the packaged unit using a fork lift or a pallet jack; otherwise use a crane with slings and
spreader bars.
If using a fork lift or pallet jack, make sure the forks (if adjustable) are spread to the widest allowable distance to
still fit under the pallet. Also, make sure the fork length is suitable for the unit length.
When moving the packaged unit with a fork lift or pallet jack, lift the unit from either end of the pallet.
When handling the packaged unit with a fork lift or pallet jack, the unit shall not be lifted any higher than 51mm ~
102mm) off the ground. All by-standing personnel shall be no closer than 3.7m to the handled packaged unit.
If circumstances require the unit to be lifted higher than 102mm great care shall be exercised and all by-standing
personnel are to be no closer than 5m to the lift point of the unit.
3.4 Unpacking The Unit
Move the product to the place closest to the final installation site before unpacking the unit.
Follow the procedures below to unpack the unit:
1. Removing the side boards and top cover.
1) CRV series air conditioner uses the international packaging. You can use a hammer or straight screwdriver to
straighten the connection hook between the side boards and top cover, as shown in Figure 3-2.

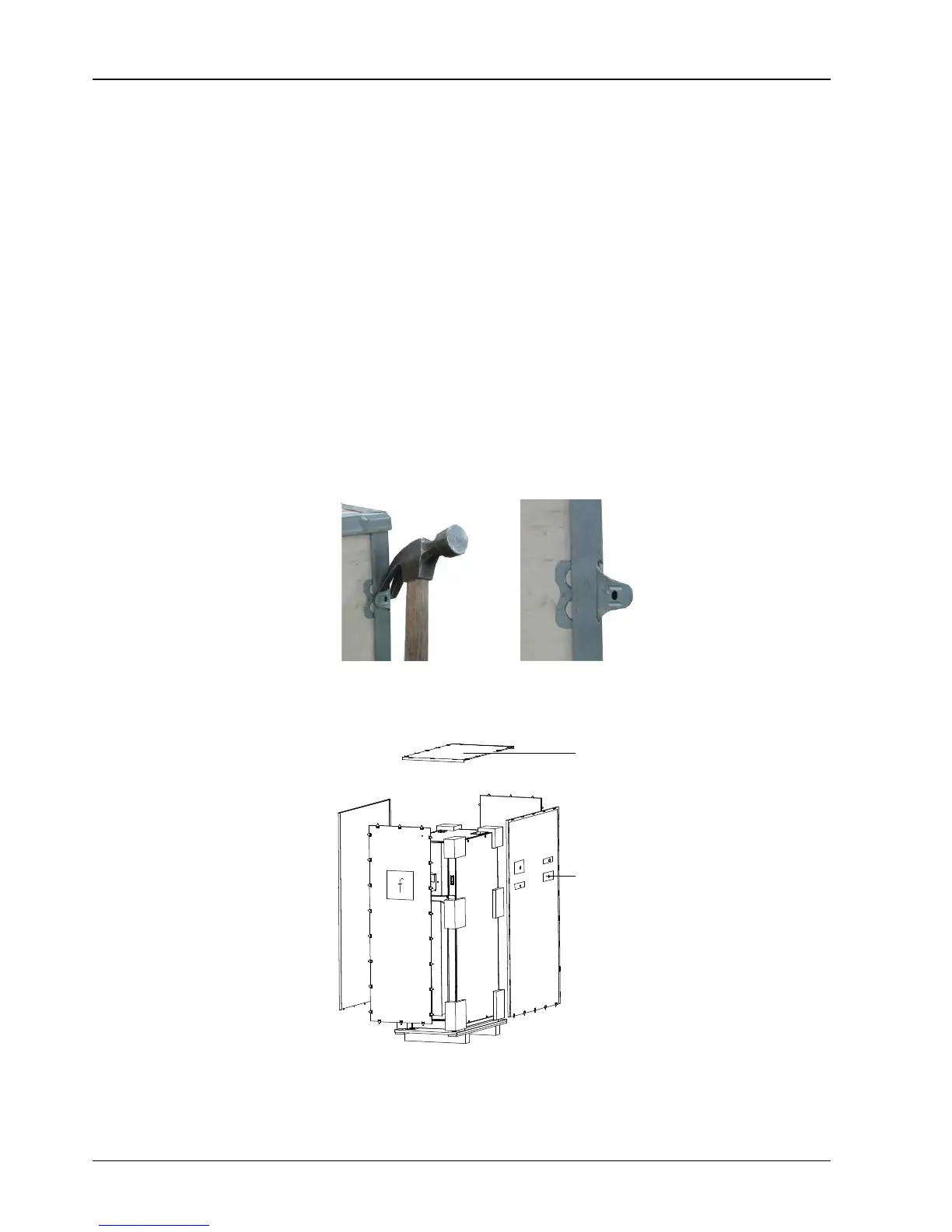

Figure 3-2 Straighten the hook
2) As shown in Figure 3-3, at first, straighten all the hooks that fix the side boards, and remove the four side boards.
At last remove the top cover.
Side panel
Top cover
Figure 3-3 Remove the side boards and top cover
2. Remove the cushion (see Figure 3-4) from the unit, exposing the bag over the unit. The bag may remain in place
for dust and panel protection, or removed for immediate unit installation.
