6 Chapter 1 Preliminary Operations
Liebert.CRV Series Air Conditioner User Manual
1
2
3
4
8
6
5
9
7

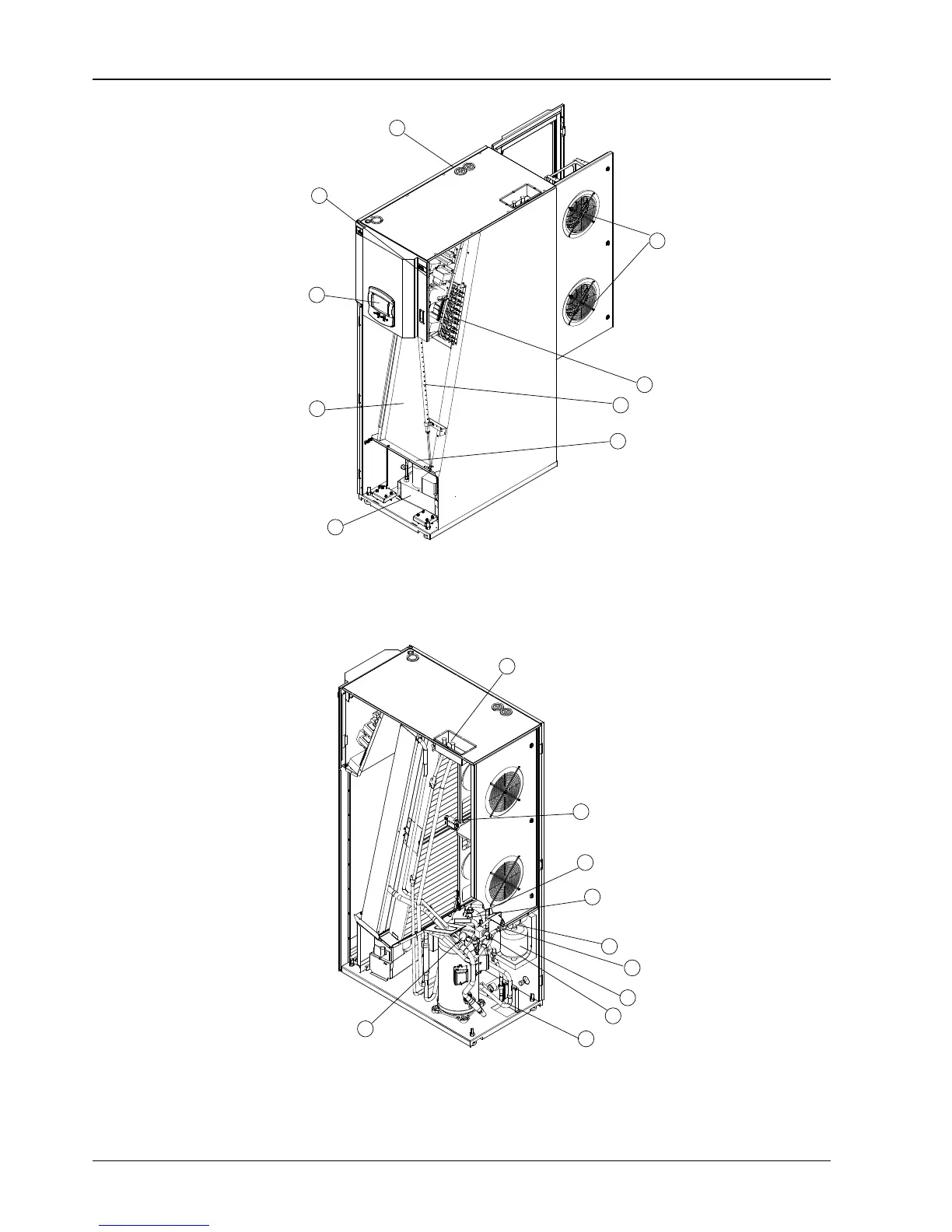

1. iCOM control display
2. Electric Box 3. Evaporator / CW Coil
4. Condensate pump 5. Electric heaters
6. Humidifier distributor 7. Top water connections
8. Drain tray 9. EC fans
Figure 1-6 Component locations
The component locations of Liebert CR020 ~ CR035 air-cooled (A) units are shown in Figure 1-7.
8
1
10
3
4
7
9
2
5
6
1. Termostatic expansion valve 2. Solenoid valve 3. Sight glass 4. Filter dryer
5. Liquid receiver 6. Safety valve 7. Humidity/Temp. sensor 8. Humidifier
9. Top refrigerant connections 10. Bottom refrig. connections
Figure 1-7 Component locations of Liebert CR020 ~ CR035 air-cooled (A) units
