Chapter 1 Preliminary Operations 7
Liebert.CRV Series Air Conditioner User Manual

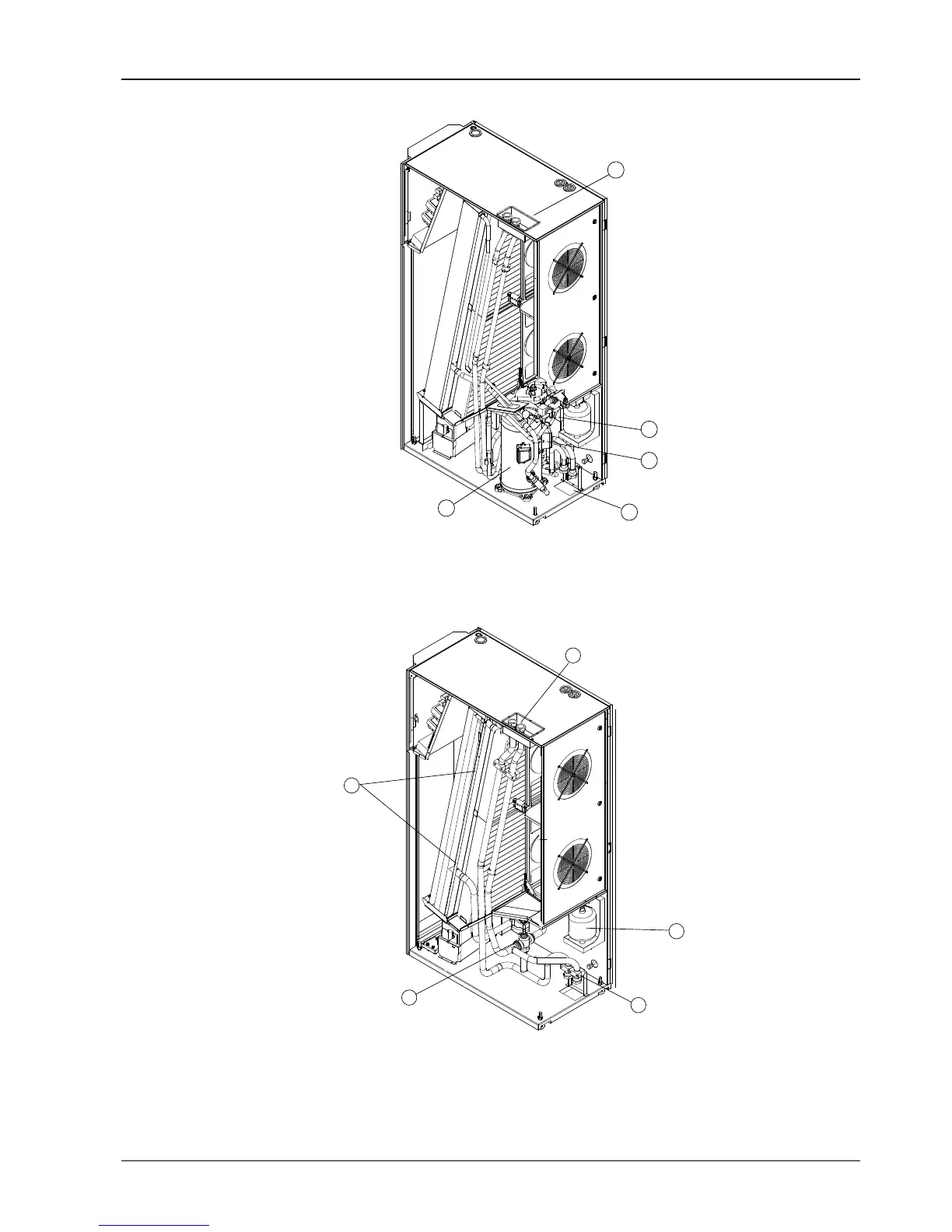

The component locations of Liebert CR020 ~ CR035 water/glycol-cooled (W) units are shown in Figure 1-8.
2
3
1
4
5
1. Top Water connections 2. Compressor 3. Water condenser
4. Bottom water connections 5. Three-way water valve
Figure 1-8 Component locations of Liebert CR020 ~ CR035 water/glycol-cooled (W) units
The component locations of Liebert CR040 chilled water unit are shown in Figure 1-9.
2
3
1
5
4
1. Top CW connections 2. Filters 3. Three-way CW valve 4. Bottom CW connections 5. Humidifier
Figure 1-9 Component locations of Liebert CR040 chilled water unit
