2.4 Mechanical Installation
The Liebert
®
GXT3
™
may be installed as a tower or in a rack, depending on space and use
considerations. The Liebert GXT3 may be used alone, as a single UPS, or with up to four battery
cabinets.
2.4.1 Tower Installation
To install the Liebert GXT3 as a tower:
1. Take out support bases from the accessories (see Figure 7).

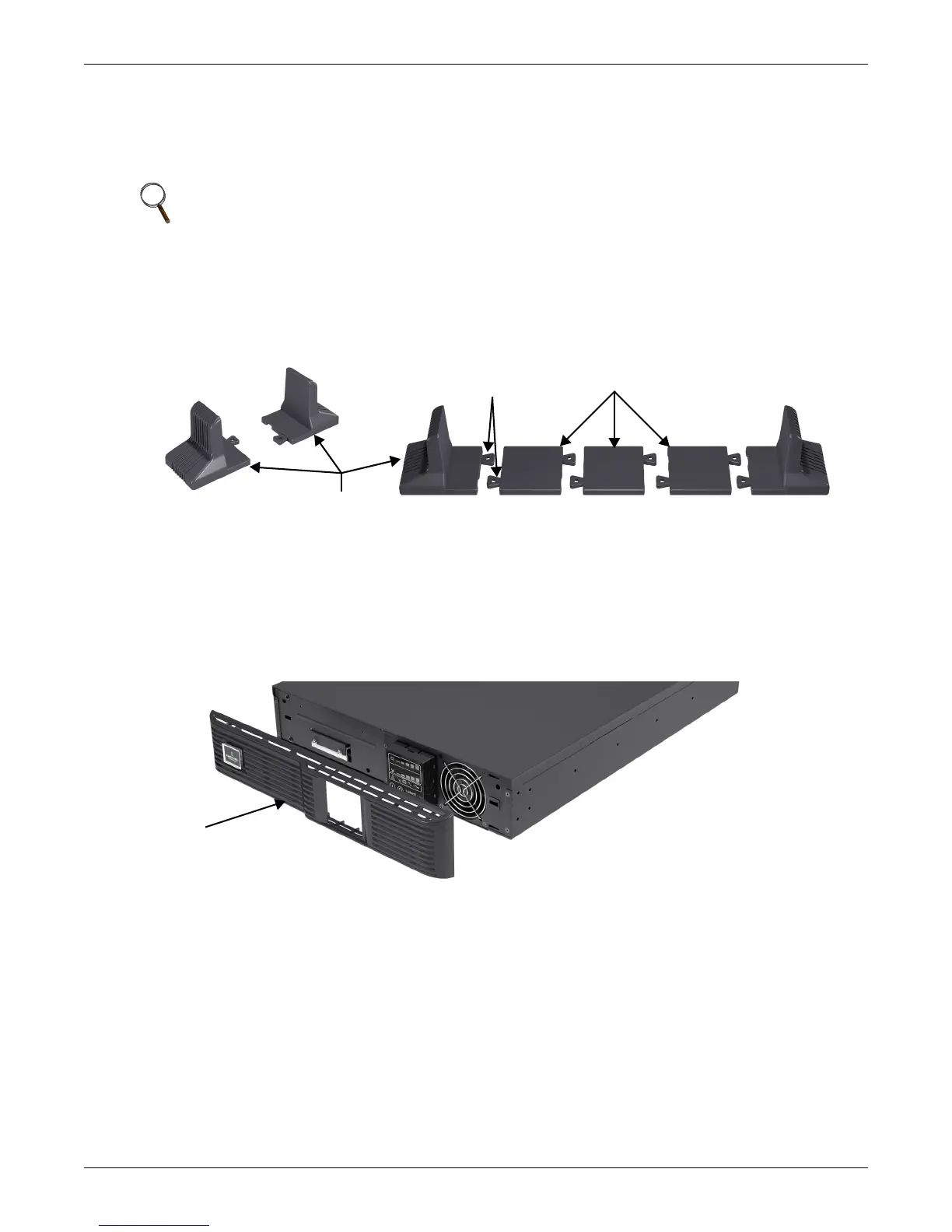

Figure 7 Support bases
2. If optional Liebert external battery cabinets will be connected to the Liebert GXT3, take out the
spacers shipped with the battery cabinet.
3. Connect the spacers and the support bases as shown in Figure 7. Each Liebert GXT3 needs two
assembled support bases, one in the front and one in the rear.
4. Adjust the direction of the operation and display panel and logo on the Liebert GXT3.
a. Remove the front plastic bezel cover as shown in Figure 8.
Figure 8 Remove the front plastic bezel cover
b. Pull the operation and display panel gently, rotate it 90 degrees clockwise and snap it back
into position, as shown in Figure 9.
NOTE
When installing the UPS or making input and output connections, comply with all relevant
safety codes and standards
Support Bases
Spacers
Connectors
Front Plastic
Bezel Cover

Liebert GXT3 Specifications

General

Model	Liebert GXT3
Type	Online Double Conversion
Frequency	50/60 Hz
Power Factor	0.9
Battery Type	Sealed Lead-Acid (SLA)
Form Factor	Tower
Communication Interface	USB, RS-232
Input Voltage	120V
Output Voltage	120V
