Figure 9 Rotate the operation and display panel
c. Pull the logo on the front plastic bezel cover gently, rotate it 90 degrees clockwise and snap it
back into position. The rotated front plastic bezel cover is shown in Figure 10.
d. Replace the front plastic bezel cover on the Liebert
®
GXT3
™
. At this point, the UPS operation
and display panel and logo have been rotated 90 degrees clockwise, which provides upright
viewing for users.
5. Place the Liebert GXT3 and any battery cabinets on the support bases. Each Liebert GXT3 needs
two support assemblies, as shown in Figure 10.

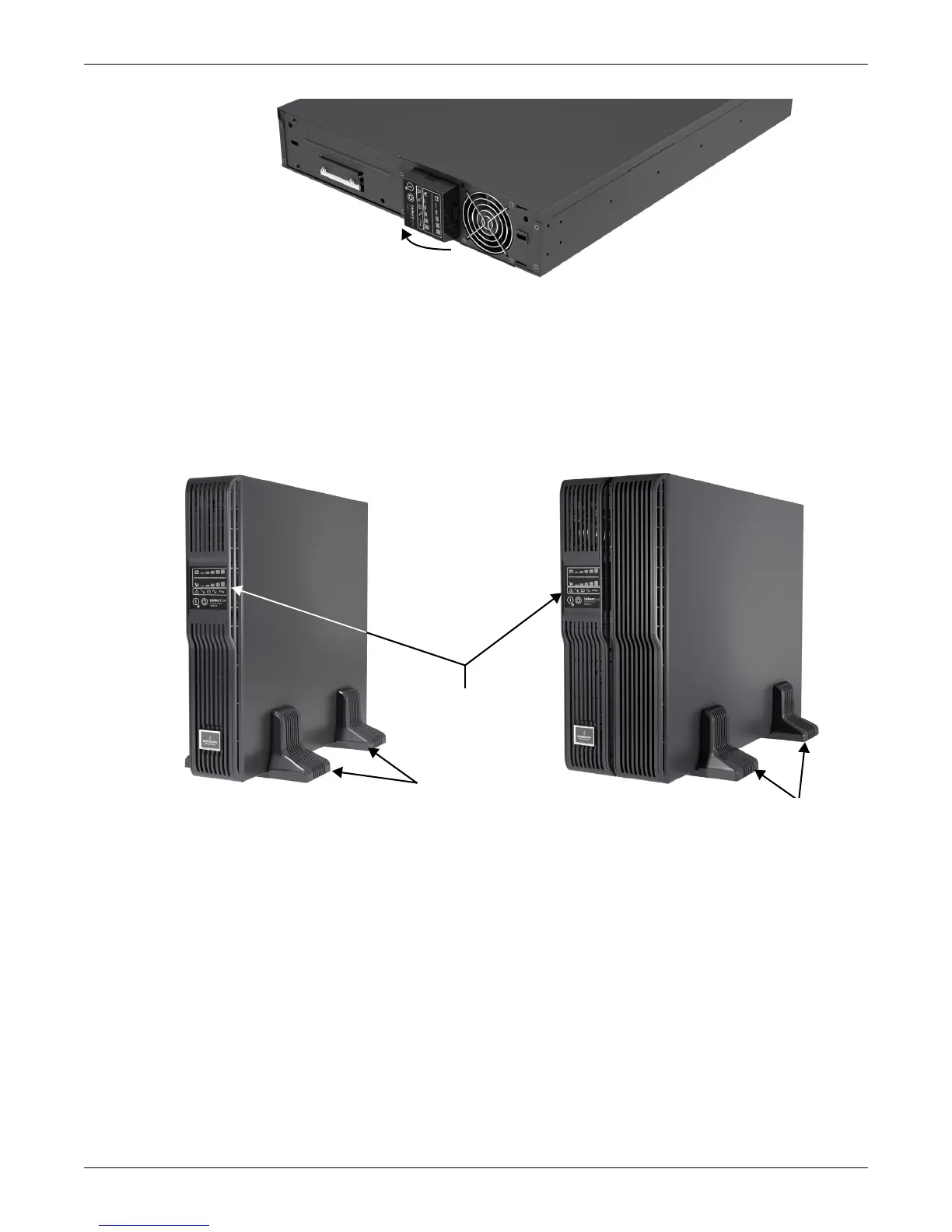

Figure 10 Tower installation
Operation and Display Panel
Rotated Clockwise 90 Degrees
Operation and
Display Panel
Rotated for
Tower Operation
Support Bases
Liebert
GXT3 UPS
Liebert GXT3
UPS and
External
Battery
Cabinet

Liebert GXT3 Specifications

General

Model	Liebert GXT3
Type	Online Double Conversion
Frequency	50/60 Hz
Power Factor	0.9
Battery Type	Sealed Lead-Acid (SLA)
Form Factor	Tower
Communication Interface	USB, RS-232
Input Voltage	120V
Output Voltage	120V
