Liebert PSI XR - Figure 14 Connect Battery Cabinets to UPS; Table 1 Battery Cabinet Connector Color Key

Installation
12

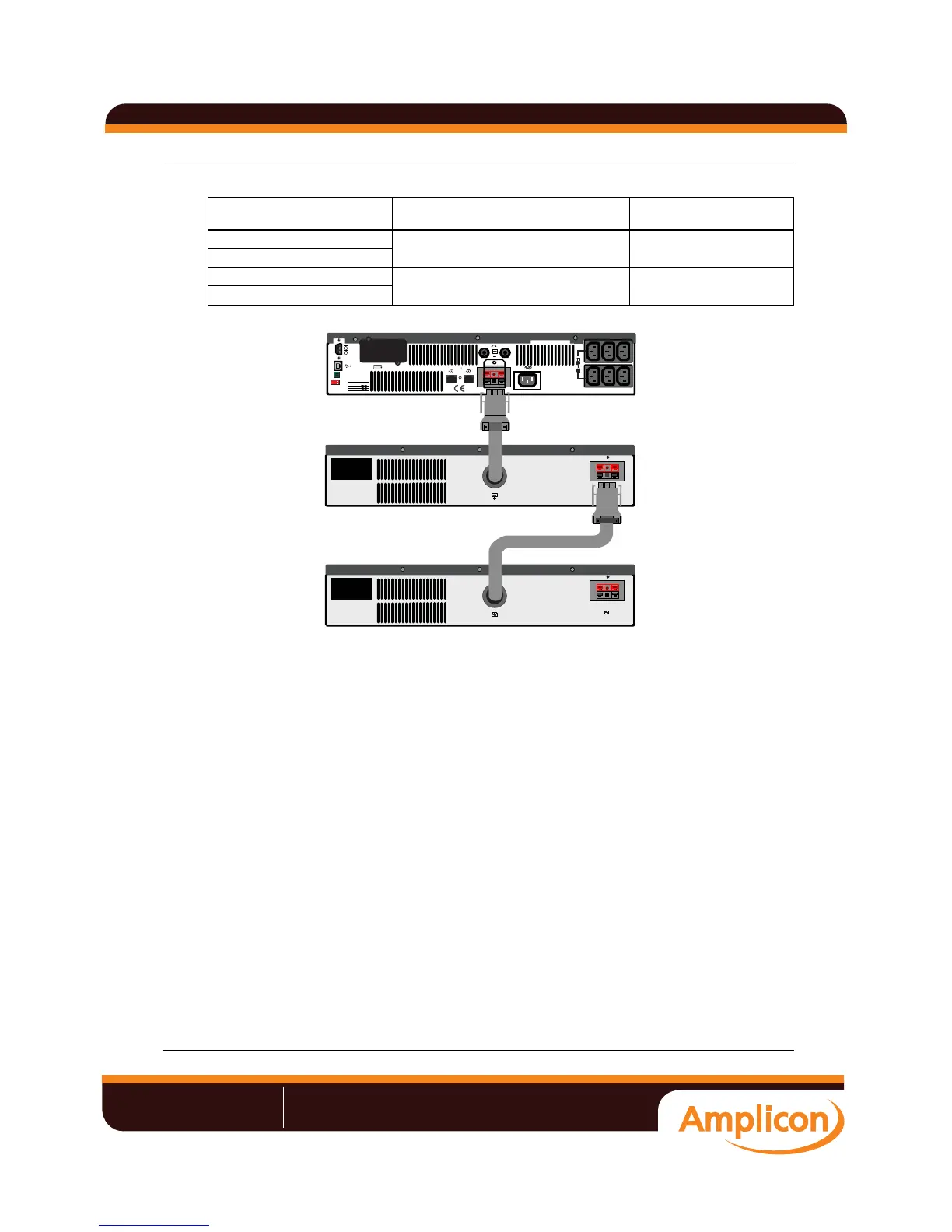

Figure 14 Connect battery cabinets to UPS
See Table 8 for approximate battery run times.
Table 1 Battery cabinet connector color key
UPS Model
Nominal System Voltage
(connector color)
External Battery
Cabinet Model
PS1000RT3-230XR
24VDC (Red) PSRT3-24VBXR
PS1500RT3-230XR
PS2200RT3-230XR
48VDC (Gray) PSRT3-48VBXR
PS3000RT3-230XR
DC 48V
EPO
INPU T OUTPUT
VOLTAGE=110V
VOLTAGE=120V
VOLTAGE=127V
2 1
FUNCTION
