Introduction
4
1.0 INTRODUCTION
The Liebert PSI
™
XR is a 2U, line-interactive UPS that may be installed in a rack or used as a tower
UPS.
Status indicators on the front of the Liebert PSI XR display load level, battery level, buck/boost, site-
wiring fault and battery status. Controls include a combination ON/ Alarm Silence/Manual Self-Diag-
nostic button, an Off button and a Display Status Change button.
The Liebert PSI XR has USB, DB-9 (RS-232/contact closure) and SNMP interface ports. The DB-9
and USB ports provide detailed operating information including voltages, currents, and alarm status
to the host system when used in conjunction with Liebert shutdown software.

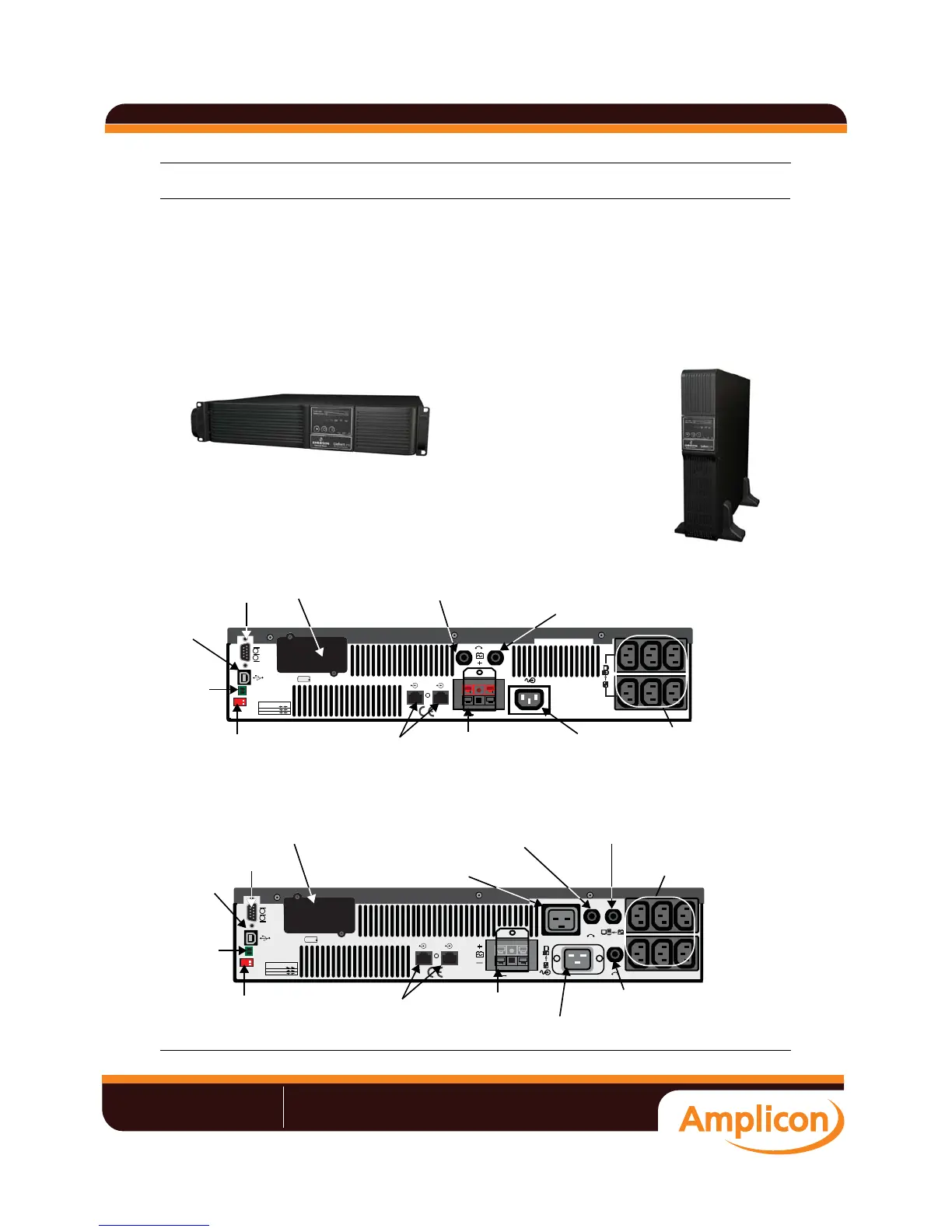

Figure 1 Front view of UPS
Figure 2 1000 and 1500VA—rear view
Figure 3 2200 and 3000VA—rear view
Liebert PSI XR
rack-mount configuration
Display rotates for use as tower
Liebert PSI XR
tower configuration
Display rotates for use in rack
DC 24V
EPO
INPUT OUTPUT
VOLTAGE=220V
VOLTAGE=230V
VOLTAGE=240V
2 1
FUNCTION
RJ-45 Data Line
Connectors
USB
Port
RS-232
(DB-9) Port
Liebert
IntelliSlot
Port
EPO
External Battery
Cabinet Connector
Voltage Configura-
tion DIP Switch
1000VA: 8A Input Circuit Breaker
1500VA: 10A Input Circuit Breaker
1000VA: 8A Output Circuit Breaker
1500VA: 10A Output Circuit Breaker
IEC-320-C14
Input Socket
IEC-320-C13
Output
Sockets
DC 48V
EPO
OUTPUT
INPUT
VOLTAGE=220V
VOLTAGE=230V
VOLTAGE=240V
2 1
FUNCTION
RJ-45 Data Line
Connectors
USB
Port
RS232
(DB-9) Port
EPO
External Battery
Cabinet Connector
Voltage Configuration
DIP Switch
2200VA: 15A Input Circuit Breaker
3000VA: 20A Input Circuit Breaker
IEC-320-C13
Output Sockets
10A Output Circuit Breaker for
Lower Row of Output Sockets
IEC-320-C20 In
p
ut Socket
IEC-320-C19
Output Socket
10A Output Circuit Breaker
for Upper Row of Output Sockets
Liebert
IntelliSlot
Port
