Liebert PW017 User Manual

REV : 3
REV DATE : 12/16
DPN002934
Page :1 /1
DOWNFLOW MODELS
Form No.: DPN001040_REV4

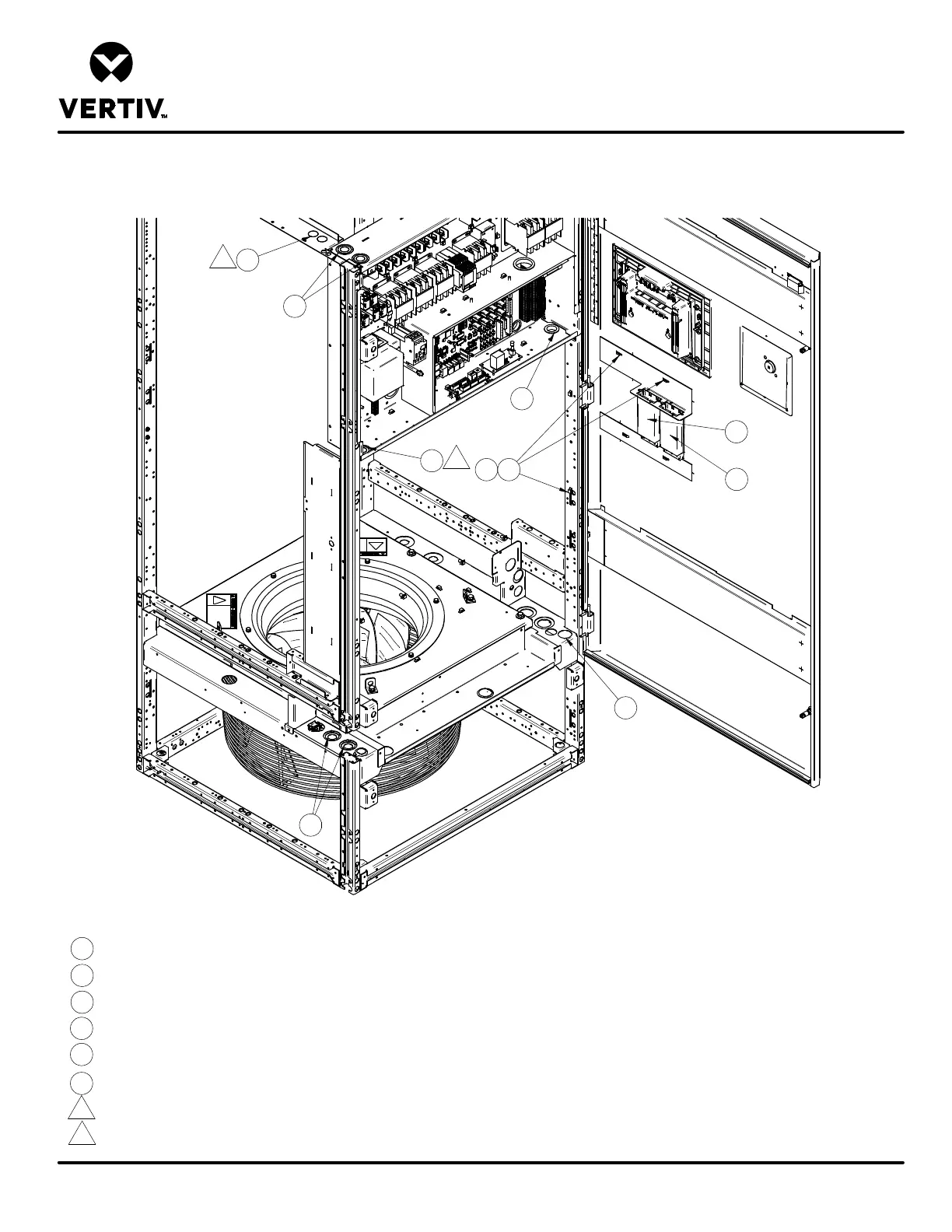

ELECTRICAL FIELD CONNECTIONS
LIEBERT PDX & PCW
1. Opening for field wiring. Suggested entry point for HV field wiring to unit.
2. Opening for field wiring. Suggested entry point for LV field wiring to unit.
3. Vacant IntelliSlot. May contain optional IntelliSlot cards.
4. Populated IntelliSlot. Optional IntelliSlot cards may be placed in either of two supplied IntelliSlot locations.
5. Wire tie anchors. Use to secure field supplied network cables to IntelliSlot.
6. Wire tie anchors. Use to secure customer Ethernet wiring to control board and display.
7. Requires bushing if conduit is terminated below.
8. Wire needs to be routed behind electric box to Low Voltage entrance on bottom of Electric Box.
2
1
1
2
65
2
1
3
4
7
8

Liebert PW017 Specifications

General

Brand	Liebert
Model	PW017
Category	Control Unit
Language	English
