Liebert PW017 User Manual

REV : 3
REV DATE : 12/16
DPN002935
Page :1 /1
UPFLOW MODELS
Form No.: DPN001040_REV4

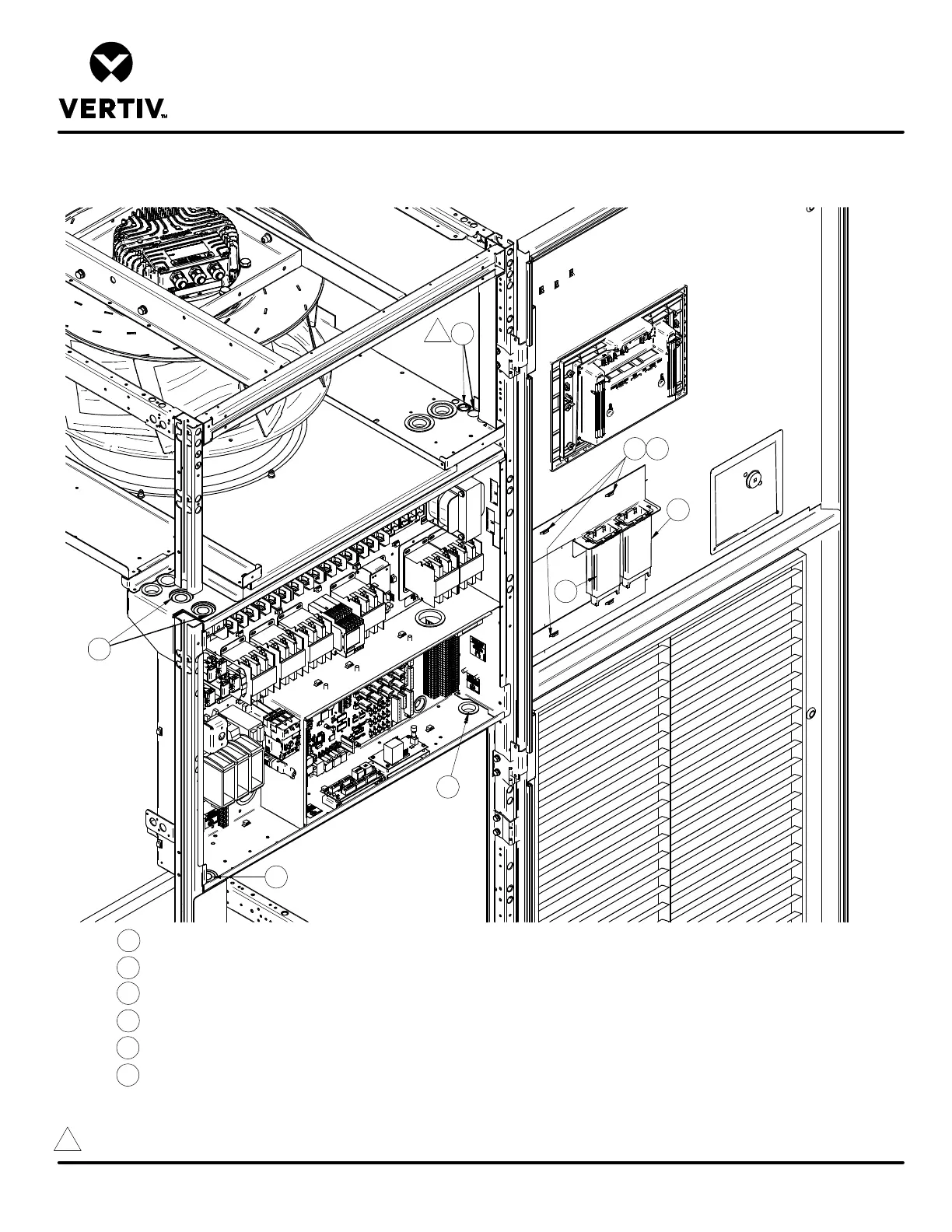

ELECTRICAL FIELD CONNECTIONS
LIEBERT PDX & PCW
1
1
1 Opening for field wiring. Suggested entry point for HV field wiring to unit.
2 Opening for field wiring. Suggested entry point for LV field wiring to unit.
3 Vacant IntelliSlot. May contain optional IntelliSlot cards.
4 Populated IntelliSlot. Optional IntelliSlot cards may be placed in either of two supplied IntelliSlot locations.
5 Wire tie anchors. Use to secure field supplied network cables to IntelliSlot.
6 Wire tie anchors. Use to secure customer Ethernet wiring to control board and display.
2
2
4
3
5 6
Notes:
1. Wire needs to be routed outside Electric Box to Low Voltage knockout on bottom of Electric Box.
1
