Liebert PW017 User Manual

REV : 8
REV DATE : 12/16
DPN002936
Page :1 /1
DOWNFLOW MODELS
Form No.: DPN001040_REV4

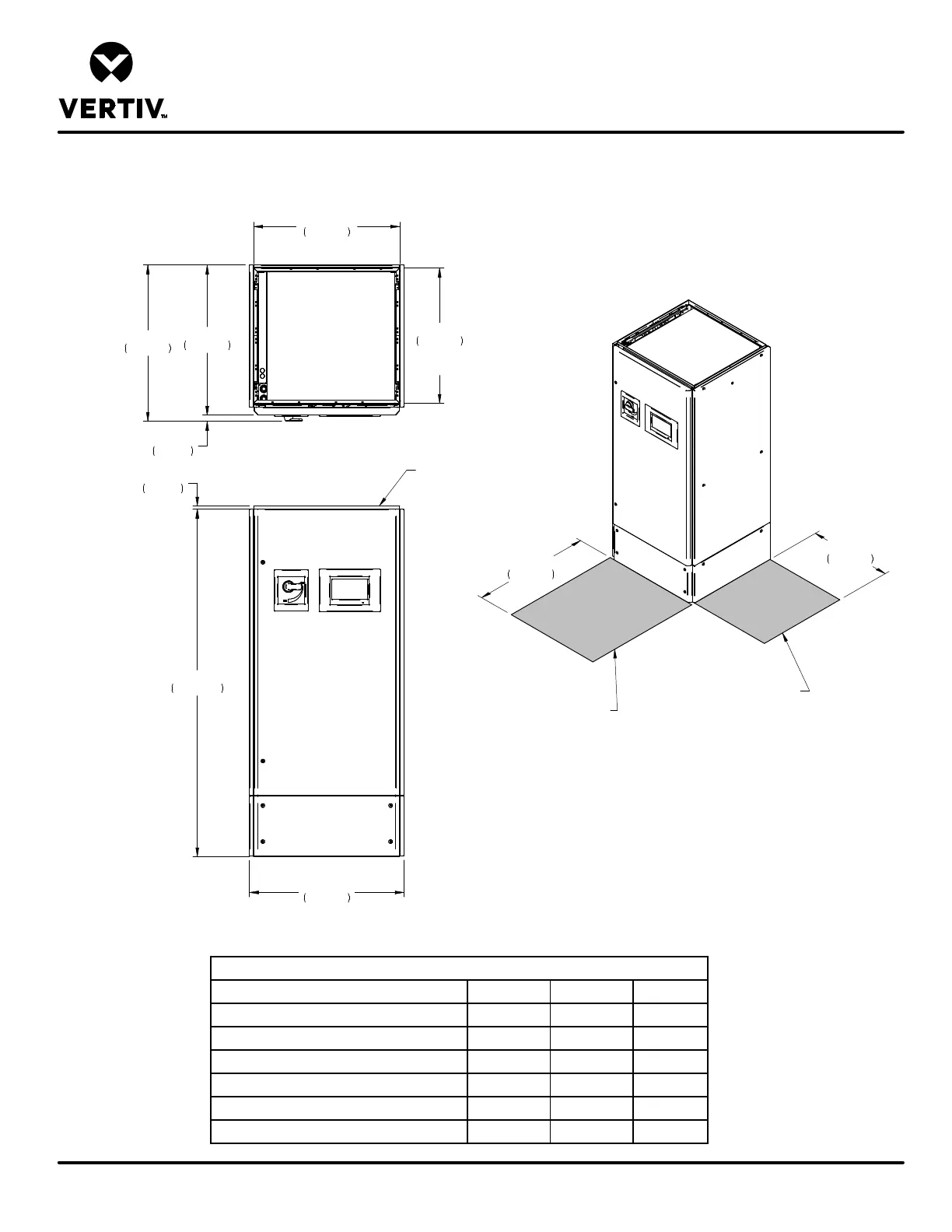

CABINET DIMENSIONAL DATA
LIEBERT PDX & PCW
Shaded area indicates a
recommended minimum
clearance be provided
for component access.
Front View
Liebert PDX Model No. PX011 PX018-023 PX029
Air Cooled 600 (272) 670 (304) 700 (317)
Air Cooled w/dual cool 700 (317) 750 (340) 790 (358)
Water/Glycol 620 (281) 690 (313) 720 (327)
GLYCOOL™ or Water/Glycol w/dual cool
720 (327) 770 (349) 810 (367)
Liebert PCW Model No. PW011 PW017 PW029
Chilled Water 575 (260) 600 (272) 650 (294)
DRY WEIGHT lb (kg) APPROXIMATE
Recommended clearance for
unit installation and for servicing
these components if equipped:
Reheat, Filter Clog Switch,
Water/Glycol Reg Valve,
Econ-O-Coil Valve, and Smoke
Detector.
Top View
77 9/16"
1970mm
34 1/2"
876mm
3/4"
19mm
33 1/2"
852mm
34 7/8"
886mm
1 3/8"
34mm
24"
610mm
34"
864mm
Optional Field installed
Duct Flange
32 9/16"
827mm
Duct Flange
30 3/16"
767mm
Duct
Flange
