UPFLOW MODELS
Form No.: DPN001040_REV4

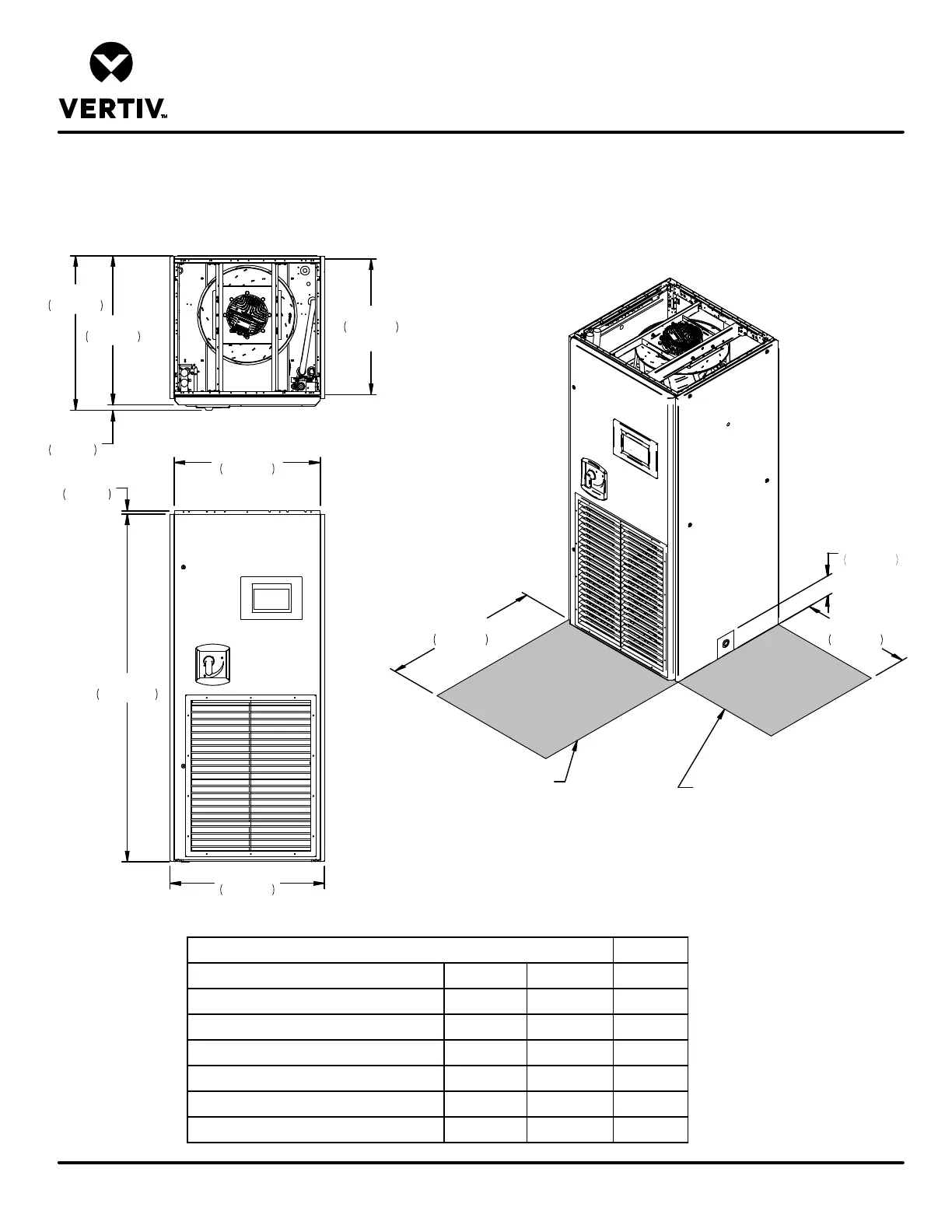

CABINET DIMENSIONAL DATA
LIEBERT PDX & PCW
Note: Unit with front return
shown. Bottom return with
rear return floorstand is also
available (24-1/8" height
rear return floorstand is
required for use with bottom
return unit).
Liebert PDX Model No.
PX011 PX018-023 PX029
Air Cooled
600 (272) 670 (304) 700 (317)
Air Cooled w/dual cool
700 (317) 750 (340) 790 (358)
Water/Glycol
620 (281) 690 (313) 720 (327)
GLYCOOL™ or Water/Glycol w/dual cool
720 (327) 770 (349) 810 (367)
Liebert PCW Model No.
PW011 PW017 PW029
Chilled Water
575 (260) 600 (272) 650 (294)
DRY WEIGHT lb (kg) APPROXIMATE
Top View
Front View
34 1/2"
877mm
33 1/4"
845mm
1 1/4"
32mm
30 1/4"
768mm
Duct Flange
32 5/8"
827mm
Duct Flange
34 1/2"
876mm
77 1/2"
1970mm
3/4"
19mm
34"
864mm
24"
610mm
Shaded area indicates a
recommended minimum
clearance be provided for
component access.
Recommended Clearance for
unit installation and for servicing
these components if equipped:
Reheat, Filter Clog Switch,
Econ-O-Coil Valve, or Gravity Drain
Connections.
5 5/8"
143mm

Liebert PW017 Specifications
