REV : 4
REV DATE : 12/16
DPN002970
Page :1 /1

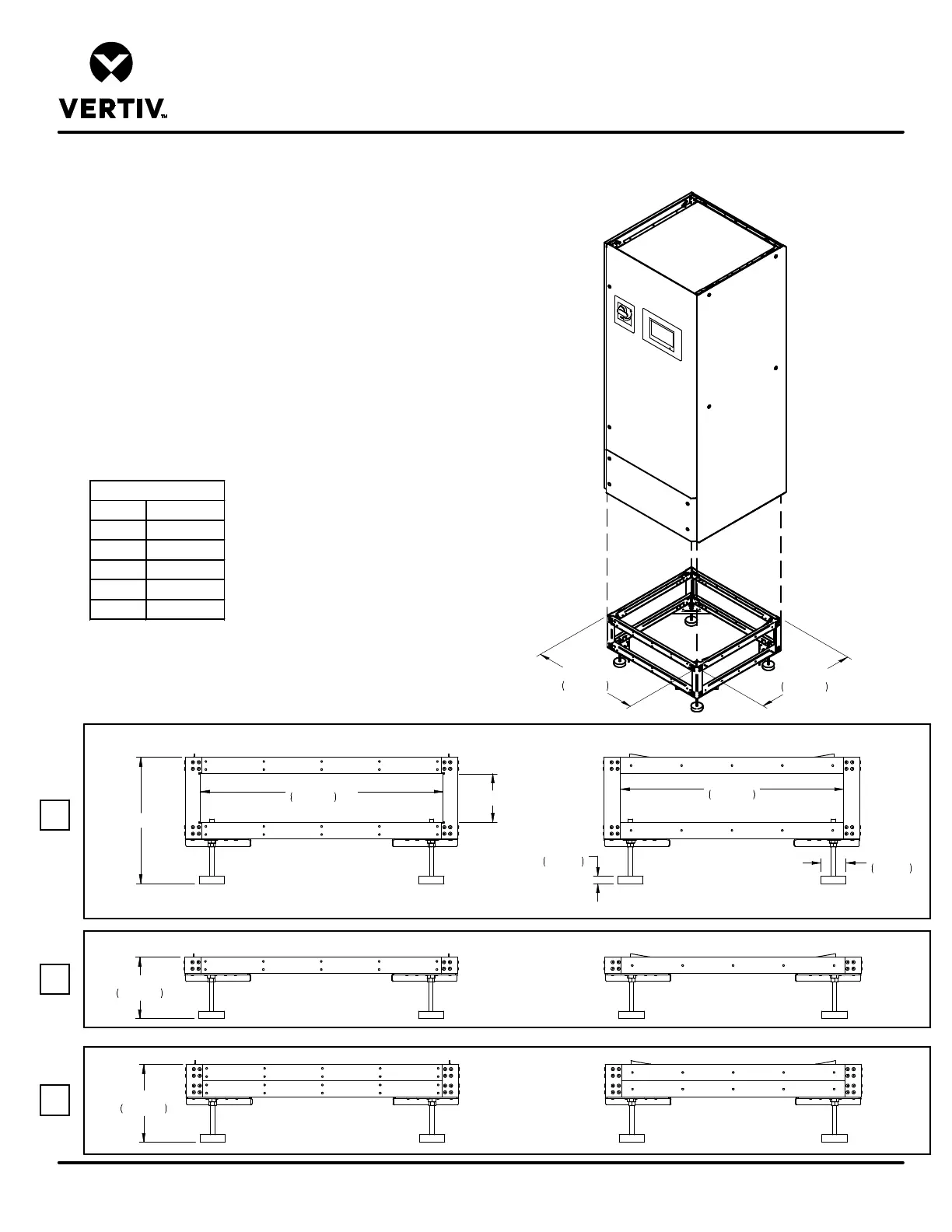

DIMENSIONAL DATA
Form No.: DPN001040_REV4
FLOORSTAND & FLOOR PLANNING
LIEBERT PDX & PCW
32 5/8"
829mm
30 11/16"
779mm
FRONT VIEW
FRONT VIEW
FRONT VIEW SIDE VIEW
SIDE VIEW
SIDE VIEW
6"
152mm
9"
229mm
NOTES:
1. Leveling feet are provided with
u
1-1/2" (38mm) adjustment for all floorstands.
2. Using the table above and the boxes to the left of the floorstand views
select one floorstand size. If you have any difficulty please contact
your Liebert Sales Representative for assistance.
A B
12 (305) 2-3/4 (70)
15 (381) 5-3/4 (146)
18 (457) 8-3/4 (223)
21 (533) 11-3/4 (299)
24 (610) 14-3/4 (375)
28 1/2"
724mm
ID
Typ.
B
A
26 9/16"
675mm
Typ.
7/8"
23mm
Typ.
3"
76mm
Typ.
