Liebert PW017 User Manual

REV : 7
REV DATE : 12/16
DPN002971
Page :1 /2
Form No.: DPN001040_REV4
LIEBERT PDX & PCW
Liebert PDX Model No.
PX011 PX018-023 PX029
Air Cooled
700 (318) 770 (349) 800 (317)
Air Cooled w/dual cool
800 (363) 850 (386) 890 (358)
Water/Glycol
720 (327) 790 (358) 820 (327)
GLYCOOL™ or Water/Glycol w/dual cool
820 (372) 870 (395) 910 (367)
Liebert PCW Model No.
PW011 PW017 PW029
Chilled Water
675 (306) 700 (318) 750 (340)
Shaded area indicates a
required minimum
clearance for filter removal,
includes any nonremovable
floor supports.
Recommended Clearance for
unit installation and for servicing
these components if equipped:
Reheat, Filter Clog Switch,
Econ-O-Coil Valve, or Gravity Drain
Connections.
34 1/2"
876mm
77 9/16"
1970mm
3/4"
19mm
32 9/16"
827mm
DUCT FLANGE
1 1/4"
32mm
30 1/4"
768mm
DUCT FLANGE

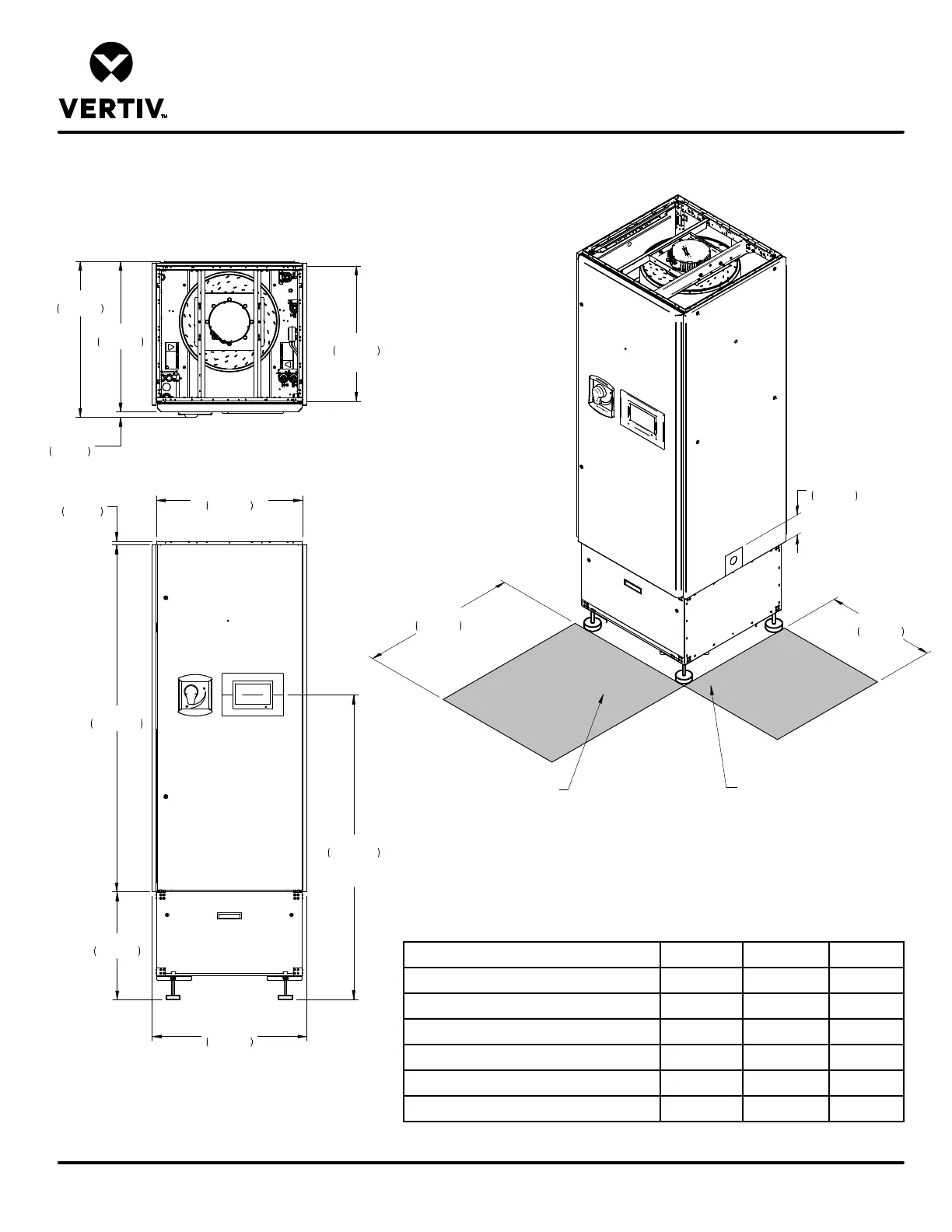

FRONT VIEW
TOP VIEW
68 1/16"
1728mm
LINE OF SIGHT
HEIGHT
34 1/2"
877mm
33 1/4"
845mm
34"
864mm
24"
610mm
24"
610mm
5 5/8"
143mm
UPFLOW REAR RETURN MODELS
CABINET DIMENSIONAL DATA

Liebert PW017 Specifications

General

Brand	Liebert
Model	PW017
Category	Control Unit
Language	English
