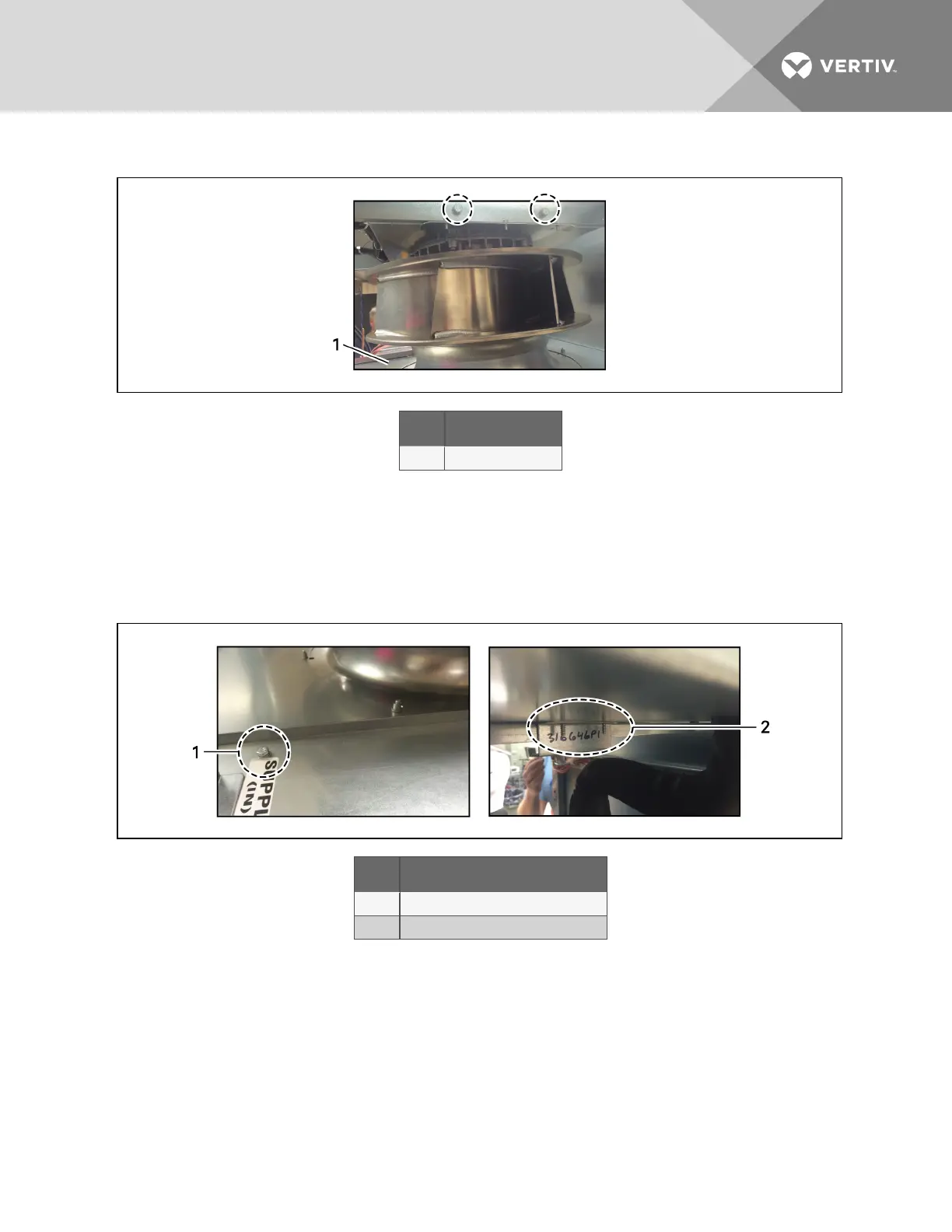

Figure 9.5 Mounting-plate bolt location
Item Description
1 Orifice mounting plate
6. Locate the 4 bolts on the intake-orifice mounting plate, and example is shown in Figure 9.6
below. These bolts are front-accessible with 2on the left side and 2on the right side of the
plate.
7. Loosen these 4 bolts and lower the orifice mounting plate so that it rests on the brackets, one
of the brackets is shown in Figure 9.6 below.
Figure 9.6 Bolts to loosen and Brackets on which the plate will rest
Item Description
1 Bolt on mounting plate to loosen
2 Bracket on which mounting plate will rest
Vertiv | Liebert® PDX™ and PCW™ Installer/User Guide | 72
