10 GRILLE FITTINGS
• Do not mount exhaust grille within 4 ft (1.2 m) (horizontally) of a stove to prevent grease from entering the
unit.

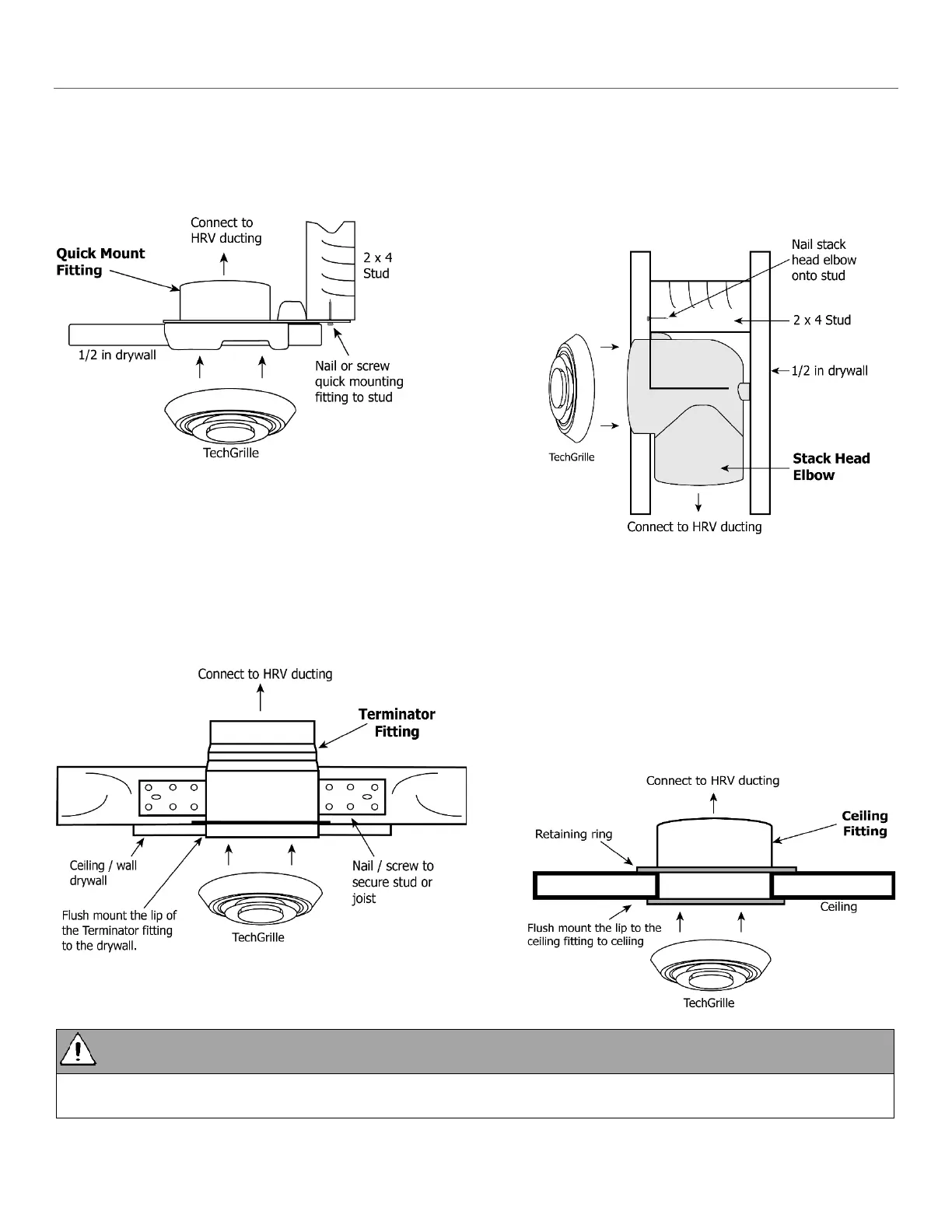

Quick Mount Fitting (Part# 99-QM6)
• Use this rough-in fitting before the drywall
is installed
.
• Nail fitting onto the stud.
•
Terminator Fitting (Part# 99-TM 4/5/6)
• Use this rough-in fitting before the drywall is
Installed
.
• Nail or screw fitting onto the stud or joist.
• Available sizes: 4 in, 5 in, and 6 in.
• Adapts to ridged and flex ducting
• Strong attachment for grilles, either vertically
Stack Head Elbow (Part# 99-WF 4/6)
• Use this rough-in fitting before the drywall is
installed.
• This fitting is ideal for running ducting
through 2 x 4 (min.) studded walls.
• Nail to stud.
•
Available sizes are 4 in. and 6 in.
Suspended Ceiling Fitting (Part# 99-CF6)
• Use this fitting for ceiling tiles or
finished/installed drywall.
• Cut a hole through the ceiling tile, insert the
fitting and use the retaining ring to hold the
fitting in place.
• For finished/installed drywall, use caulking
around the lip if you do not have access to
attach the retaining ring.
• Available size: 6 in.
