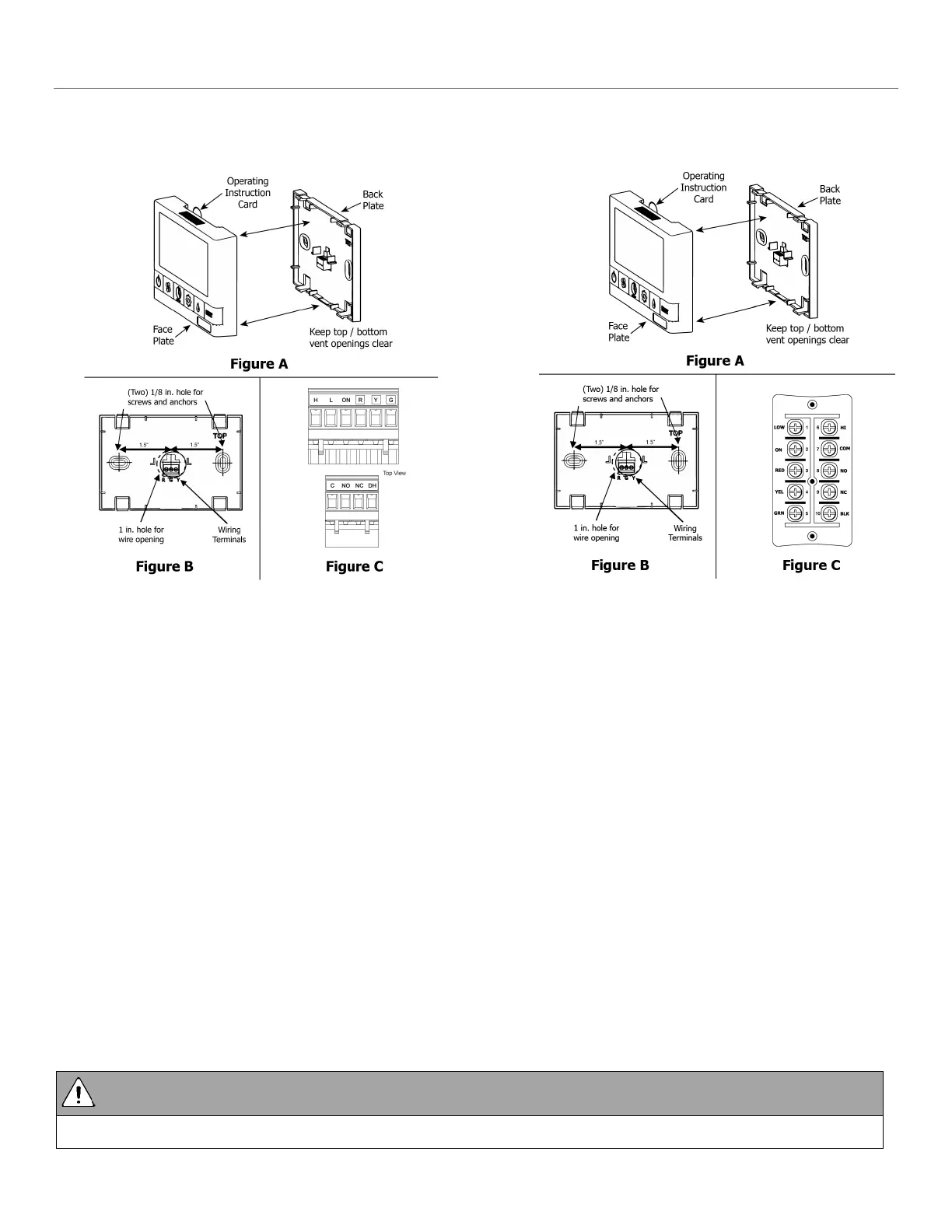

14 MAIN CONTROL INSTALLATION (99-DXPL03)
The 99-DXPL03 main control must be surface mounted onto a wall. Only one main control should be installed into a
ventilation system.
Installation:
1. Remove the operating instructions card from the top of the main control (figure A).
2. Carefully separate the face plate and the back plate by firmly pulling it apart (figure A).
3. Position the back plate of the control in the desired location on the wall and mark the wall for the desired screw holes
(figure B).
4. Remove the back plate from the wall and mark the hole for the wires in between the two screw holes (figure B).
5. Drill two holes for the screws and wall anchors and drill one hole for the wires in between the two screw holes (figure
B).
6. Pull the 3 wire 20 gauge (min.), 100 ft length (max.), through the opening in the wall.
7. Connect the wires to the R, G, and Y terminals on the back plate (figure B).
8. Using the two supplied screws and anchors, install the back plate on the wall.
9. Attach the face plate to the back plate (figure A).
10. Install the operating instructions card in the top of the main control (figure A).
11. Connect the 3 wires 20 gauge (min.), 100 ft length (max.), to the 3 (RED), 4 (YEL), and 5 (GRN) terminals located on
the HRV terminal block (figure C).
Attention
• Use care when separating or attaching the face plate to avoid damaging the contact pins.
DXPL03 with TB04 Terminal Block
DXPL03 with TB01 Terminal Block
