LifeSpan C2 User Manual

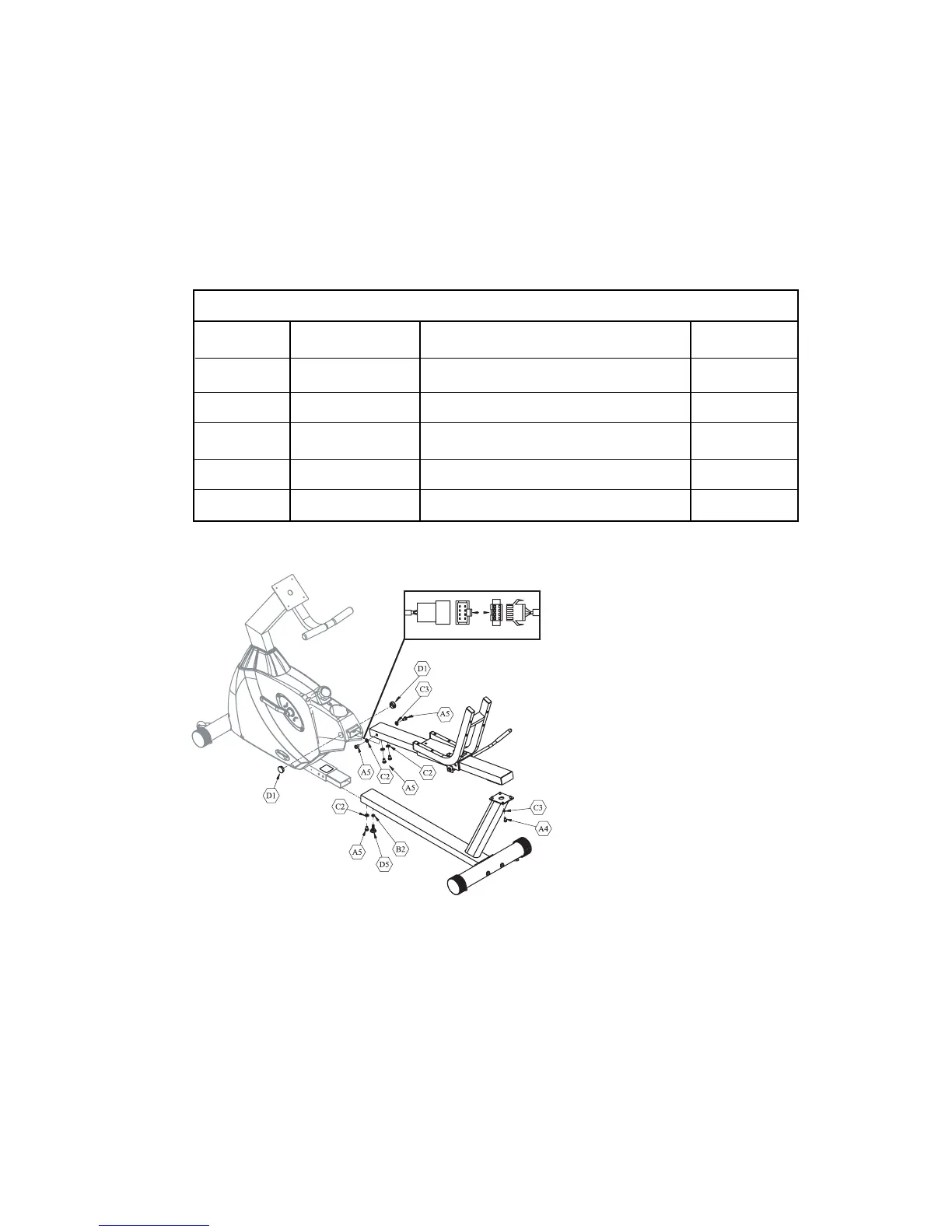

Step 4. Frame Assembly
Parts Required
Seat Rail
Base Frame
Hardware Required
Part # Size Description Quantity
A-4 M8 * 16 Dome Head Allen Screw 4
A-5 M10 * 16 Dome Head Allen Screw 8
B-2 3/8 Hex Nut 1
C-2 M10 Flat Washer 8
C-3 M8 Spring Washer 4
D-1 Round Plastic Plug 2
Base Frame
1. Locate the hardware bag for Step 4.
2. Tip the cycle on its nose so that it balances on the front base and nose. Slide the bottom
of the frame over the front base.
3. Using the short 6 mm screws and flat washers hand tighten each of the 4 outside screws
with large washers.
4. Install the leveling foot in the center hole on the base joint. Make sure the 3/8 hex nut is
installed on the foot and screw the foot all the way into the center base hole.
Note: After the frame is completely assembled and the cycle is located to begin your work
outs, adjust the foot so that it just touches the floor
