LifeSpan E2i - Base Assembly

26
Assembling Your Elliptical

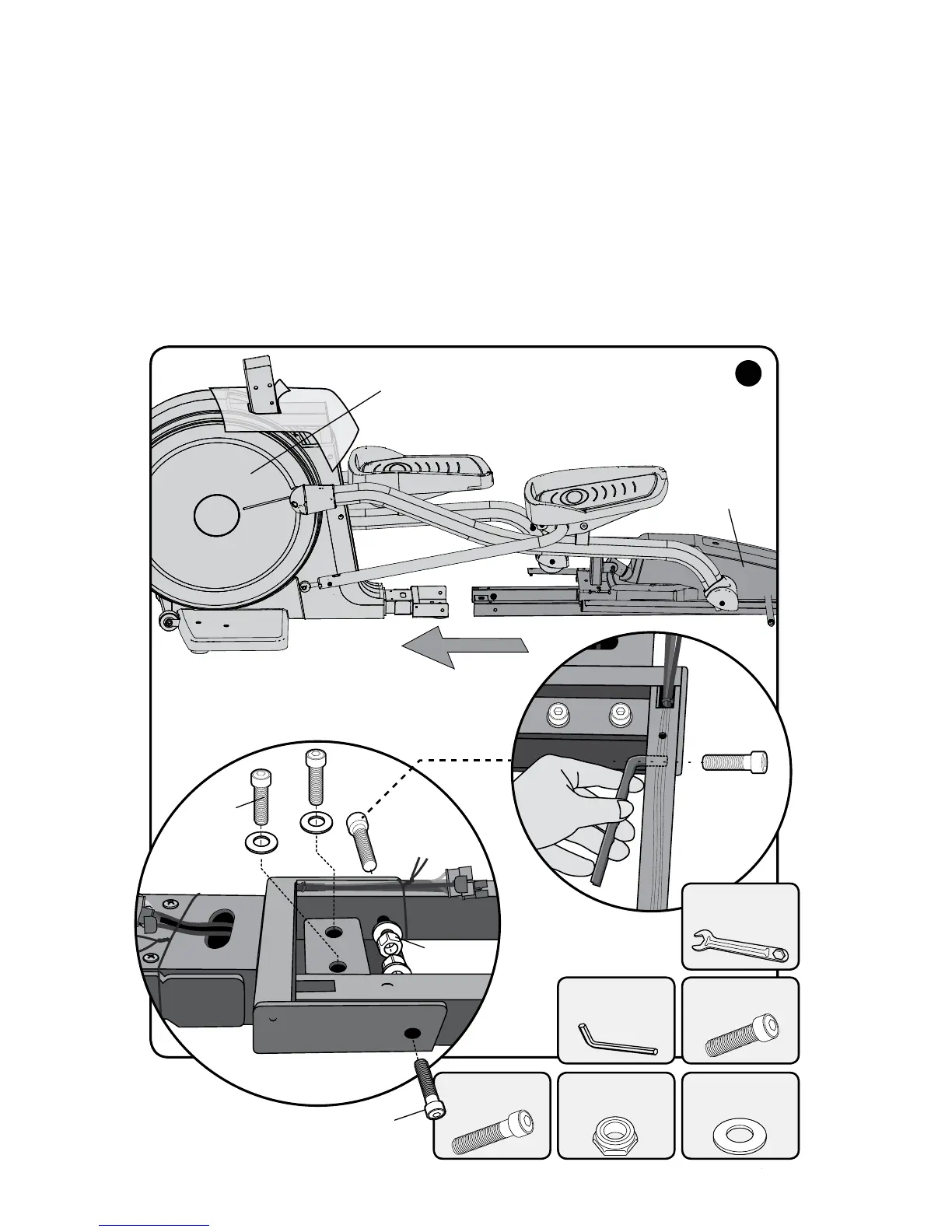

Step 3: Base Assembly
A. Slide the Ramp Base (2) into the Main Base (1) and bolt together using
two M8x35L Bolts (14), Washers (13) and two M8x45 bolts (11), Washers
(13), and Nylock Nuts (12). Help the bolt on the wire side of the frame go
easily through by pushing the wires partially back into the frame of the
Ramp Base (2) and using a 6mm Allen wrench to help push the cable
inside frame away from the hole. See illustration below.
6mm Allen
Wrench
13/17mm
Wrench
M8 Washer
(x4)
M8 x 35L
(x2)
M8 x 45L
(x2)
M8 Nylock Nut
(x2)
M8 X 45L
M8 X 35L
M8 Nylock
Nut
Wiring
runs inside
this side of
frame
Use allen
wrench to
help push
wiring out
of way for
bolt
Main Base
Ramp Base
A
