4. ASSEMBLY INSTRUCTIONS
STEP 1
A. Before assembly ensure there is enough space around the item.
B. Use the provided tools for assembly.

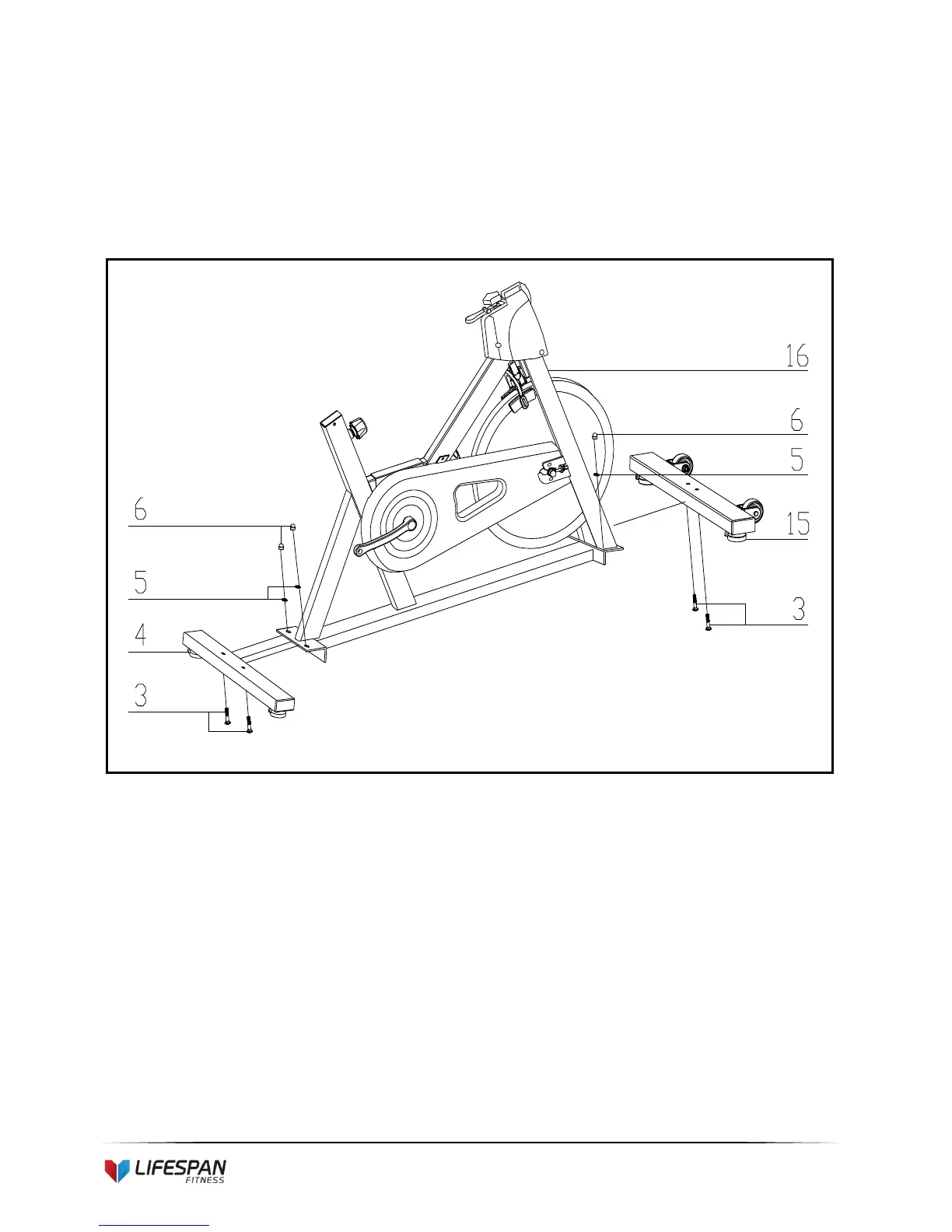

1. Remove the bolts and nut from the bottom tube
2. Attach the Front Stabilizer (pt.15) to the Main Frame (pt.16) using two sets of Ø8 Flat Washers (pt.5),
M8 Domed Nut (pt.6) and M8*42 Carriage bolt (3).
3. Attach the Rear Stabilizer (pt.4) to the Main Frame (pt.16) using two sets of Ø8 Flat Washers (pt.5),
M8 Domed Nut (pt.6) and M8*42 Carriage bolt (3).
