Lifetime 51544 - Assembly Procedures; Pole Assembly

14

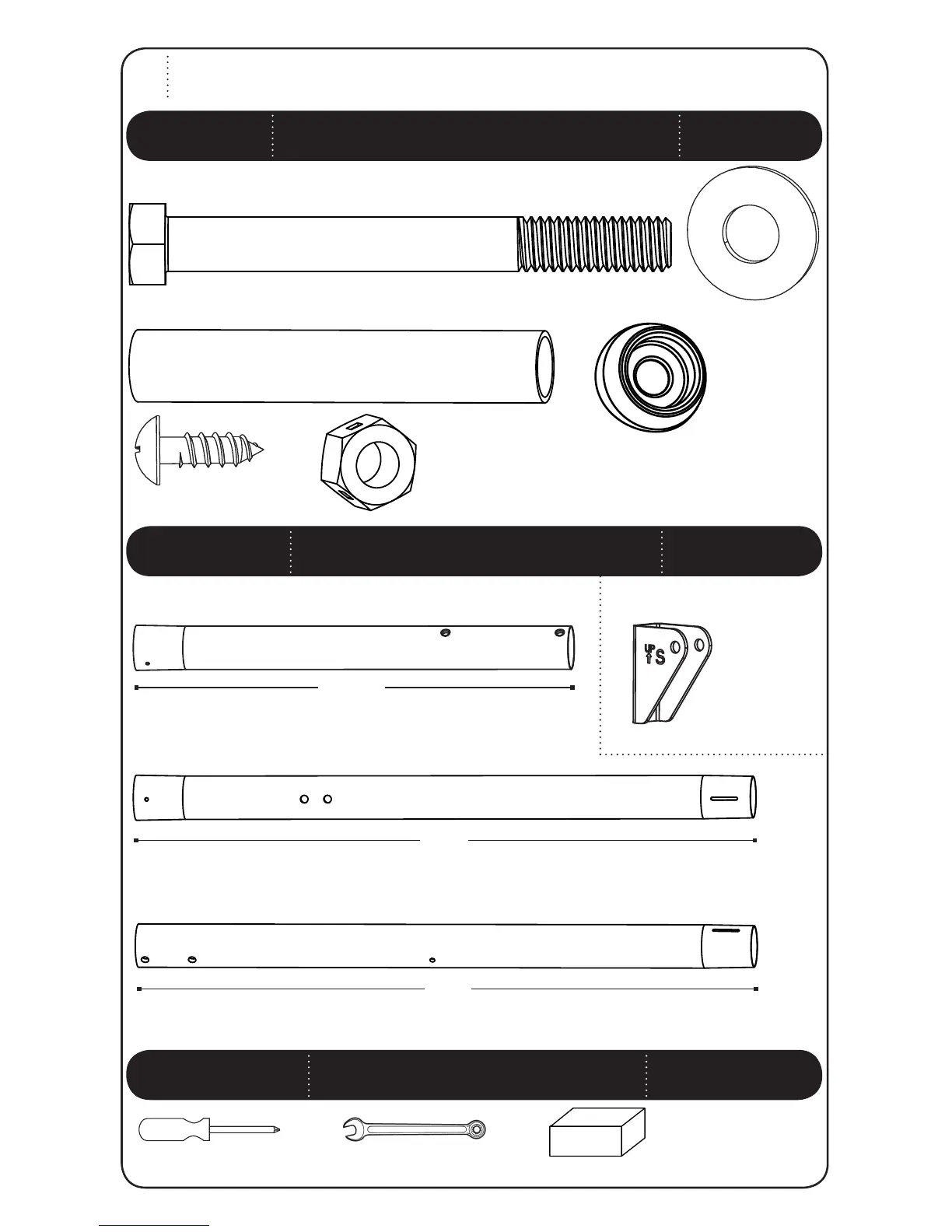

POLE ASSEMBLY
HARDWARE REQUIRED
PARTS REQUIRED
TOOLS REQUIRED
SEC
1
Parts shown at 10% of Actual Size
Phillips Screwdriver
Hardware shown at Actual Size
3CRAP7OOD
ADS (x2)
1/4” x 3/4” Screw
ALH (x1)
Top Pole
!,& (x1)
Middle Pole
ALE (x1)
Bottom Pole
30 1/2 ”
43 ”
43 ”
7ARNING3TICKERAPPLIEDTOSIDENOTSHOWN
!!& (x2)
3/8” Washer
ABB (x2)
3/8” Centerlock
Nut
ABH (x2)
3/8” x 3 1/2” Hex Bolt
ADA (x2)
1/2” x 2.91” Spacer
v7RENCH (x2)
Part shown at 25% of Actual Size
ALL (x1)
Pole Bracket
CIH (x2)
Domed Countersink Washer
