Lifetime 51544 - Pole to Base Assembly

19
!*- (x1)
Base
ALI (x2)
Pole Brace
!*# (x1)
1/2” x 15 3/4” Axle
AMU (x2)
Wheel
15 ”
3/4
7”
!*% (x1)
1/2” x 7” Axle
Parts shown at 10% of Actual Size
Part shown at 25% of Actual Size

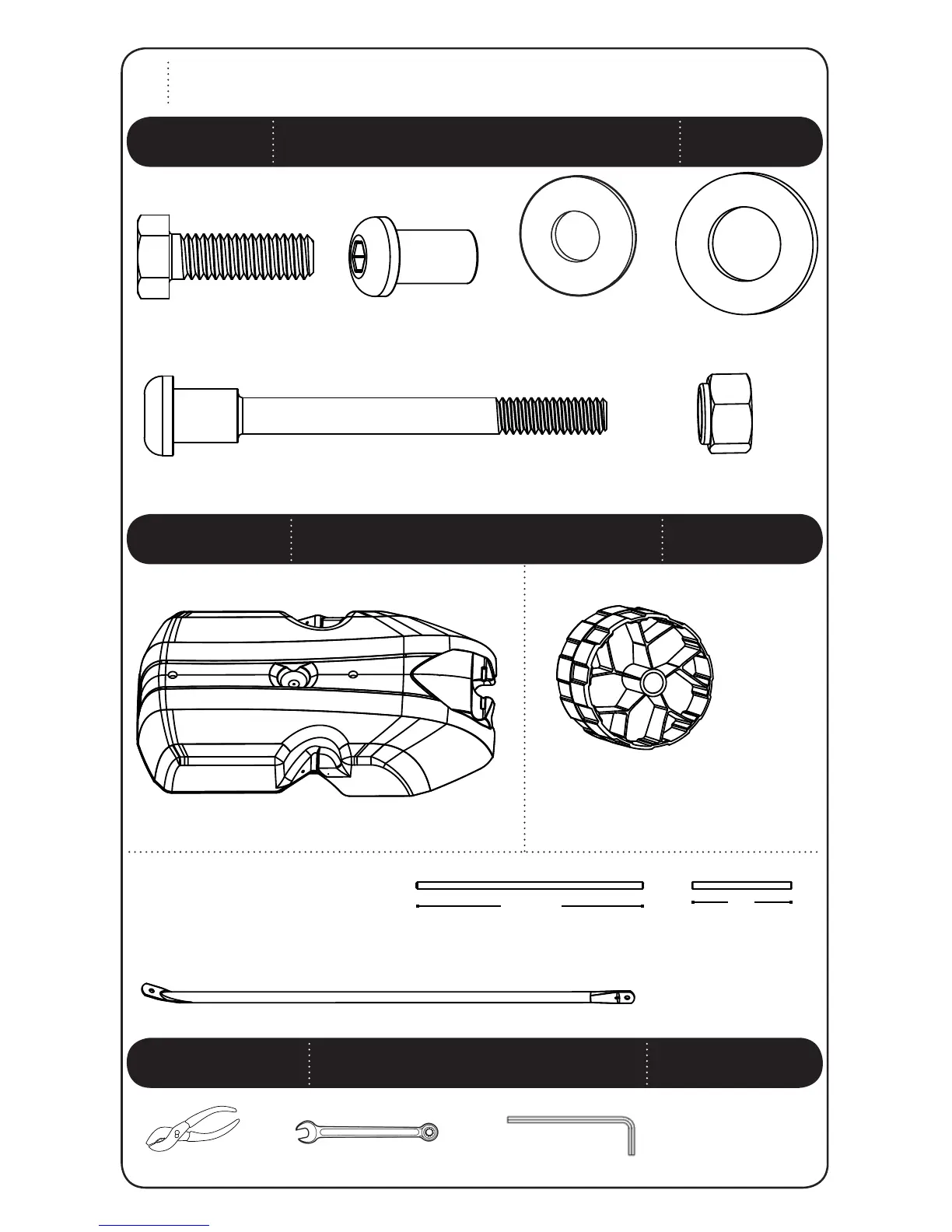

POLE TO BASE ASSEMBLY
HARDWARE REQUIRED
PARTS REQUIRED
TOOLS REQUIRED
SEC
2
Parts shown at 5% of Actual Size
Hardware shown at Actual Size
ABN (x2)
1/2” x 1/8” Spacer
AAE (x2)
5/16” x 1” Hex Bolt
AAO (x2)
5/16” Nylock Nut
BTS (x1)
1/4” Barrel Nut
ABD (x4)
5/16” Washer
BZO (x1)
1/4” x 3” Shoulder Screw
Pliers
7RENCH (x2)
3/16” Allen
7RENCH (x2)
