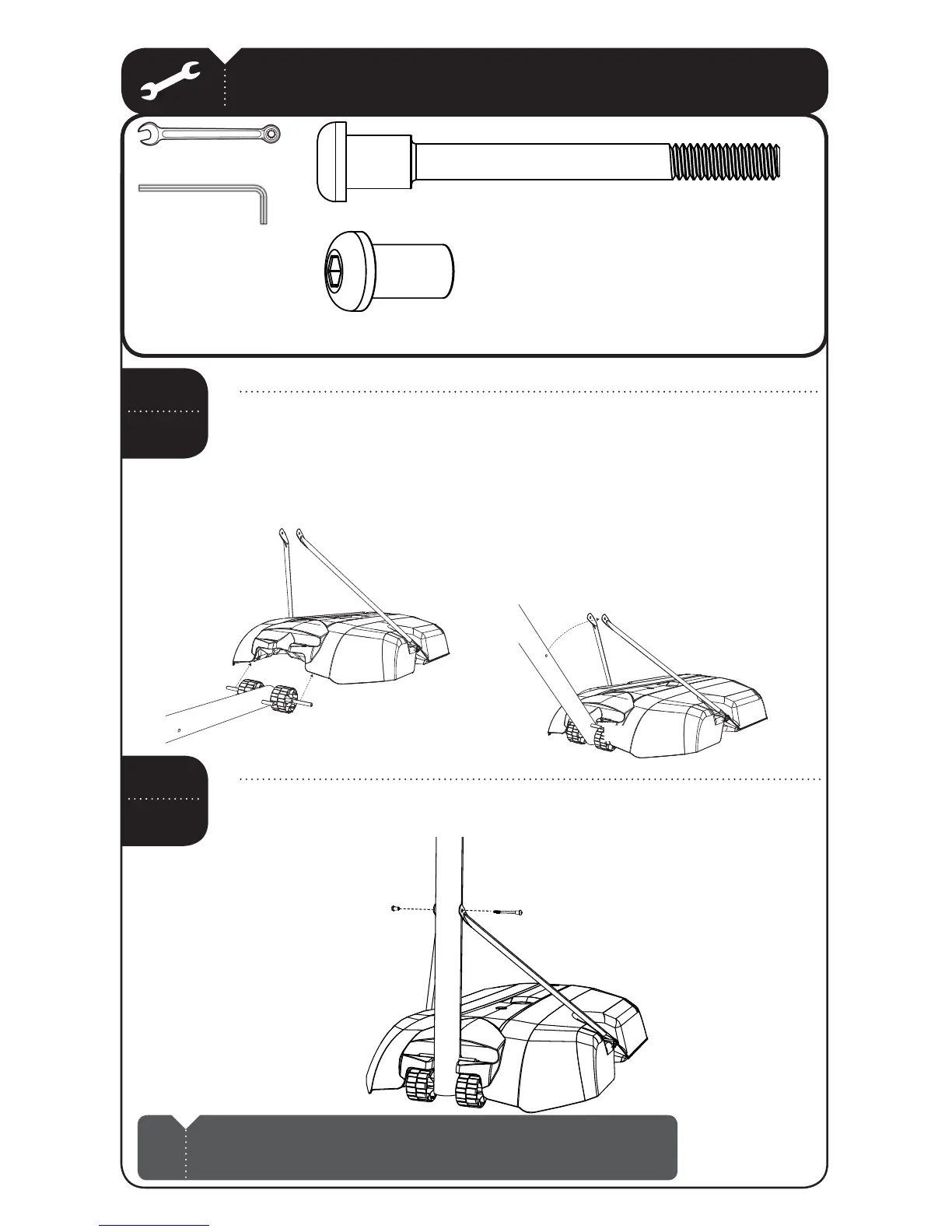

TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
Place the Pole assembly on the ground with the 7ARNING3TICKER!-4 on
the -IDDLE0OLE!,& facing down. Position the vXv!XLE!*# under
the bottom slots of the "ASE!*- as shown, and step onto the Base so the
Axle snaps into the slots. Then rotate the Pole assembly upward so that
the vXv!XLE!*% snaps into the upper slots of the Base as shown.
SEC
2.3
!*#
!*-
BTS (x1)
1/2" (x2)
!*%
!*-
BZO (x1)
Attach the Pole Braces (ALI) to the Bottom Pole (ALE) with the hardware
shown, and tighten all Pole to Base assembly hardware.
SEC
2.4
BTS
BZO
ALE
ALI
Note: Tip the system backward so the Pole rests on the ground. Do not stand
the system up until it is fi lled with either sand or water later in the assembly.
!
3/16" (x2)
