1. Overview 2. Installation
3. Optional
Installation
4a. INSTALLING AND WIRING
ELECTRICAL POWER
There are two methods of providing power for the Topcat.
1. New Construction Installations: connect directly to the building’s AC mains.
2. Retrofit situations: wire to the building mains or order the optional extension
cable (Part #DCPEX-NA in U.S. and Canada; DCPEX-INT outside U.S. and
Canada).
SUPPLY POWER TO THE SELECTED LOCATION
WARNING! USE A LICENSED ELECTRICIAN FOR POWER
CONNECTIONS.
The Topcat System uses standard 100 – 240VAC power. Obtain the services of a
licensed electrician when supplying and connecting power to the Topcat chassis.
Be sure electrical installation complies with local building codes. Improperly
installing and /or connecting power to the system may result in EQUIPMENT
DAMAGE, serious INJURY and/or DEATH.
When routing power to the Topcat, avoid interference with lighting and other
noise possibilities.
CAUTION:
These servicing instructions are for use by qualified service personnel only. To
reduce the risk of electric shock, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so.
Wire AC power to the Topcat as follows:
a. Turn off the circuit at the main breaker. Attach the electrical wiring to the
Topcat ceiling module as shown.
b. Find the power conduit hole on the Topcat back can and remove the plastic
plug. Insert the mains electrical wire through the hole.

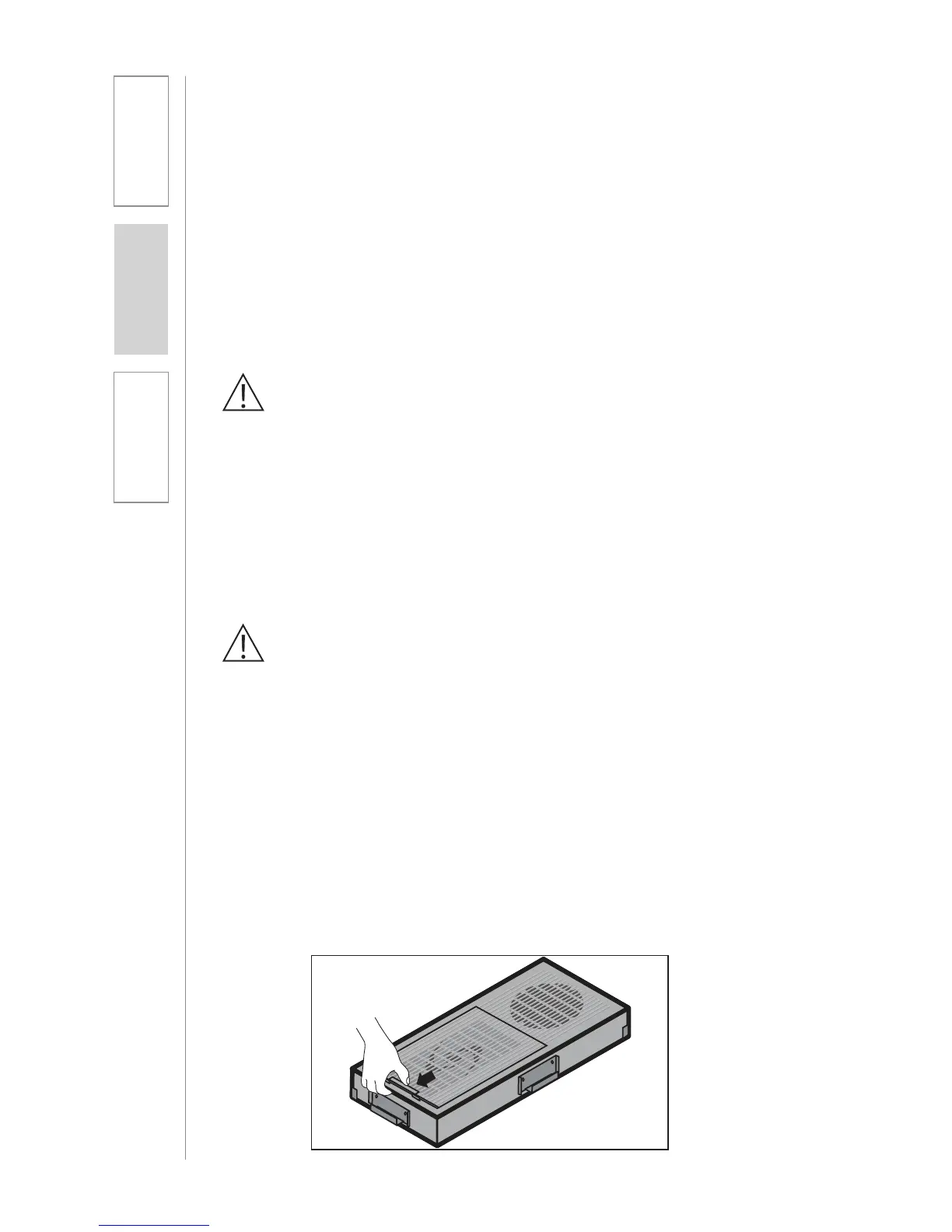

c. Find and open the front panel door on the Topcat by sliding the door toward
the end of the Topcat to disengage the lock. (See figure 1)
Figure 1
